Goldpro® AB-100-4 Manual Plastic Injector Molding Machine with Reinforced Base

Goldpro® AB-100-4 Manual Plastic Injector Molding Machine with Reinforced Base

Location:Pawtucket, RI

or
Call 1-800-619-GOLD

Description

AB-100 PLASTIC INJECTORSTANDARD EQUIPMENT INCLUDES:

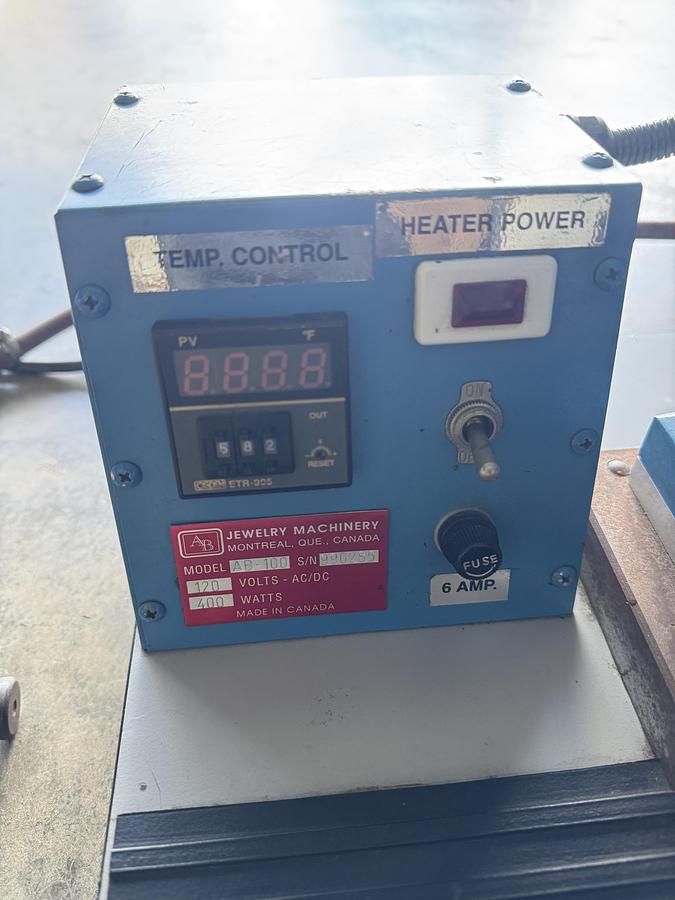

  • DIGITAL TEMPERATURE CONTROLLER
  • TRANSPARENT SAFETY SHIELD
  • EASY VIEW LARGE HOPPER ASSEMBLY
  • AIRCRAFT SPEC ALUMINUM BODY INSULATED TO PREVENT HEAT LOSS THROUGH MAIN FRAME


  • Easy to read & adjust digital temperature controller
  • Aircraft spec. aluminum body
  • Easy view material hopper
  • Stainless steel injection chamber & piston for corrosion resistance
  • All pneumatic devices are of the “no-lube” design; ideal for medical & other clean room applications
  • Working area protected by transparent safety-guard and safety red heat shield
  • Right & left hand operation
  • Mold stop and ejector
  • Quick acting clamp for easy operation
  • Hardened screw & bronze nut for long wear.


Show All

Specifications

ManufacturerAB Machinery
ModelAB-100
ConditionUsed
Serial Number990285
Stock Number779468
Clamp Force4,000 Lbs
Shot Capacity6 Grams (1/4 Oz)
Injection Pressure@125 PSI, 6333 PSI
Voltage120 Volts, 50-60 HZ
Heat Capacity400 Watts
Mold Height2.5"
Sprue Center Line7/8"
Overall Dimensions18" x 21" x 25" High
Weight71 LB
