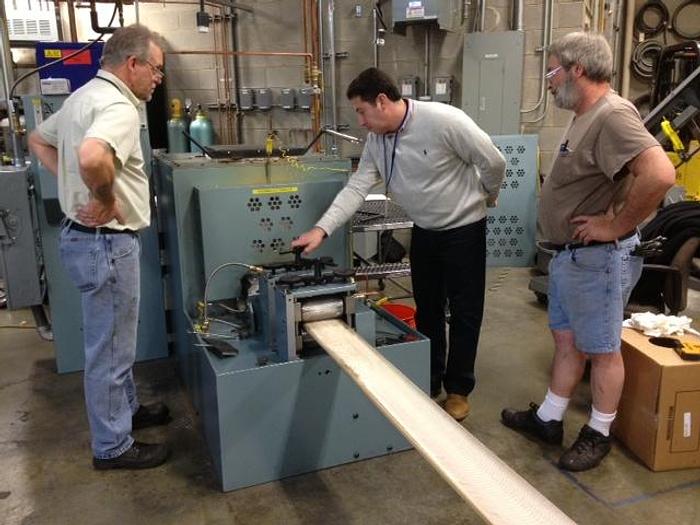

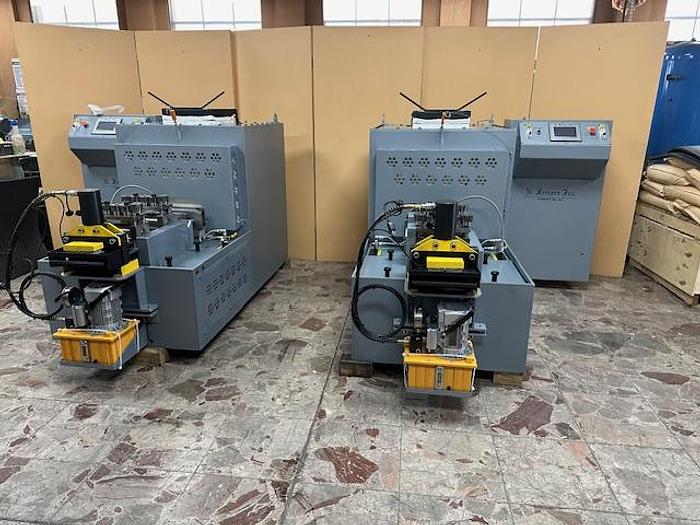

N. Ferrara Horizontal Continuous Casting Machine 50-Kg
N. Ferrara Horizontal Continuous Casting Machine 50-Kg
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Specifications
| Manufacturer | N Ferrara |
| Model | 50-KG-1 |
| Year | 2025 |
| Condition | New |
| Stock Number | 779453 |
| Crucible Size | 50 KG |
| Maximum Casting Capacity | 4" (100mm) |
| Output Capacity | 50 KG PER HOUR |
| Voltage | 208 / 220 / 240 50-60 CY. |
| Kw Power | 40 |
| Amps | 110 |
| Maximum Operating Temperature | 1260º C (2300º F) |
| Furnace Box | Heavy duty HR steel construction with removable top. |
| Heating Element | The heating element is constructed of silicone carbide. The element is designed to provide trouble free life. The element has a unique design the easiest and shortest way to replace. (normal replacement time is 15 min. with Furnace HOT) |
| Insulation | The furnace chamber contains multiple courses of high quality refractory and thermal efficiency. |
| Atmosphere Control | Internally the Furnace operates under atmosphere inert gas. This will minimize oxidation of graphite crucible and die. |
| Heat Zone | Multi Zone heating system for better heat curve accuracy. |
| Temperature | Microprocessor temperature control with time proportion and cycle rate calibrated for Type K thermocouple 0 to 2,300º F for close line control. (includes HI-Limit safety) |
| Panel Board | Will be equipped with all necessary switches and controls for efficient operation. The panel will be wired and instruments will be tested before leaving our plant. |
| Cooling System | Cooling system specially designed pressure less cooling chamber including prevision flow meter control to monitor accurately the cooling and water temperature gauges with micro-processor control to activate the alarm system. Water pressure control is also interfaced with the alarm system. |
| Withdrawal System | The withdrawal mechanism is designed with mechanical and hydraulic interface. The motor drive is controlled electronically with processor pulse. |
| Crucible | Manufacture from high purity. Graphite is machined to precision tolerance. |
| Dies | Casting Dies are precision manufactured from high density graphite. |
| Overall Dimensions | 60" L x 40" W x 48" H |
| Estimated Weight | 2800 lbs. (1270 kg) |
