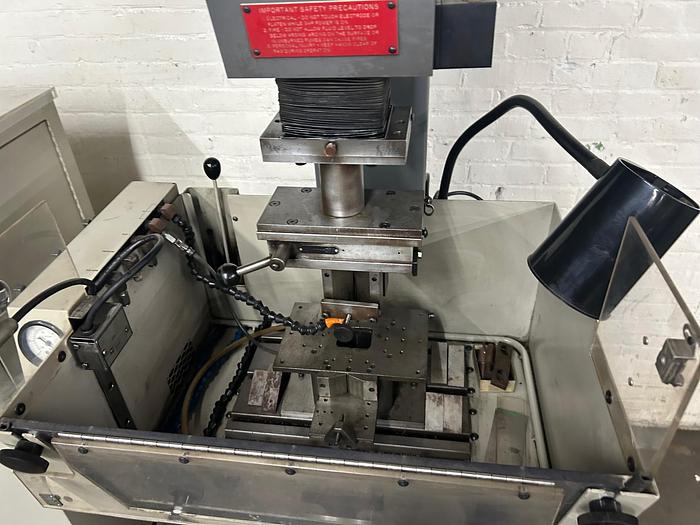

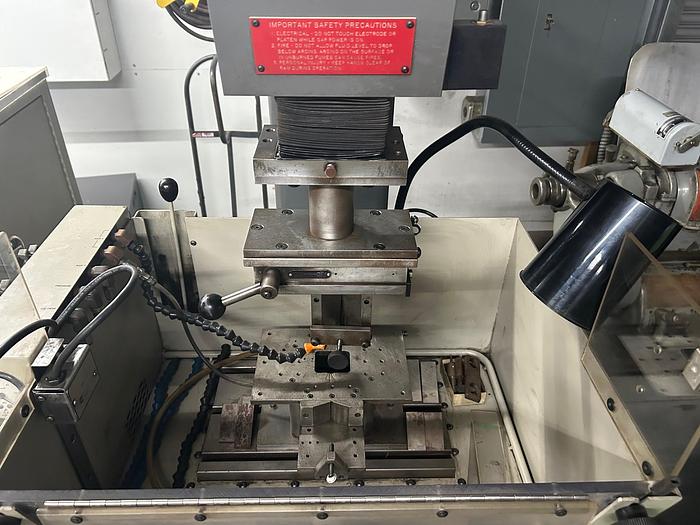

Hansvedt EDM CS1 Workman/201 Electrical Discharge Machine Ram EDM System

Hansvedt EDM CS1 Workman/201 Electrical Discharge Machine Ram EDM System

Contact us for price

Location:Pawtucket, RI

orCall 1-800-619-GOLD

Description

  • Type: CS-1 WORKMAN
  • voltage 110/220 1ph 60 cycle
  • Positioning Table Travel: 6" x 8"
  • Worktable Size: 9" x 15"
  • Worktank Size: 16" x 24" x 11"
  • Platen to Table Distance: 18" Max
  • Ram Travel: 8"
  • Platen Size: 5.75" x 4"
  • Max Electrode Weight: 75 LBS
  • Max Workpiece Weight: 200 LBS


Equipped With:

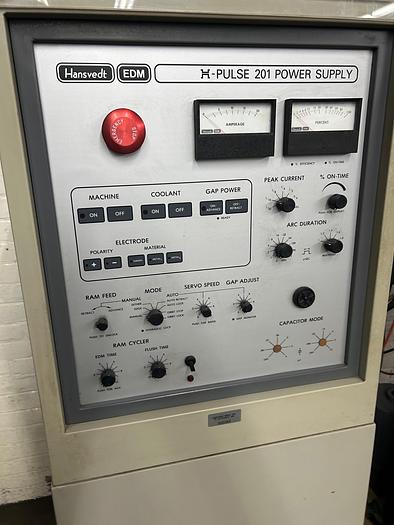

  • Hansvedt H-Pulse 201 20 Amp Power Supply
  • Work light ,Tooling, mounting plates as photographed

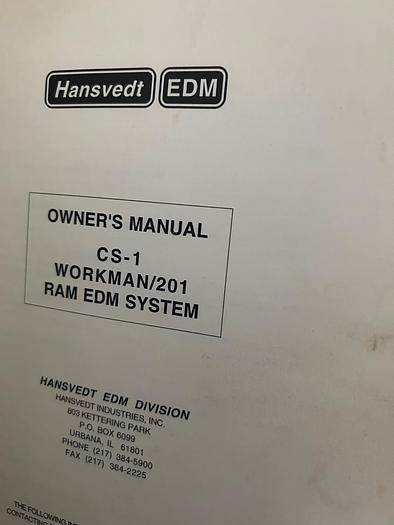

  • Original owners manuals
  • Extra Filter

Specifications

ManufacturerHansvedt
ModelCS1 Workman
ConditionUsed
Stock Number779434
* TypeCS-1 WORKMAN
* Positioning Table Travel6" x 8"
* Worktable Size9" x 15"
* Ram Travel8"
* Platen Size5.75" x 4"
* Max Electrode Weight75 LBS
* Max Workpiece Weight200 LBS
