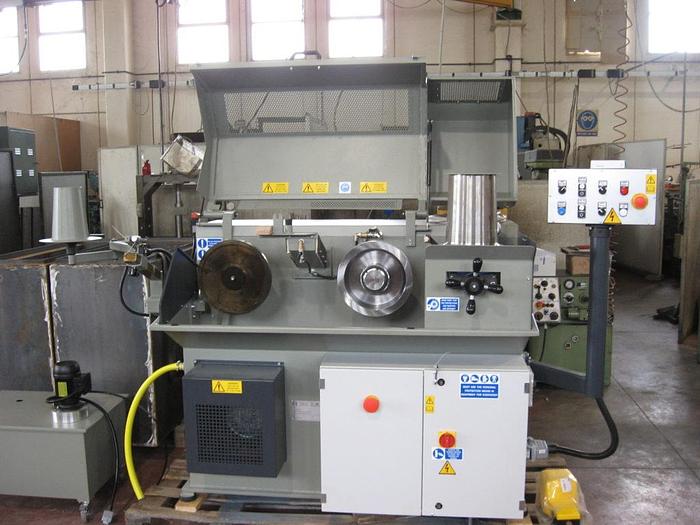

NEW TVN Mod. T10/S Ten (10) Passages Wire Drawing Machine, max wire 5mm
NEW TVN Mod. T10/S Ten (10) Passages Wire Drawing Machine, max wire 5mm
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Scroll Down To See Video!
Special multiple passages wire-drawing machine for wire 5 mm diam. with patented clutch winch allows the finest adjustment for any type of thread in operation. The machine has two speeds, foot-control, rotating protection on the working place and standards control (continuous control with low protection and foot-control with high protection).
Forced lubrication on the wire-drawing plate and on the coiler with decantation and recirculation system.
Coiler 300 mm diam. on the last passage.
Wire input 5 mm diam. on the 6° passage.
Drawing speed 100/40 mt.l1'.
Installed horse power 7.5/6 KW.
Power supply 380 V. 50 HZ. Three-phase.
Dimensions:
Length 2000 mm
Width 900 mm
Height 1130 mm
Approx. Weight 1400 kg
Availability:
Ex-Factory, Italy
Check the latest exchange rate
Specifications
Condition | New |
Stock Number | t10-s |
Price Starting at | €POR |
Packing | € 800,00 |
