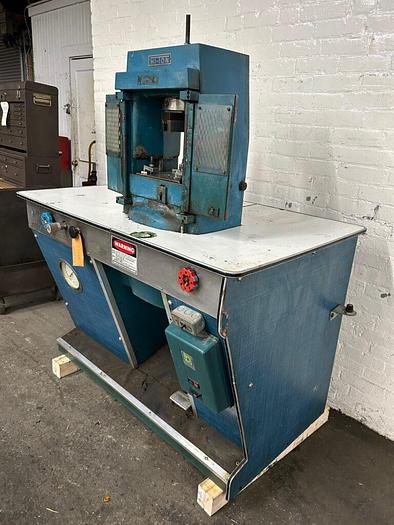

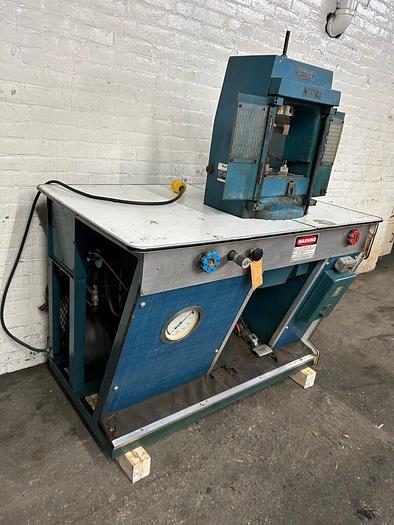

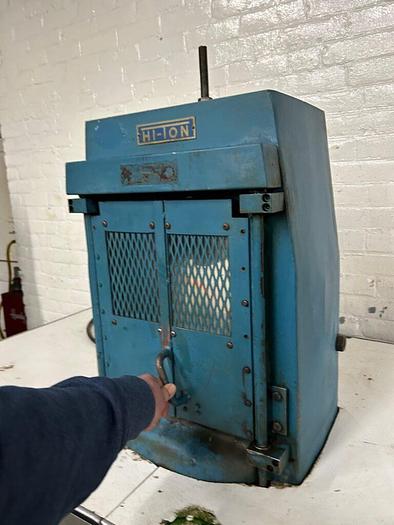

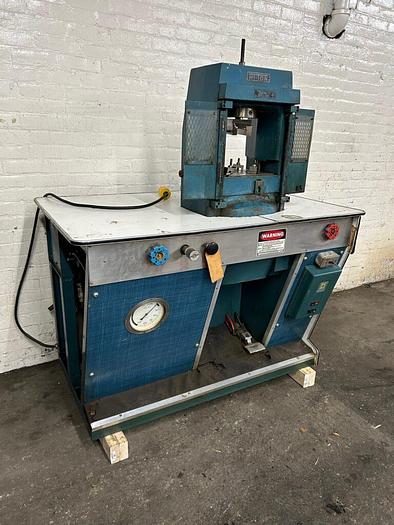

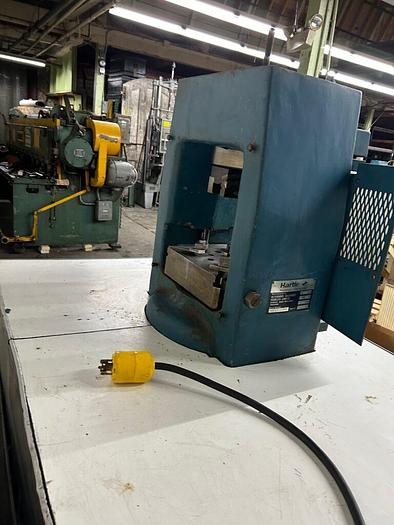

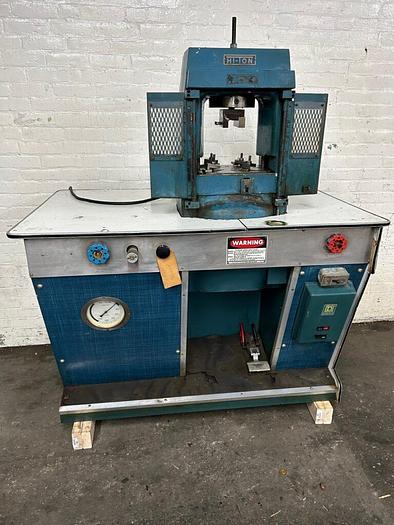

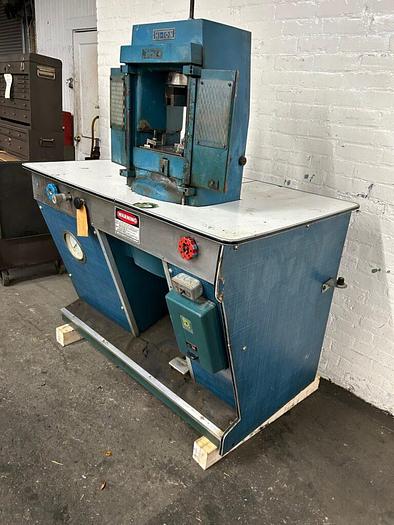

5292-220 Hi-Ton 250 Ton Capacity Hydraulic Coining Press for Coins, Medals, Medallions & More
5292-220 Hi-Ton 250 Ton Capacity Hydraulic Coining Press for Coins, Medals, Medallions & More
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

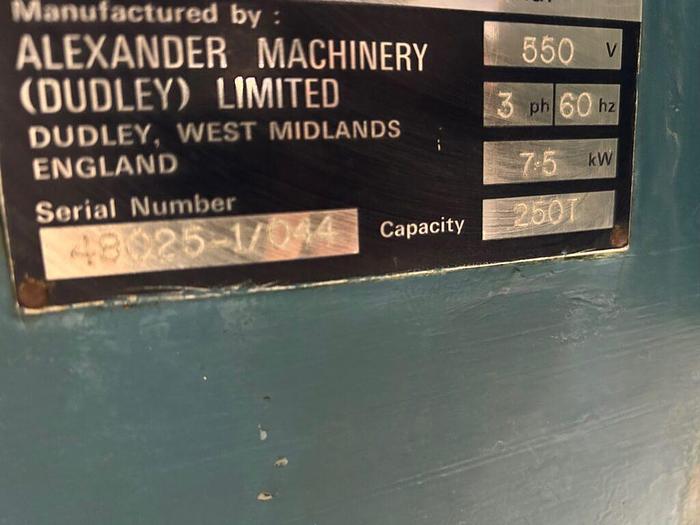

550 volt / 3ph / 60 cycle
Minimum working load; 25 Tons
Strokes per minute: 14 (based on approach distance of 40mm impression depth of 0.5mm at maximum load)
Equipped With:

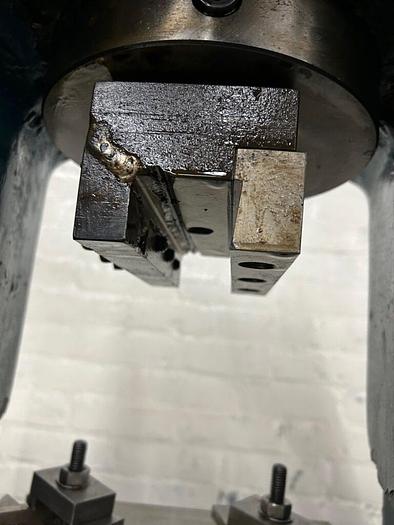

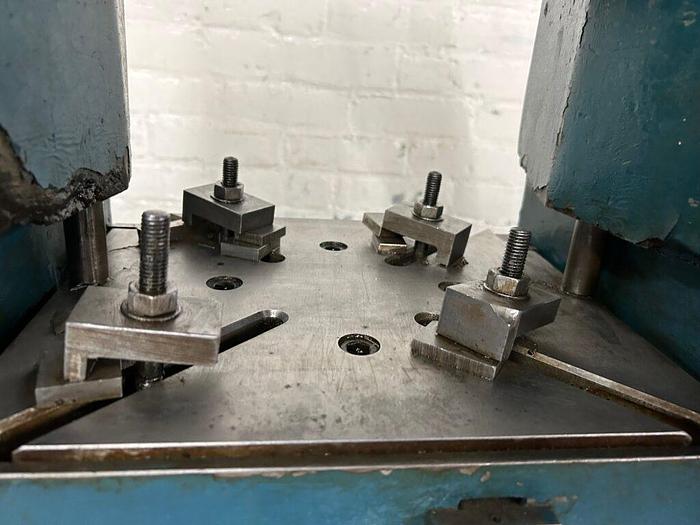

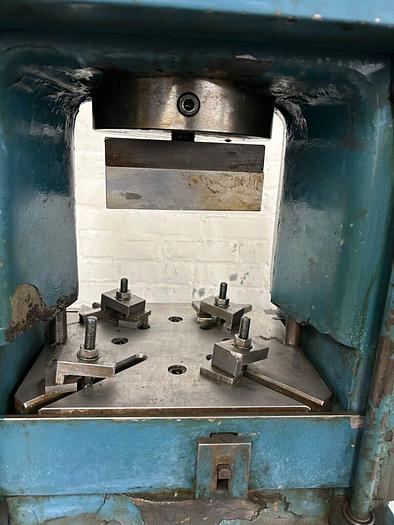

T-slotted die mounting table

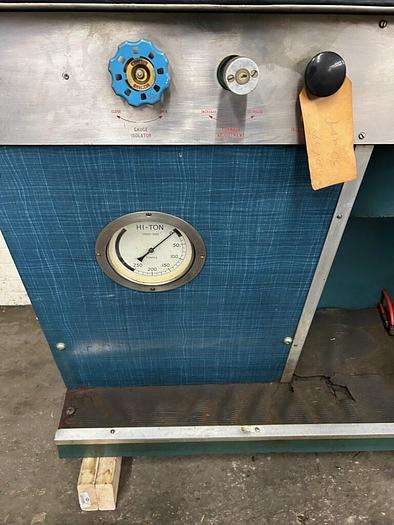

Pressure selection gauge

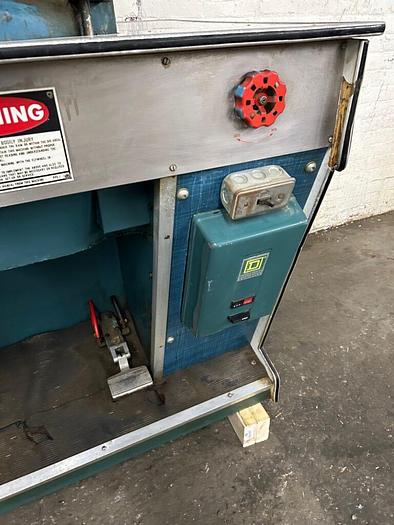

Foot pedal
Specifications
Condition | Used |
Stock Number | 5292-220 |
Maximum working load | 250 Tons |
Stroke of platen | 50mm |
Maximum daylight | 230mm |
Maximum effective width of platen | 200mm |
Depth of platen(front to rear) | 250mm |
Height of work table | 900mm |
Height of platen above work table | 160mm |
Locating bore in top plate | 25mm |
Motor power | 7.5 KW |
Platen approach force | 180 Kg (Approx) |
Hydraulic oil capacity | 100 Liters |
Approach speed pf platen | 50 mm/sec. |
Pressing speed of platen | 2.5 mm/sec. |
Return speed of platen | 60 mm/sec. |
Floor area of machine | 1370 x 890mm |
Weight of machine | 800 KG |
Motor | 12HP / 7.5Kw 1730 RPM |
Estimated crated size | 60" x 42 x 60"H |
