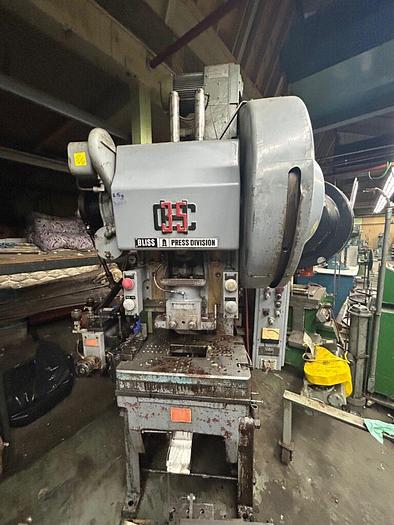

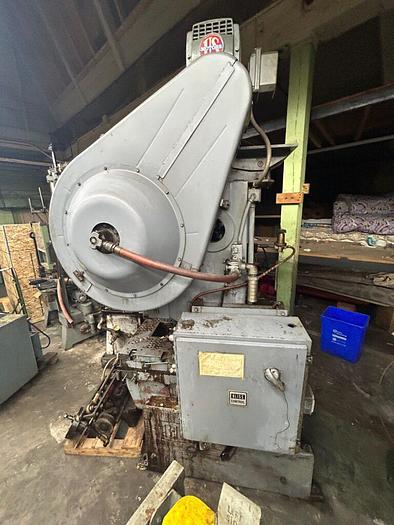

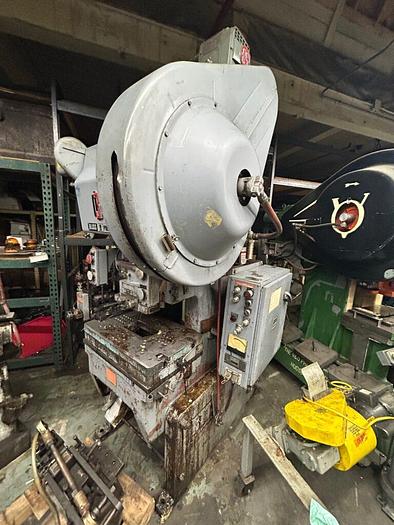

5288-230 Bliss 35 Ton OBI Single Crank Flywheel Power Press, Model CH 35 W/ 6″ Peterson Roll Feed
5288-230 Bliss 35 Ton OBI Single Crank Flywheel Power Press, Model CH 35 W/ 6″ Peterson Roll Feed
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
220-440 / 3PH /60 cycle
Equipped With:
Air clutch
Air brake

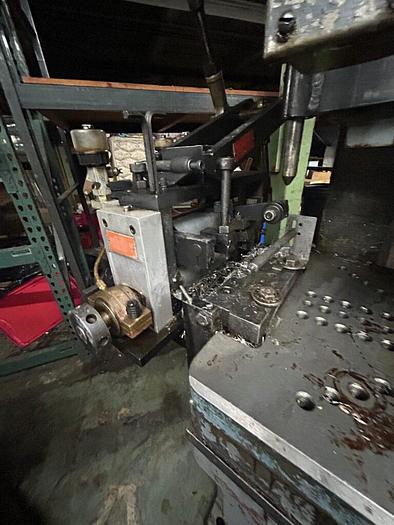

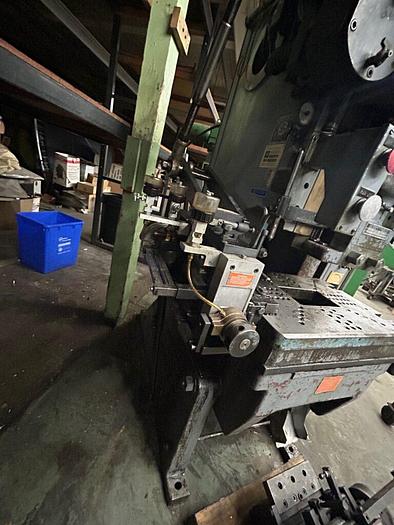

6" Peterson roll feed
Vari-speed drive
Specifications
| Condition | Used |
| Stock Number | 5288-230 |
| Stroke | 1-1/2" |
| Rated capacity | 35 tons |
| Shut height | 12-1/4" |
| Bed size | R-L= 26", F-B= 17" |
| Ram area | R-L= 13", F=B= 9" |
| Slide adjustment | 2-1/2" |
| Opening through back | 12" |
| SPM | 100 to 300, variable |
| Motor | 5 HP |
| Overall dimensions | 60" x 60" x 80" high |
| Estimated weight | 5400 lbs. |
