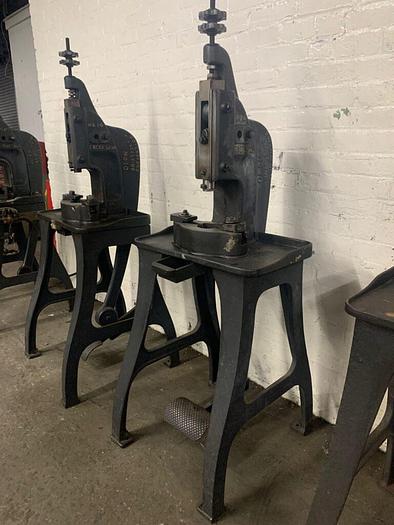

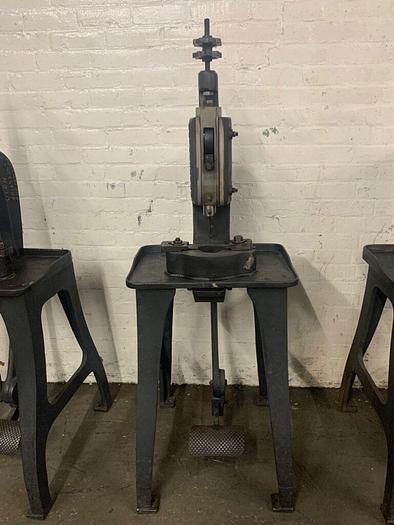

5904-510 Royersford Excelsior #10 / Famco, Metalworking, Forming & Stamping Punch Press / Foot Operated 2.5 Ton Kick Press

5904-510 Royersford Excelsior #10 / Famco, Metalworking, Forming & Stamping Punch Press / Foot Operated 2.5 Ton Kick Press

Contact us for price

Location:Pawtucket, RI

orCall 1-800-619-GOLD

Description

Capacity: in soft steel: 1/2" Equipped With: Adjustable stroke Cast Iron Base Foot operated Pedal Qty-2 Hold Downs Jewelry / Part Catch pan About Section: Famco bought out Royersford Excelsior, current day manufacturer. The machine is capable of many custom applications with the correct die / punch / trimming set including stamping, trimming, custom Mechanical Metalworking fabrication applications for the tool room . Blacksmith, Jeweler and artisan home shop. Recently taken from service out of a local tool and die shop Providence R.I. Now located at Gold Machinery 136 Newell ave Pawtucket 02860. The machine has been inspected / tested here at our facility and is offered in excellent condition! Tooling, Die dish and Shank holders are available at additional cost please inquire with your specific needs. Including 5/8”Shank holder...Priced @ $100 each ½” shank Shank holder....Priced @ $100 each 3/8” shank Shank holder....Priced @ $100 each Die dish.....Priced @ $150 each We will pallatalize and strap and cover Priced @ $100. Shipping is additional or on your shipping account.

Specifications

ConditionUsed
Stock Number5904-510
Depth of throat from center of ram3"
Distance ram to base6"
Maximum stroke2"
Bore in ram13/16" diameter
Size of table22" x 16"
Approximate pressure2-1/2 tons
Overall dimensions22" x 24" x 60" high
Estimated weight360 lbs.
