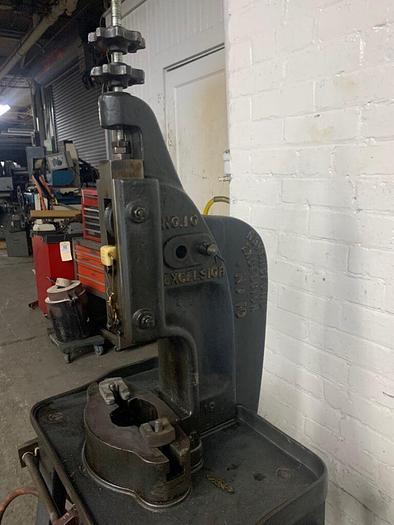

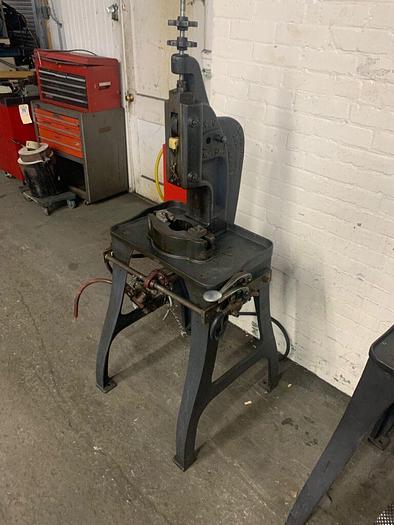

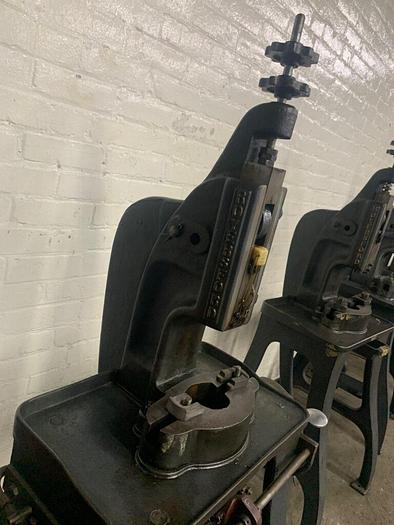

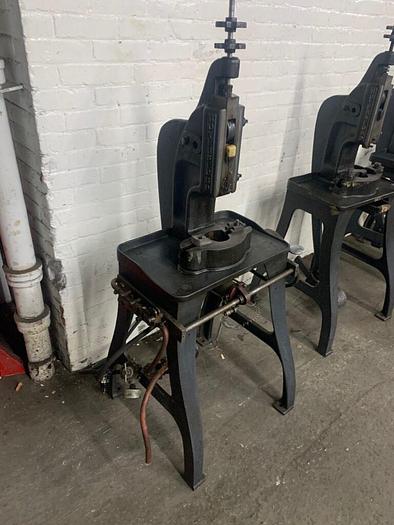

5903-510 Royersford Excelsior #10 / Famco, Metalworking, Forming & Stamping 2.5 Ton Pneumatic converted Punch Press
5903-510 Royersford Excelsior #10 / Famco, Metalworking, Forming & Stamping 2.5 Ton Pneumatic converted Punch Press
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Capacity: in soft steel: 1/2"
Equipped With:
Adjustable stroke
Cast Iron Base
Foot operated Pedal

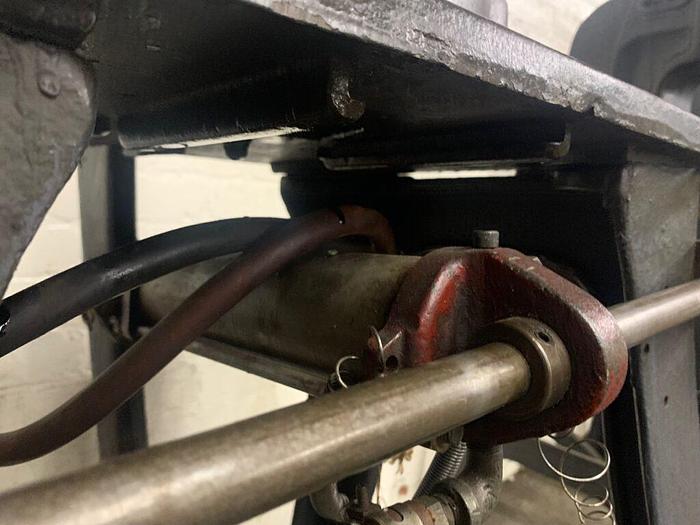

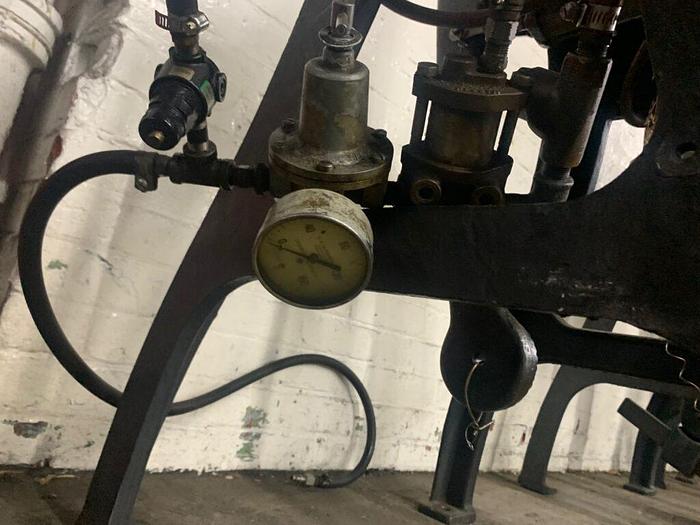

Pneumatic cylinder - Palm control and pressure regulator
About Section: Famco bought out Royersford Excelsior, current day manufacturer. The machine is capable of many custom applications with the correct die / punch / trimming set including stamping, trimming, custom Mechanical Metalworking fabrication applications for the tool room . Blacksmith, Jeweler and artisan home shop.
Recently taken from service out of a local tool and die shop Providence R.I. Now located at Gold Machinery 136 Newell ave Pawtucket 02860. The machine has been inspected / tested here at our facility and is offered in excellent condition!
Tooling, Die dish and Shank holders are available at additional cost please inquire with your specific needs.
Including 5/8”Shank holder...Priced @ $100 each
½” shank Shank holder....Priced @ $100 each
3/8” shank Shank holder....Priced @ $100 each
Die dish.....Priced @ $150 each
We will pallatalize and strap and cover Priced @ $100.
Shipping is additional or on your shipping account.
Specifications
Condition | Used |
Stock Number | 5903-510 |
Depth of throat from center of ram | 3" |
Distance ram to base | 6" |
Maximum stroke | 2" |
Bore in ram | 13/16" diameter |
Size of table | 22" x 16" |
Approximate pressure | 2-1/2 tons |
Overall dimensions | 22" x 24" x 60" high |
Estimated weight | 360 lbs. |
