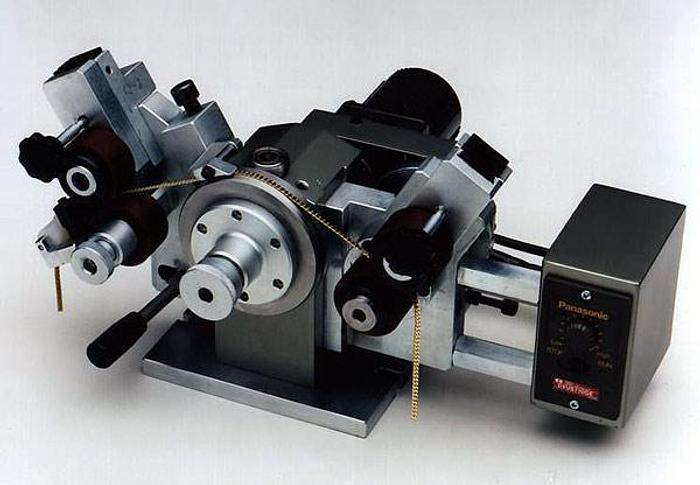

OMPAR RA961 – Universal Diamond Cutting Machine

Suitable to carry out decorations on flat and convex wedding-rings and bangles, medals and plates, chains, balls and various objects. The machine is complete with base, electric plant, service spanners and spare belts, CE 98/37 certification. Available both in manual or semi-automatic versions Models RA/961 OMC 1 horizontal head with 300 mm. short manual carriage, Eur 13.900,00 RA/961 VMC 1 vertical head with 300 mm. short manual carriage, Eur 10.600,00 RA/961 2MC 2 (horizontal + vertical) heads with 300 mm. short manual carriage, Eur 13.200,00 RA/961 OMM 1 horizontal head with 700 mm. medium manual carriage, Eur 11.000,00 RA/961 OML 1 horizontal head with 1000 mm. long manual carriage Eur 11.900,00 RA/961 VMM 1 vertical head with 700 mm. medium manual carriage, Eur 11.400,00 RA/961 2MM 2 (horizontal + vertical) heads with 700 mm. medium manual carriage, Eur 14.000,00 RA/961 2ML 2 (horizontal + vertical) heads with 1000 mm. long manual carriage, Eur 14.900,00 RA/961 ODM 1 horizontal head with 700 mm. medium motorized carriage, Eur 13.300,00 RA/961 VDM 1 vertical head with 700 mm. medium motorized carriage, Eur 13.700,00 RA/961 2DM 2 (horizontal + vertical) heads with 700 mm. medium motorized carriage, Eur 16.300,00 RA/961 ODL 1 horizontal head with 1000 mm. long motorized carriage, Eur 14.200,00 RA/961 VDL 1 vertical head with 1000 mm. long motorized carriage, Eur 14.600,00 RA/961 2DL 2 (horizontal + vertical) heads with 1000 mm. long motorized carriage, Eur 17.200,00 OPTIONS H. Spindle to table distance extension (min.100 max 500 mm.) Eur 2.800,00 D. Revolving dividing unit extension for 90° positioning Eur 448,00 L. Linear horizontal head descent (6 mm. stroke) Eur 1.120,00 P. Optical layer adjusting support Eur 644,00 C. Gauge meters on the heads Eur 336,00 Q. Gauge meters on the slides Eur 336,00 I. Inverter on the spindle (V7 CCB0 0P4) Eur 1.960,00 EQUIPMENT A. Revolving dividing unit for wedding-rings and bangles Eur 4.900,00 B. Motorized revolving dividing unit for wedding-rings and bangles Eur 10.220,00 C. Steel pincer c/w tie-rod for wedding-rings Eur 700,00 D. Steel pincer c/w tie-rod for bangles Eur 700,00 E. Set (22 pcs.) of reductions for outside wedding-rings Eur 770,00 F. Set (4 pcs.) of collets for outside of bangles Eur 504,00 G. Manual jerking 360°, 350 mm. revolving dividing Eur 3.850,00 H. Manual jerking 360°, 500 mm. revolving dividing Eur 3.950,00 I. 250 mm. Fixed vice Eur 2.100,00 J. 250 mm. Tilting vice Eur 2.450,00 K. Manual and continuous jerking dividing unit for chain Eur 6.230,00 L. Automatic jerking dividing unit for medals Eur 7.350,00 M. Dividing unit for medals with cam-closing of pincer Eur 2.380,00 N. Dividing unit for cuff-links and rings Eur 2.300,00 O. Brass pincer Eur 140,00 P. Dividing unit with vacuum platform Eur 2.240,00 Q. Lubricated Vacuum pump LB18 Eur 2.240,00 R. Revolving dividing unit for beads Eur 9.600,00 S. Chain step cutting device Eur 9.900,00 T. Chain tooling for step cutting device (1 per each chain size) Eur 470,00 U. Ice freezing plate 300×80 mm. c/w cooling plant Eur 11.200,00 V. Cutter c/with pincer diam.6 mm. Eur 970,00 X. 6-interchangeable tools-cutter Eur 1.510,00 Y. 4-tools cutter Eur 860,00 Z. 6-tools cutter Eur 910,00 1. Large ornament cutter Eur 700,00 2. Lapping cutter Eur 700,00 3. Head for stars c/w n.1 diam.tool for stars (how many tips to be specified) Eur 4.800,00 4. Centering jig/multi-diamond tools holder c/w optical layer Eur 4.250,00 5. Suction plant on the horizontal head Eur 3.200,00 6. Protection cover Eur 2.500,00 DIAMOND TOOLS A. 4,0 mm. lapping diamond tool (for lapping cutter) Eur 605,00 B. 150°/ 3 mm. roughing diamond tool (for lapping cutter) Eur 540,00 C. 150°/3,0 mm. diamond tool Eur 540,00 D. 180°/2,0 mm. diamond tool Eur 380,00 E. Diamond tool for stars Eur 540,00 F. Eccentric diamond tools (radius to be specified) Eur 400,00 G. 2,0 mm. concave/convex diamond tool Eur 470,00 H. 3,0 mm. concave/convex diamond tool Eur 560,00 I. 4,00 mm. P=0,20 satin-finished widia tool Eur 530,00 RA/961 Wooden case packing Eur 970,00 Ice freezing plant Wooden case packing Eur 600,00 DIMENSIONS & WEIGHTS: RA/961 350:Gross Dim.:Cm.135x100x178(H) – Gross weight Kgs. 470, Net weight Kgs. 340 RA/961 500:Gross Dim.:Cm.145x100x178(H) – Gross weight Kgs. 480, Net weight Kgs. 350 Ice freezing plant case: Gross Dim.:Cm.100x 90×138(H) – Gross weight Kgs. 240, Net weight Kg.150 Availability: Ex-Factory, Italy Price & Packing, See prices at top of page.Check the latest exchange rate
