OMPAR 115 / 89 – High Precision Diamond Cutting for Wedding Rings & Bangles
OMPAR 115 / 89 – High Precision Diamond Cutting for Wedding Rings & Bangles
$29,520 (USD)
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Suitable for diamond tool finishing on bangles, wedding rings, flat & convex rings, watch-cases & various non-ferrous parts. It is equipped with a high precision spindle holder head at changeable speed from 0 to 4000 rpm by means of frequency inverter, with a rapid-locking system for the pincers and a double crossed carriage driven by hand with micrometric stops. Complete with base, service spanners & spare belts. CE 98/37 certification.
230V / 50-60Hz / 1 phase
Accessories
Equipment - Reduction for Rings
Equipments
MULTIFIX turret, €890,00

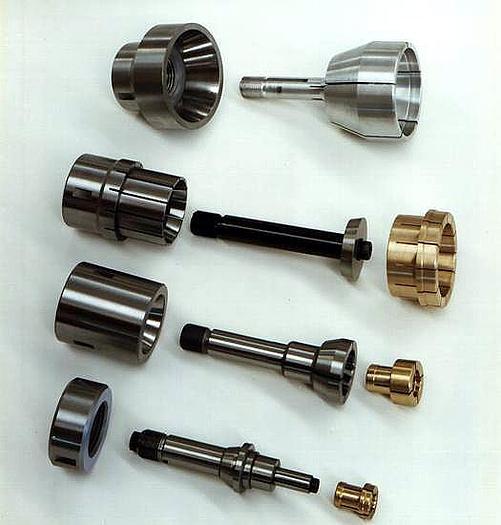

Complete tooling set for diamond-cutting inside/outside wedding-rings and bangles fitted with below, € 65460,00
pincer for outside wedding-rings c/w lock nut, €650,00

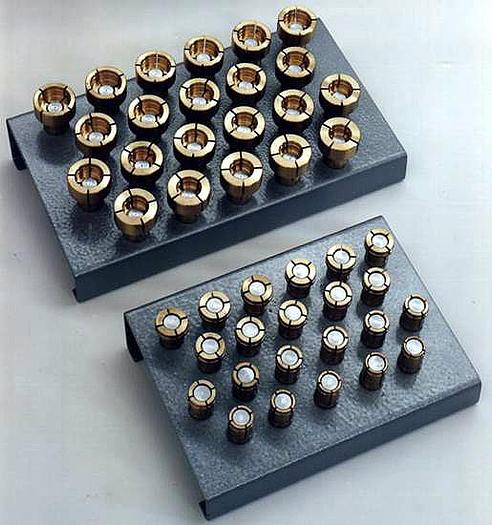

set of reductions for outside wedding-rings (22 pcs), €650,00
steel tie-rod with pincer-holder bell for inside of wedding-rings, €1.900,00
set of reductions for inside wedding-rings (22 pcs), €900,00
steel pincer c/w tie-rod for outside bangles, €850,00
set of collets for outside bangles (4 pcs), €680,00
steel tie-rod with pincer-holder bell for the inside of bangels, €1.950,00
set of aluminium pincers for inside bangles (4 pcs), € 680,00
Auto-centering spindle, €1.800,00
Liquid spray system c/w tank and switch, €1.950,00
Liquid tank, €520,00

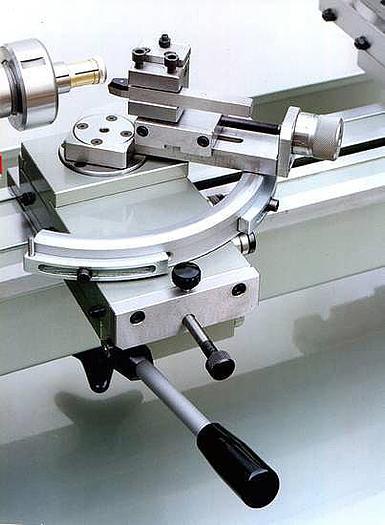

Radius Attachments, €5.400,00
Diamond Tools
4,0mm lapping diamond tool for outside cut, €500,00
3,0mm lapping diamond tool for inside cut and radius, €440,00
3,0mm lapping diamond tool for convex cut and outside radius, €440,00
Wooden case packing, €640,00
Availability:
Ex-Factory, Italy
Check the latest exchange rate
Specifications
Condition | Used |
Stock Number | 115-89 |
Gross Dimensions | 135 x 80 x 148(h) cm |
Gross Weight | 350 Kg |
Net Weight | 250 Kg |
