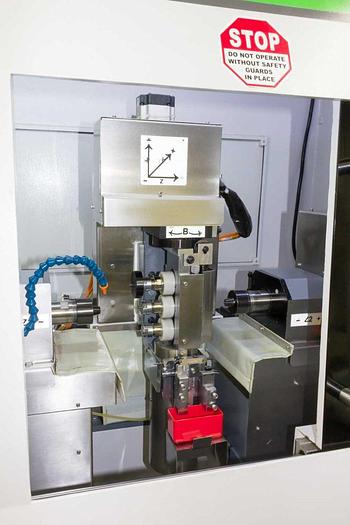

Solanki Soliyo Twin Spindle CNC Automatic Diamond Faceting Machine Model S4
Solanki Soliyo Twin Spindle CNC Automatic Diamond Faceting Machine Model S4
Location:Pawtucket, RI
Description

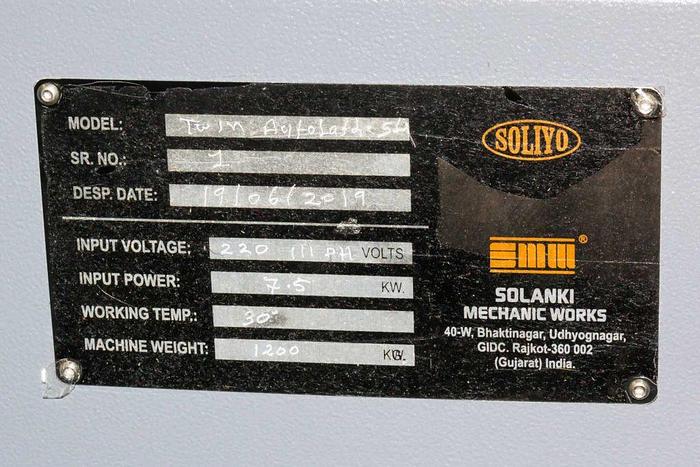

Manufactured by - Solanki Mechanic Works Work capacity: X-axis 175mm Y-axis 120mm Z-axis 110mm B-axis 190DEGREE Z1-axis 220mm Z2-axis 200mm Work feed: X- Axis 0-8000mm/min Y- Axis 0-8000mm/min Z- Axis 0-8000mm/min B- Axis 0-20000mm/min Z1- Axis 0-10000mm/min Z2- Axis 0-10000mm/min C1- Axis 0-600000mm/min C2- Axis 0-600000mm/min SP- Axis 0-360000mm/min Adjustable with Override 0-120% Machine actual dimension wooden box packing box Length 1992 MM 2092 MM Breathe 1675 MM 1775 MM Height 2020 MM 2120 MM Weight 878 KG 1100 KG

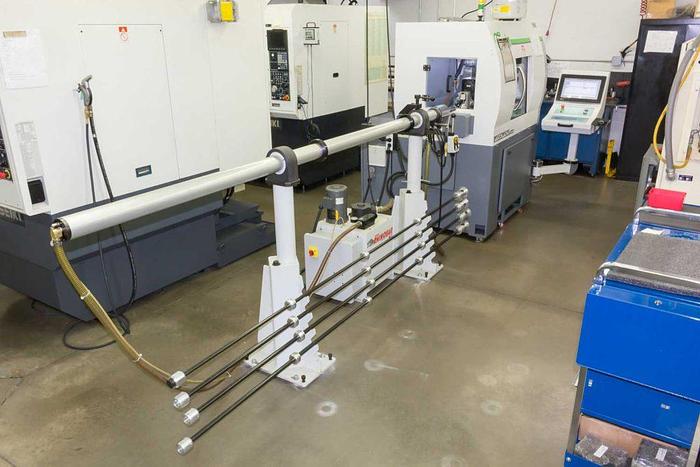

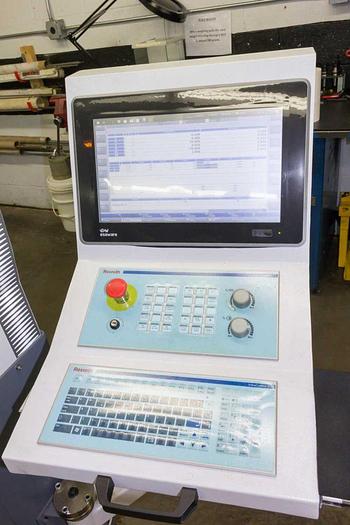

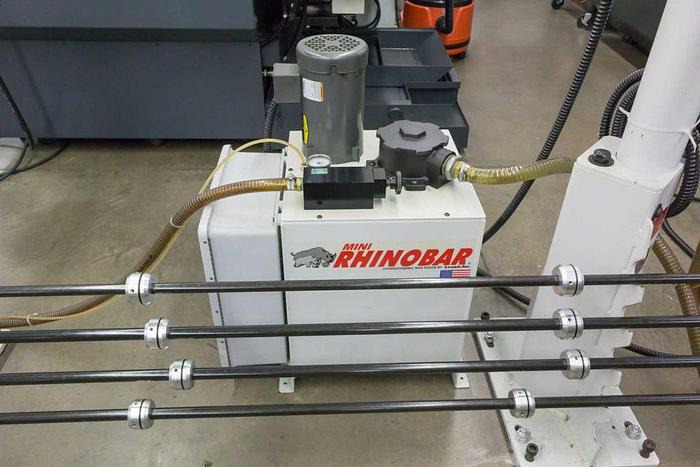

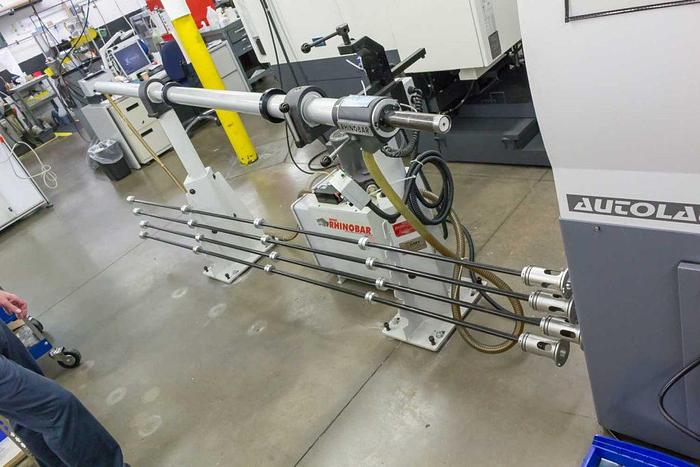

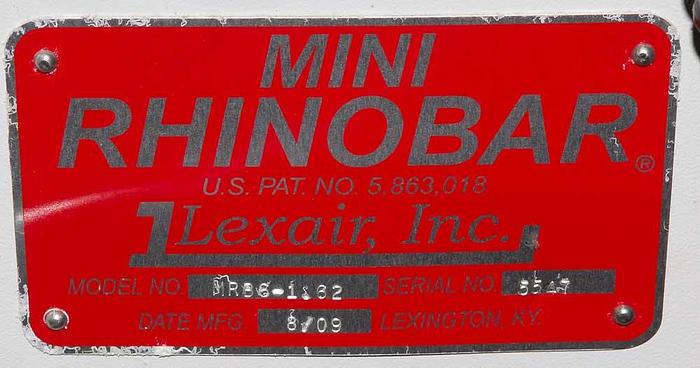

DESCRIPTION OF CONTROL PANEL: Display Alphanumeric keyboard (Editing/cursor key) Machine Control Panel CNC automatic diamond cutting capabilities for 5mm Round, Star, Marquise, Heart, Octagon, Square and Triangle shaped items Equipped With: Mini Rhinobar® Model Number MRB6 1.62 Bar Diameter Range 1/8" to 1-5/8" Maximum Bar Length 6' Motor 1 HP / 1725 RPM Electrics 208/220/440V, 3 phase Overall Length 11'
Specifications
| Manufacturer | Solanki |
| Model | S4 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 3568-110 |
| Max. power required | 5 kW |
| Main power | 220 3 phase |
| MCB | 32 amps 4 pole. |
| Cables | 4 core 6mm from main to MCB |
| SPINDLE SPEED | 10000 |
| SUB SPINDLE 1(C1) | 2000 |
| SUB SPINDLE 2(C2) | 2000 |
| Tool stake type | MANUAL |
| Collet type | ER-20 |
| Frequency | 1.667 Hz |
| Clamping Range | Up to 10mm |
