New GoldPro® Durston Mini C80 Rolling Mill 80mm
New GoldPro® Durston Mini C80 Rolling Mill 80mm
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

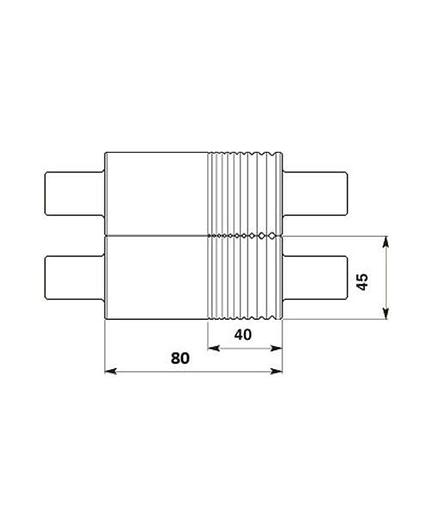

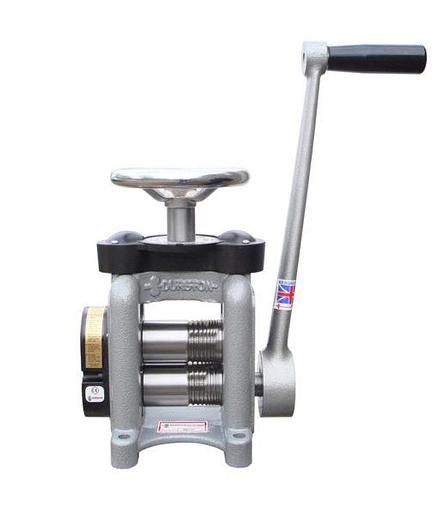

The Mini C80 Rolling Mill without side extensions is no exception and has been manufactured in a one-piece cast iron construction for optimal strength and rigidity. It is compact but still with everything you need and has precision hardened and ground rolls to 64RC. It has maintenance-free bearings and has large, easy-to-read calibrated discs. The C80 has nine wire shaping rollers ranging from 6.5mm to 1mm. The width of the rollers is 80mm with a diameter of 45mm and can take metal sheets up to 5mm thick. This rolling mill has no side extensions added to the core product. The entry-level C80 rolling mill from Durston: part of the award-winning Durston product range since 1961. As the world’s foremost manufacturer of rolling mills, Durston’s products are recognised for their reliability, incredibly robust construction and build quality. We recommend that your Durston rolling mill be securely fastened down for safety, and we have a variety of stands which are ideally suited for this purpose.
Technical Details:
Available Ex-Factory, TN, USA
Priced for: $785.00 USD
Note: Price Subject to Change Without Notice
Specifications
Condition | New |
Stock Number | Mini-C80 |
WEIGHT | 16.2 kg |
PRODUCT WEIGHT (KG) | 15.1KG |
PRODUCT LENGTH (MM) | 255 |
PRODUCT WIDTH (MM) | 170 |
PRODUCT HEIGHT (MM) | 265 |
GEARBOX | Direct drive |
NUMBER OF GROOVES | 9 |
MAX. SHEET THICKNESS (MM) | 5 |
ROLLER TYPE | Combination |
ROLLER DIAMETER (MM) | 45 |
ROLLER LENGTH (MM) | 80 |
SIDE EXTENSIONS | None |
MAX. WIRE CAPACITY (MM) | 6.5mm |
