New GoldPro® Durston Double D2 130mm Rolling Mill
New GoldPro® Durston Double D2 130mm Rolling Mill
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

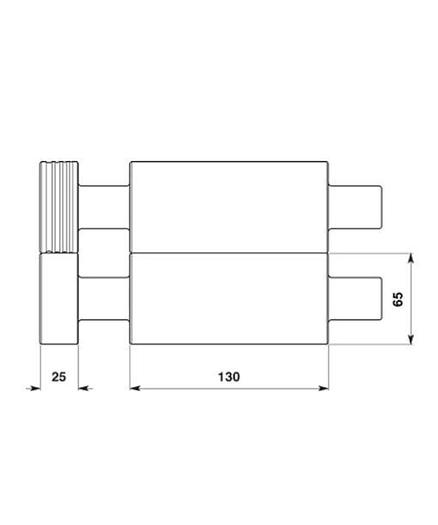

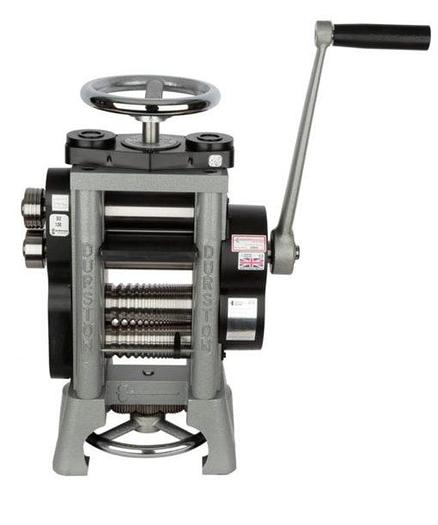

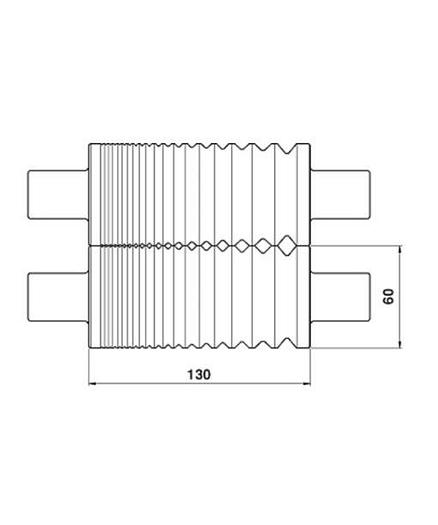

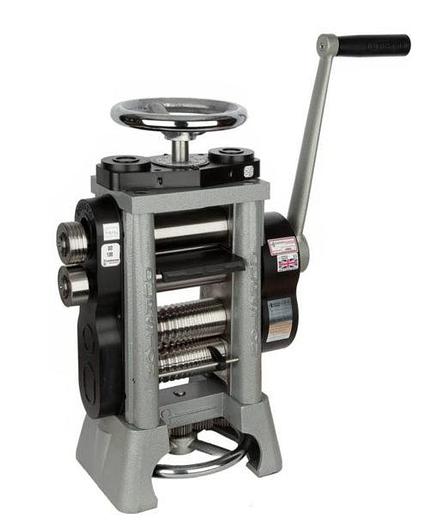

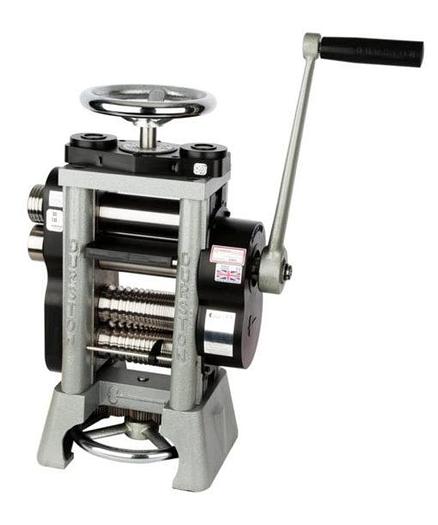

The Double D2 Rolling Mill from Durston is a different mill featuring two sets of rolls; one for flat rolling (having side extension rollers incorporating four half rounds) and the other grooved for the square wire rolling. The excellent gear ratios offer 7-1 load reduction on flat rolling and 3.5-1 for wire rolling, and enables a smooth manual operation with minimal effort. The extra-wide flat area means a full 130mm rolling surface is accessible, while the grooved rollers provider 19 square wire grooves ranging from 10mm to 1mm. The side extensions provide four half rounds in 4, 3, 2 and 1.5 mm. This mill is Durston’s first incorporating roller bearings. For additional safety, all gearing is covered with plastic housing and the large, easy-read calibrated discs and guide plates ensure safe operation through this mill’s long lifetime.
Technical Details:
Available Ex-Factory, TN, USA
Priced for: $2,956.00 USD
Note: Price Subject to Change Without Notice
Specifications
Condition | New |
Stock Number | Double D2 130 |
WEIGHT | 93 kg |
PRODUCT WEIGHT (KG) | 74KG |
PRODUCT LENGTH (MM) | 420 |
PRODUCT WIDTH (MM) | 220 |
PRODUCT HEIGHT (MM) | 565 |
GEARBOX | 7-to-1 & 3.5-to-1 gearbox |
NUMBER OF GROOVES | 19 |
MAX. SHEET THICKNESS (MM) | 6mm |
ROLLER TYPE | Combination |
ROLLER DIAMETER (MM) | 60 |
ROLLER LENGTH (MM) | 130 |
SIDE EXTENSIONS | 4, 3, 2, 1.5mm |
MAX. WIRE CAPACITY (MM) | 10mm |
