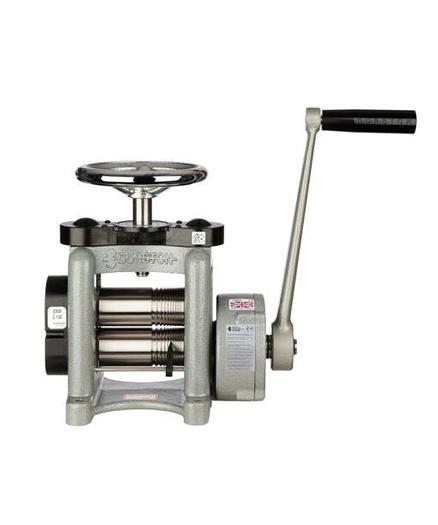

New GoldPro® Durston DRM C130R Combination 130mm Rolling Mill With Gearbox
New GoldPro® Durston DRM C130R Combination 130mm Rolling Mill With Gearbox
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Scroll Down To See Video!

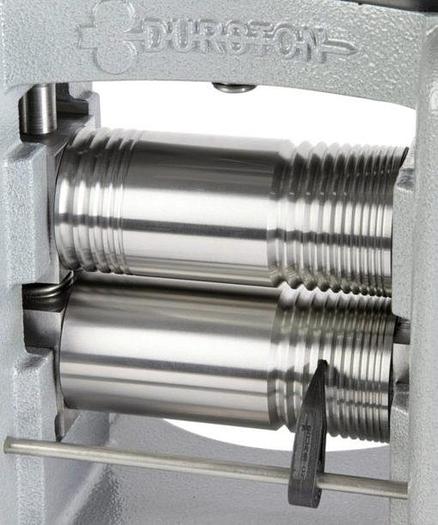

The DRM C130 R Rolling Mill is top quality combination rolling mill enabling metal sheet rolling and metal wire rolling with the benefit of Durston’s unrivalled gearbox. Durston’s mills are constructed from cast iron for optimal strength and rigidity with a reassuring weight to support a lifetime of use and giving a better-rolled product. The rolls themselves are specially induction hardened to 64 RC, the main barrel to a depth of 6mm ensuring your rolls last a lifetime. The rollers also include 11 wire grooves ranging from 8mm to 1mm. The bearings are self-lubricating and are entirely maintenance-free, while the beautifully formed square grooves have been specially designed to produce the best possible rolled finish. The heavy-duty 5-1 gearbox is unrivalled in the industry and makes turning so much more comfortable. Behind the cover, you will find two specially formed gears to make rolling even smoother. Safety features include a protective guard around the top gears. The mill has no side extensions. The DRM C130 R Rolling Mill part of Durston’s award-winning range of products available since 1961.
Technical Details:
Available Ex-Factory, TN, USA
Priced for: $1,294.00 USD
Note: Price Subject to Change Without Notice
Specifications
Condition | New |
Stock Number | DRM-C130R |
WEIGHT | 39.3 kg |
PRODUCT WEIGHT (KG) | 36.8KG |
PRODUCT LENGTH (MM) | 410 |
PRODUCT WIDTH (MM) | 220 |
PRODUCT HEIGHT (MM) | 365 |
GEARBOX | 5-to-1 gearbox |
NUMBER OF GROOVES | 11 |
MAX. SHEET THICKNESS (MM) | 6 |
ROLLER TYPE | Combination |
ROLLER DIAMETER (MM) | 60 |
ROLLER LENGTH (MM) | 130 |
SIDE EXTENSIONS | None |
MAX. WIRE CAPACITY (MM) | 8mm |
