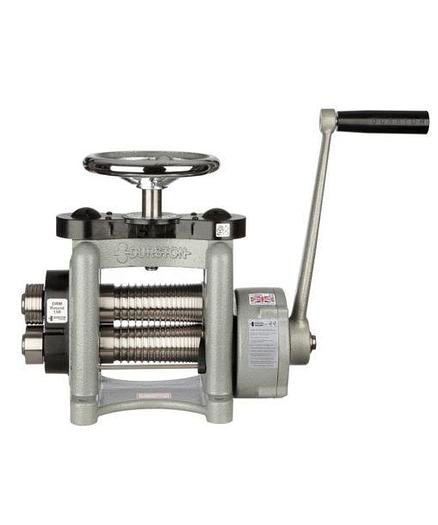

New GoldPro® Durston DRM Round 150mm Rolling Mill
New GoldPro® Durston DRM Round 150mm Rolling Mill
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

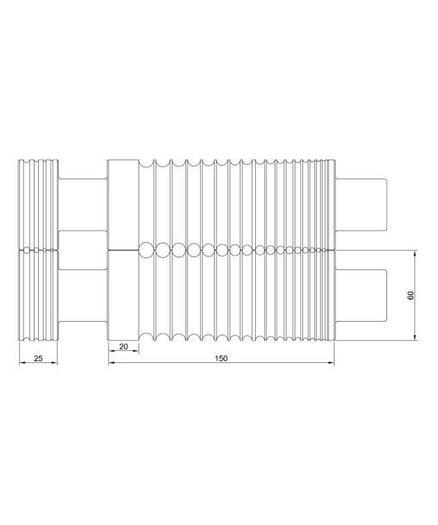

Durston is proud to be the only manufacturer of round rolling mills. The DMR Round 150 Rolling Mill creates perfect circular wire forms through ten rounded forming grooves with a roller length of 150mm. The mill is constructed from one piece of cast iron for maximum rigidity and strength. The bearings are self-lubricating and maintenance-free and fully support the induction hardened rollers. The rolls themselves provide a large flat rolling surface, as well as the ten rounded groups enabling rolling from 6mm to 1mm. Flat rolling has a maximum width of 6mm. The rolls themselves have a diameter of 60mm. This mill provides direct drive without a gearbox and does not feature side extensions, which are available through other models within the range
Technical Details:
Available Ex-Factory, TN, USA
Priced for: $1,813.00 USD
Note: Price Subject to Change Without Notice
Specifications
Condition | New |
Stock Number | DRM-R150 |
WEIGHT | 49.8 kg |
PRODUCT WEIGHT (KG) | 47.3KG |
PRODUCT LENGTH (MM) | 430 |
PRODUCT WIDTH (MM) | 220 |
PRODUCT HEIGHT (MM) | 265 |
GEARBOX | 5-to-1 gearbox |
NUMBER OF GROOVES | 18 |
MAX. SHEET THICKNESS (MM) | 6 |
ROLLER TYPE | Round |
ROLLER DIAMETER (MM) | 60 |
ROLLER LENGTH (MM) | 150 |
SIDE EXTENSIONS | & 1.5mm, 2, 3, 4 |
MAX. WIRE CAPACITY (MM) | 10mm |
