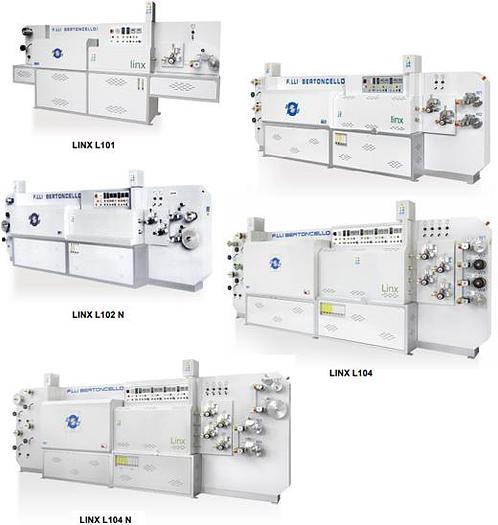

New GOLDPRO® Bertoncello LINX Series Annealing Furnace for Wire and Strips
New GOLDPRO® Bertoncello LINX Series Annealing Furnace for Wire and Strips
Location:Italy
orCall 1-800-619-GOLD
Description
Furnace for continuous annealing of wires and strips.
Highlights:
- Maximum quality of the product thanks to the possibility of a repeatable and effective heat treatment
- Consistent results
- Oxidation-free treatments
- Independent working temperature control for each working line (version with more than one working lines)
- Independent working speed control for each working line (version with more than one working strands)
- Possibility to treat simultaneously in multiple lines profiles of different sections and alloys (version with several working lines).
- Total absence of traction-induced tensions in the product during the whole heat treatment.
- Low power and gas consumption.
- Reduced heat wasting in the working environment.
- Active and passive safety
- Ergonomic design

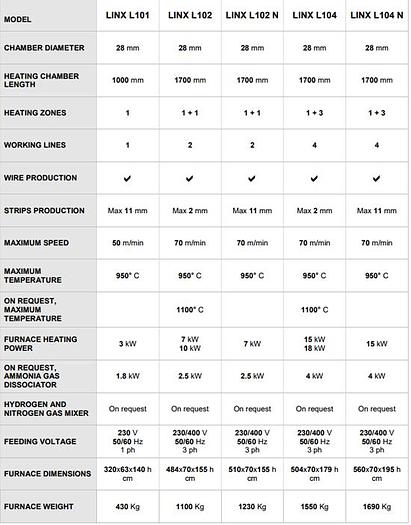

Specifications
Manufacturer | GB Bertoncello |
Model | LINX |
Condition | New |
Stock Number | Linx Series |
Heating Chamber Length: | 1000mm to 1700mm |
Heating zones each working line | 1 |
Working lines | 1 to 4 |
Wire production | Ø 1,2 mm max |
Strips production | 2 to 11 mm max |
Maximum Speed | 50 m/min to 70 m/min |
Maximum temperature | 950° C (standard) |
Furnace heating power | 4 Kw to 18 Kw |
Power ammonia gas dissociator (on request) | 1.8 Kw to 2.5 Kw |
Hydrogen and nitrogen gas mixer (on request) | 40-20 lt/min |
