3026-140 CROA Power Draw Bench / Chain Extruder 1500KG Traction Power with Variable Speed Drive

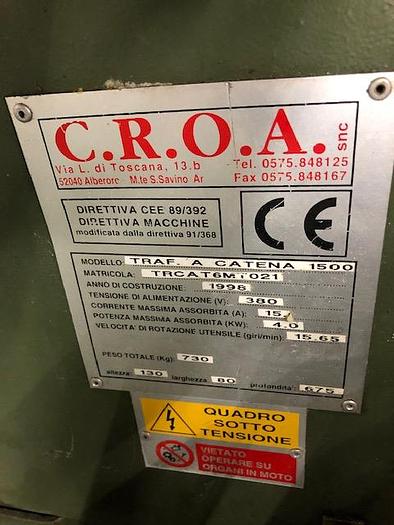

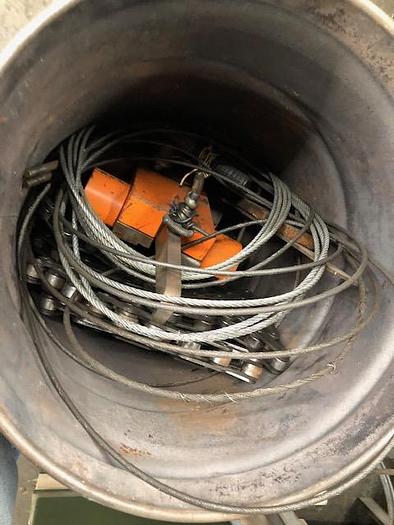

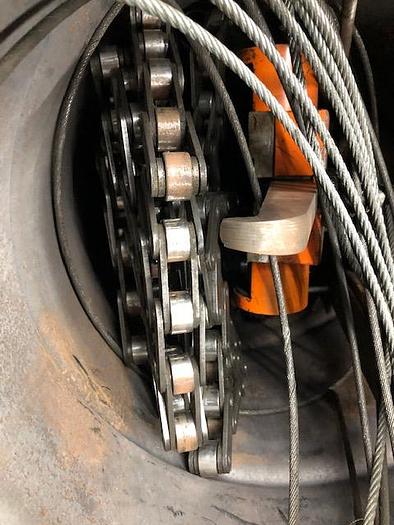

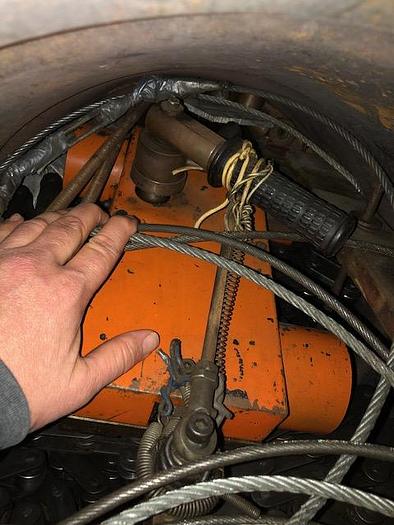

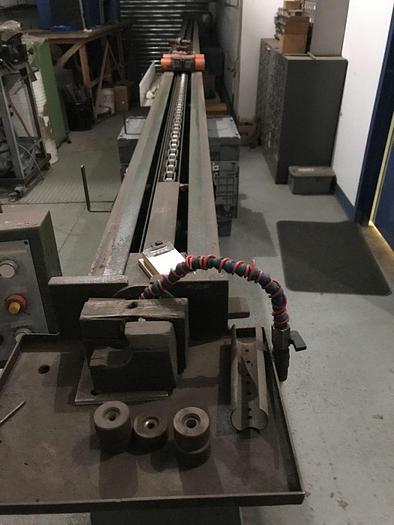

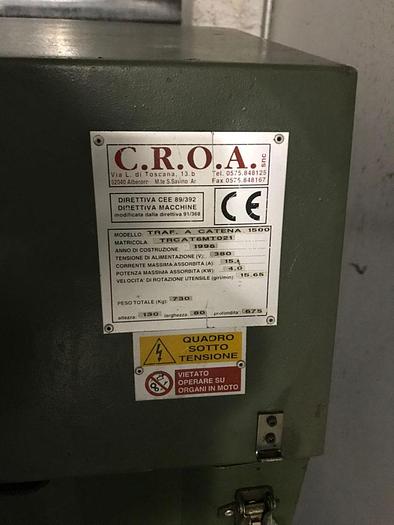

Scroll Down To See Video! Model - TRAF A CATENA 1500 S/N TRCAT 6M to 21 YEAR 1998 FEATURES : WIDTH 700 mm. LENGTH 6500 mm. HEIGHT 1290 mm TRACTION POWER 1500 Kg 380V (50Hz) POWER SUPPLY + earth TOTAL ELECTRICAL POWER 2,5 Kw VARIABLE POWER (ON REQUEST) 1st speed 1,8 Kw 2nd speed 2,5 Kw DRAWING SPEED 1st speed 6.5m / min 2nd speed 13m / min LEVEL OF NOISE ON THE WORKPLACE 75 dB (A) Chain Extruder With Variable Speed Drive The characteristics of the die built by us and the simplicity with which they perform the various processing steps make it suitable for drawing wire, barrel and metal pipe, even of large dimensions. Considerable importance was given to the study of the trolley made in order to allow the operator to make the brim of the wire to be drawn and the coupling to the traction chain in two distinct phases without the possibility of error and with one hand; in fact, the lever placed above the trolley blocks the wire on the pliers which give the particularity of working always parallel. Once the thread has been taken, the drawing can be started by pulling the anchorage lever to the chain. The mechanical limit switch automatically releases the drawing. The truck can be called by the operator who, by acting on the button, will operate a special motor for the automatic return of the safety hook. The "galle" type chain is double-edged with plates. The traction is carried out by a geared motor-reducer mounted on the chain return shaft. The die head is equipped with a tray for collecting the lubricating oil, the support of the beams is constructed in such a way as to house a recirculation tank for the oil through an adequate pump. The machine is equipped with accident prevention devices against wire breakage. The traction speed can be fixed or variable. Link to Manufacturer's Website Recently taken from service out of NJ sold as is ex-works RI
