New GoldPro® Durston DRM C130 Combination Flat/Wire 130mm RE Rolling Mill
New GoldPro® Durston DRM C130 Combination Flat/Wire 130mm RE Rolling Mill
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Scroll Down To See Video!

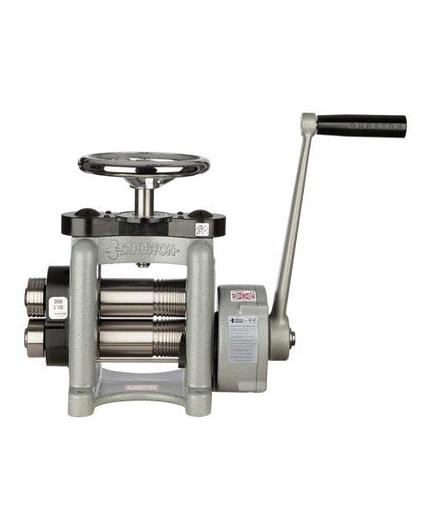

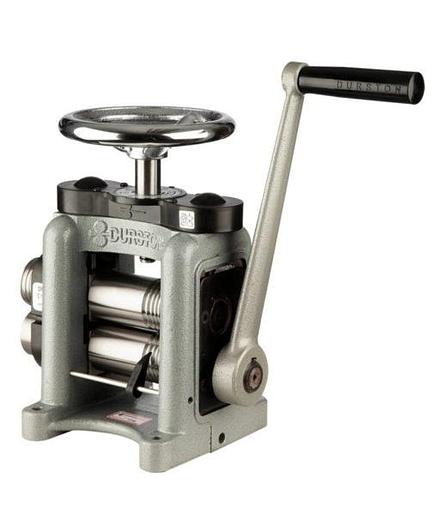

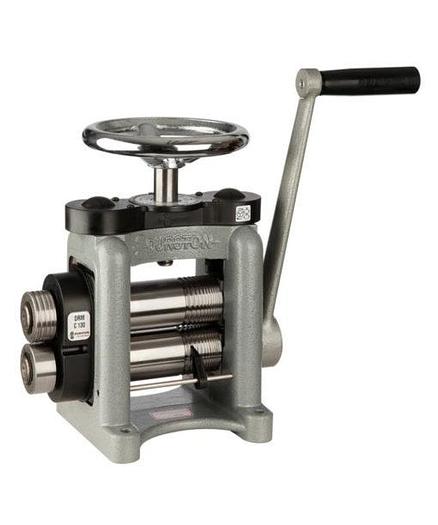

The DRM C130 RE Rolling Mill is a top quality combination rolling mill enabling metal sheet rolling and metal wire rolling. The mill also benefits from side extensions and the ease of use of Durston’s unrivalled reduction gearbox. Durston mills are constructed from cast iron for optimal strength and rigidity with a reassuring weight to support a lifetime of use and a better-rolled finish. The rolls themselves are specially induction hardened to 64 RC, the main barrel to a depth of 6mm ensuring your rolls last a lifetime. The rollers also include 11 wire grooves ranging from 8mm to 1mm. The bearings are self-lubricating and utterly maintenance-free while the beautifully formed square grooves have been specially designed to produce the best possible rolled finish. The heavy-duty 5-1 gearbox is unrivalled in the industry and makes turning much easier. Behind the cover, you will find two specially formed gears to make rolling even smoother. An extension side roller incorporates four shallow half rounds giving your rolling mill even more versatility. Safety features include a protective guard around the top gears. The DRM C130 Rolling Mill is part of Durston’s award-winning range of products available since 1961.
Technical Details:
Available Ex-Factory, TN, USA
Priced for: $1,666.00 USD
Note: Price Subject to Change Without Notice
Specifications
Condition | New |
Stock Number | DRM C130 |
WEIGHT | 47.8 kg |
PRODUCT WEIGHT (KG) | 45.3KG |
PRODUCT LENGTH (MM) | 410 |
PRODUCT WIDTH (MM) | 220 |
PRODUCT HEIGHT (MM) | 365 |
GEARBOX | 5-to-1 gearbox |
NUMBER OF GROOVES | 11 |
MAX. SHEET THICKNESS (MM) | 6 |
ROLLER TYPE | Combination |

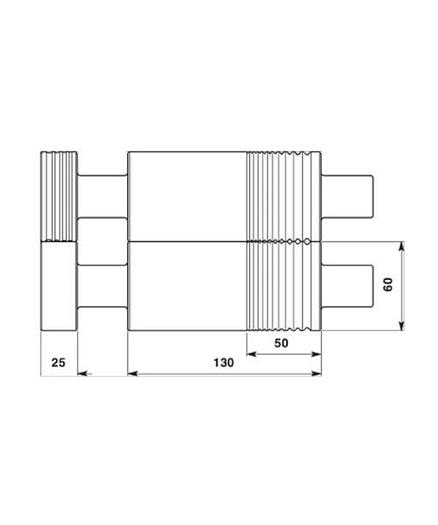

ROLLER DIAMETER (MM) | 60 |
ROLLER LENGTH (MM) | 130 |
SIDE EXTENSIONS | 4, 3, 2, 1.5mm |
MAX. WIRE CAPACITY (MM) | 8mm |
