NEW Cavallin GoldPro® ML400 Breakdown Rolling Mill for Plate
NEW Cavallin GoldPro® ML400 Breakdown Rolling Mill for Plate
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Model Number ML 400
Breakdown Rolling Mill with a medium-sized reversible duo scheme for the produtciont of plates with millimeter thickness.
A suitable machine for the production of large quantities of material with good dimensional and surface finish of the plate.

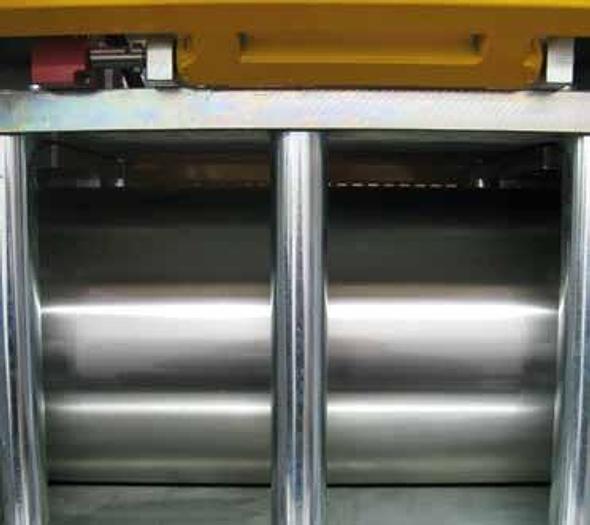

This machine has full structure in electro-welded and painted steel. The rolling cage has monobloc steel posts, hardened, ground threaded adjusting screws houses in bronze ring nuts.
Water cooling of the cylinder body by a controlled solenoid valve and rotating joints.

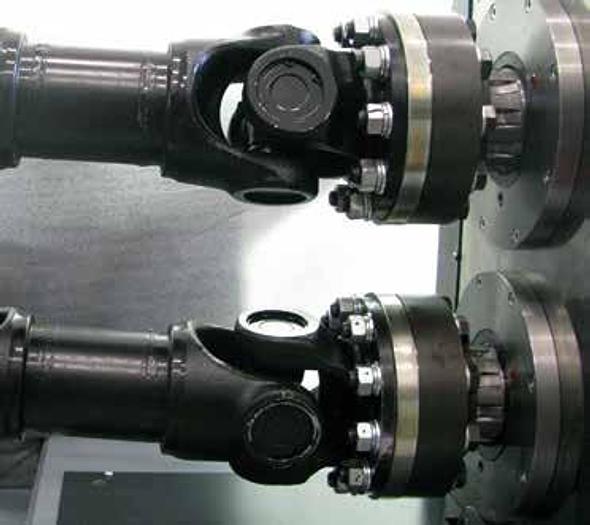

Main motor with two body gearbox. Controls on a rotating keypad with a display.
Available Ex-Factory, Italy
PRICE UPON REQUEST
Specifications
Condition | New |
Stock Number | ML400 |
Cylinder Table | 400MM |
Cylinder Diameter | 350MM |
Working Thickness | 45MM |
Installed Power | 11kW |
Torque | 5.2 daNm |
Working Speed | 5.2 m/min |
Overall Dimentions | 2950MM x 800MM x 2000MM |
Estimated Weight | 3100 Kg |
