New GoldPro® / BEI 100mm & 130mm Double Side Power Rolling Mill

New GoldPro® / BEI 100mm & 130mm Double Side Power Rolling Mill

Contact us for price

Location:Pawtucket, RI

orCall 1-800-619-GOLD

Description

Code 058MTV2C….. 130MM ….. €3.050,00 Euros Code 058MTVC1…..130MM….€2.450,00 Euros Code 061MTV2C….100MM….€3.300,00 Euros Code 061MTV1C…..100MM….€2.280,00 Euros The two groups laminators are mounted on a sturdy and rigid steel base, thanks to which it is guaranteed the perfect interface aligned even during the rolling process. groups of rolling cylinders are equipped with stainless steel with high hardness, fit into the backs of aluminum alloy high strength, the cylinders rotate on special bushings which do not require lubrication. The lever movement, in the upper section allows to set the distance between the laminating cylinders and consequently the thickness of lamination, the displacement performed can be verified by the graduated disc placed on the toothed wheels of command, keyed on the feed screws of the cylinders themselves. The rolling motion is provided by a worm gear motor power of 1.1 kw mounted in a central position between the two groups of rolling. By means of the inverter mounted on board of the machine it is possible to adjust the speed of production from 0 to 5.1 meters per minute. Available Ex-Factory, Italy 30 Working Days Lead Time

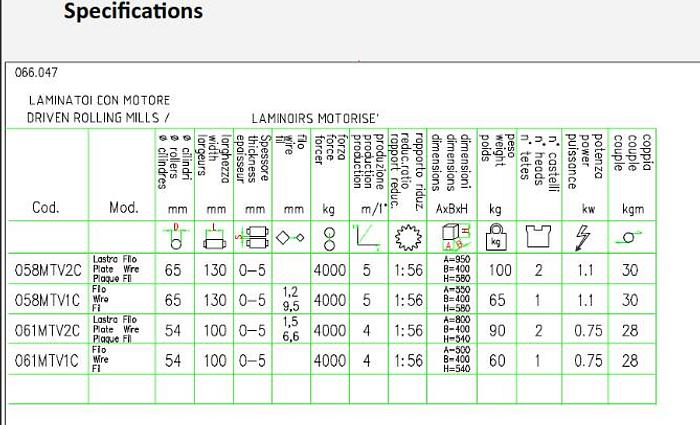

Specifications

ConditionNew
