New GOLDPRO® Bertoncello Delta Series Vertical Continuous Casting Induction Furnaces

New GOLDPRO® Bertoncello Delta Series Vertical Continuous Casting Induction Furnaces

Contact us for price

Location:Pawtucket, RI

orCall 1-800-619-GOLD

Description

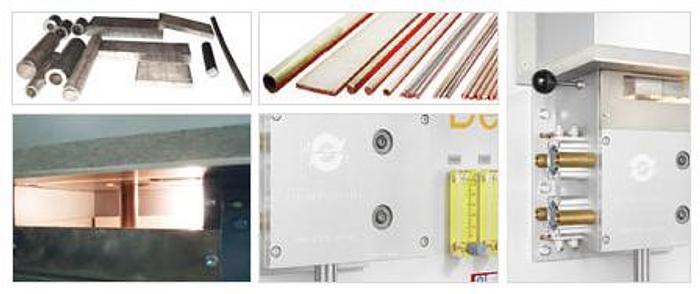

Scroll Down To See Video! All the G.B. F.LLI BERTONCELLO models of melting furnaces, mod. BETA static, mod. IDEAL with tilting crucible, mod. MINI - mod. DELTA - mod. LARRY - mod. ZEUS with vertical continuous casting, mod. LOGIC with horizontal continuous casting, have been designed by our engineers to achieve the best metallurgical quality on precious metal alloys melting process, with optional 1500°C melting temperature as required by some special alloys. Perfect homogeneity of the alloys thanks to our Pulse Mixing System Excellent casting even with low carat alloys and difficult sections thanks to the powerful pulling system with four rollers High working speed thanks to the double cooling system of the die Easy and fast setting and control by visual display unit Certainty of maintaining the plant in good condition thanks to the self-diagnosing system and possible alarms with buzzer Protection of crucible and die by argon or hydrogen gas Protection of the melting chamber by aluminum casing easily and quickly removable to change the consumables Crucible, die and thermocouples quick change for short set-up time Pulling system with four rollers, stepper motor, closing and opening of the rollers with pneumatic control Quick melting and high speed withdrawal of the profiles New medium frequency generators Silent working plant Control of the working parameters by PLC and touch screen video, self-diagnosing and possible alarms with buzzer Deoxidizing chamber of the profiles Models & Specifications: Available Ex-Factory, Italy Lead Time Typically 6-8 Weeks Model Delta 7 Starting At... € POR Model Delta 12 Starting At... € POR Packing & Fumigated Crate.... € 660.00

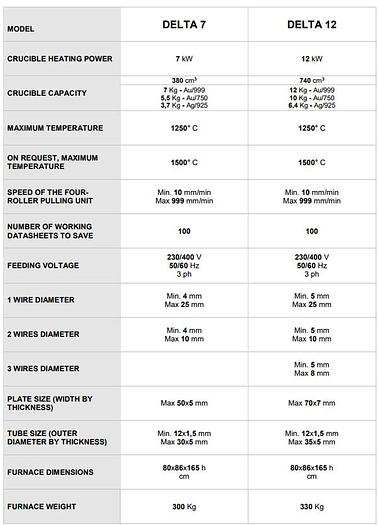

Specifications

ConditionNew
Stock NumberDelta Series

Documents
