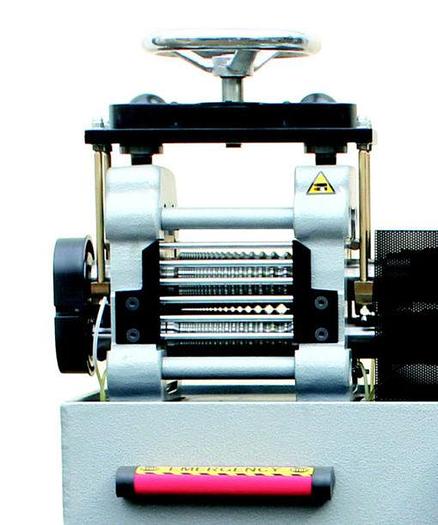

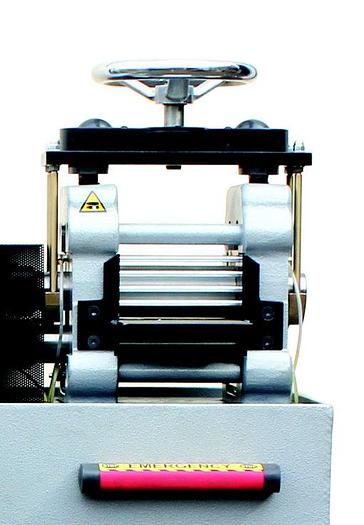

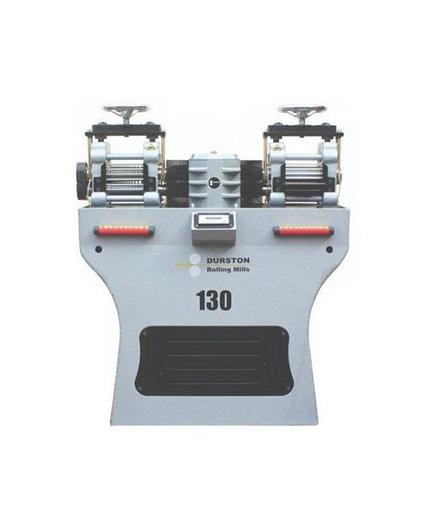

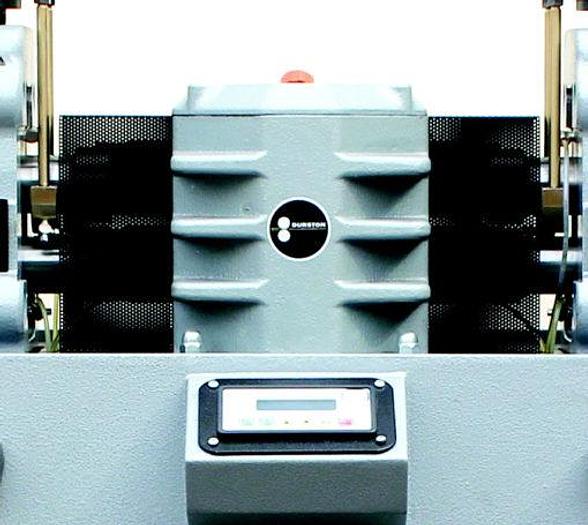

New GoldPro® Durston Floor Standing 130mm Double Sided Power Rolling Mill
New GoldPro® Durston Floor Standing 130mm Double Sided Power Rolling Mill
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

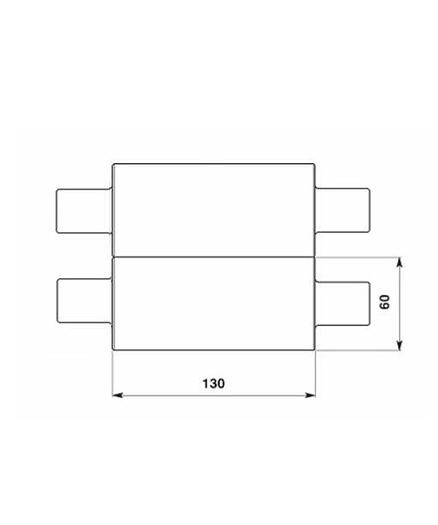

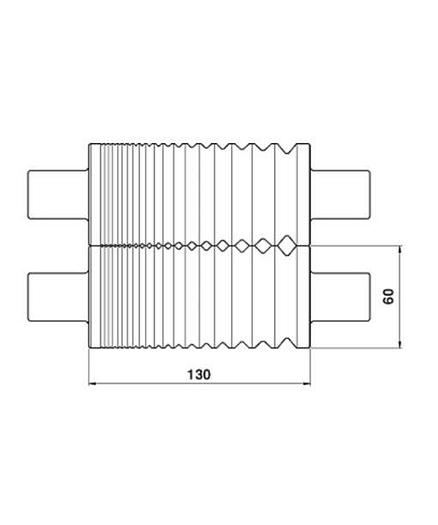

Durston is the market leader in precision rolling mills and no wonder; the FSM 130 Double-Sided Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity. This mill is a floor standing mill and has lubrication on the roll bearings. The 1.1 KW motor is sturdy enough for continuous operation, which is why Durston mills have such a long working life. This versatile package has variable speeds with forward and reverse and a highly efficient near silent operation. The rolls are specially induction hardened to 64 RC (the right barrel provides a large flat rolling service of 130mm on rollers with a diameter of 65mm, offering a maximum roll thickness of 6mm) ensuring your rolls last a lifetime. The right-hand barrels are dedicated to square wire forming and offer 19 grooves ranging from 7mm to 1mm. A set of extension rollers provide a total of four half-rounds; 4, 3, 2 and 1.5mm. Optional extras include digital roll gap meter and work lights.
Technical Details:
Available Ex-Factory, UK
Priced for: $24,570.00 USD
Note: Price Subject to Change Without Notice
Specifications
Condition | New |
Stock Number | FSM-130 |
WEIGHT | 490 kg |
PRODUCT WEIGHT (KG) | 390KG |
PRODUCT LENGTH (MM) | 825 |
PRODUCT WIDTH (MM) | 450 |
PRODUCT HEIGHT (MM) | 1210 |
NUMBER OF GROOVES | 19 |
MAX. SHEET THICKNESS (MM) | 14 |
ROLLER TYPE | Combination |
ROLLER DIAMETER (MM) | 65 |
ROLLER LENGTH (MM) | 130 |
SIDE EXTENSIONS | 2 & 1.5mm, 3, 4 |
MAX. WIRE CAPACITY (MM) | 7mm |
