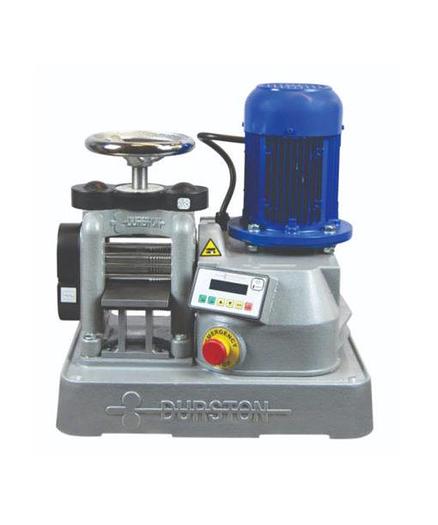

New GoldPro® Durston DRM Wire 130mm Powered Rolling Mill
New GoldPro® Durston DRM Wire 130mm Powered Rolling Mill
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

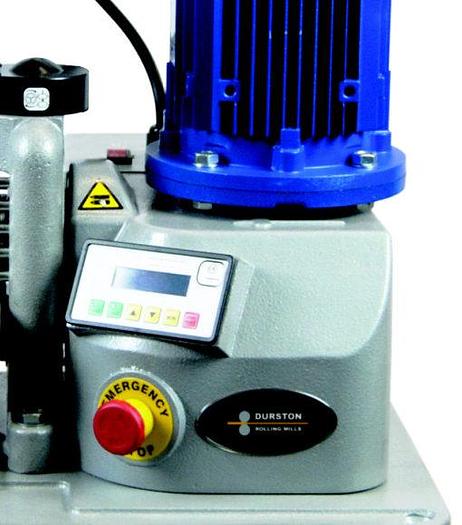

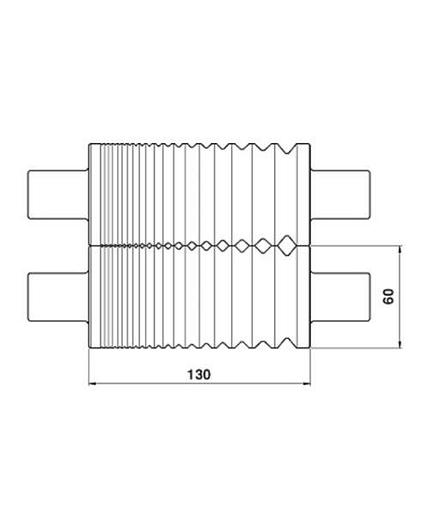

Durston Tools is the market leader in precision rolling mills and no wonder; the DRM W130 Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity. The W130 is a powered grooved rolling mill for wire rolling; side extensions also enable half round milling. The 1.1KW motor is powerful enough for continuous operation which is why Durston Tools’ mills have such a long working life. This versatile package has variable speeds from 5 to 20 RPM and a highly efficient, near-silent operation. The rolls are especially induction hardened to 64 RC; the main barrel has 19 square grooves for wire rolling from 10mm – 1mm. Side extension rollers provide a total of four half-rounds of 4, 3, 2 and 1.5mm. Safety features include an emergency stop button, safety bars at the front and rear of the mill, guards covering the extension rollers as well as guards covering the top gear. Part of Durston Tools’ award-winning range of products available since 1961.
Technical Details:
Available Ex-Factory, UK
Priced for: $4,450.00 USD
Available in 110V and 220V
Note: Price Subject to Change Without Notice
Specifications
Condition | New |
Stock Number | DRM-W130ss |
WEIGHT | 150 kg |
PRODUCT WEIGHT (KG) | 130KG |
PRODUCT LENGTH (MM) | 500 |
PRODUCT WIDTH (MM) | 390 |
PRODUCT HEIGHT (MM) | 540 |
NUMBER OF GROOVES | 11 |
MAX. SHEET THICKNESS (MM) | 6 |
ROLLER TYPE | Wire |
ROLLER DIAMETER (MM) | 65 |
ROLLER LENGTH (MM) | 130 |
SIDE EXTENSIONS | 4, 3, 2, 1.5mm |
MAX. WIRE CAPACITY (MM) | 8mm |
VOLTAGE | 110V, 220V |
RANGE | DRM Powered |
