New Goldpro® /CMC Model -A/V Hand Made Rope Link Making Machine
New Goldpro® /CMC Model -A/V Hand Made Rope Link Making Machine
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
ART. A/V
Price: €8.820,00
Plus Tooling
“System” to Manufacture Hollow/Solid
Hand-Made Rope Chain

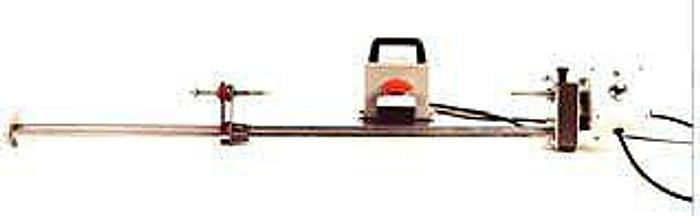

Figure 1 – Winding Machine
Price: €1.386,00

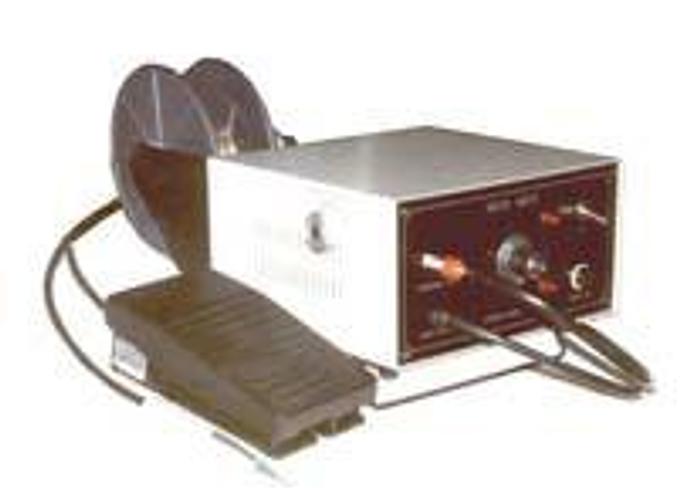

Figure 2 -Solder Gun
Price: €1.512,00
plus Tooling, Packing/Crating
New Semi-Automatic machinery for the production of solid and hollow links & rings (Commonly Used For Hand Made Rope Chain Mfg), even for extra light rope chain, thanks to the possibility of loading a stripe of precious metal together with an iron wire core or similar.
This machine winds and cuts in each revelation of the arbor,it feeds in a solid wire that is simultaneously wrapped by a thin strip of flat metal forming the hollow ring afterwards the core is to be dissolved/removed.
Available With a variety Of Tooling Sizes To Produce Different Diameters of Solid Or Hollow Links (See list of accessories below).
Technical Data:
Weight 100Kg
Size 100x75x44
Electric network 220 Volt – 50/60 HZ – WATT 500
Max thread diameter -1.50 mm
Max internal ring diameter -15 mm
Cut tecnology device Rent cutting system with knife holder spindle
Production N.21000 rings production per hour (maximum speed)
System functioning
Opportunity to construct rings (round, oval rectangular, triangular and so on by positioning the rent in different positions); flattening of the rings by twin cylinders (roller) with maximum adjustment;equipment for the construction of hollow rings
Accessories:
Solder Gun for Soldering Hand Made Rope Links – COD. 13, price: €1.512,00 (Figure 1)
Availability:
Ex-Factory, Italy
Check the latest exchange rate
Specifications
Condition | New |
System Price | €11.718,00 |
Hand Made Rope Link Winding Machine – COD. 15, price | €1.386,00 (Figure 2) |
EQUIPMENT FOR RING MACHINE ROUND – COD.05/01, price | €150,00 |
EQUIPMENT FOR RING MACHINE OVAL – COD.05/02, price | €180,00 |
EQUIPMENT FOR RING MACHINE SQUARE – COD.05/03, price | €189,00 |
EQUIPMENT FOR RING MACHINE RECTANGULAR – COD.05/03R, price | €189,00 |
EQUIPMENT FOR RIG MACHINE TRIANGULAR – COD.05/04, price | €189,00 |
EQUIPMENT FOR RING MACHINE A GOCCIA – COD.05/03G, price | €189,00 |
MANDREL STANDARD, ART. 05/19 price | €37,80 |
KNIFE HOLDER ROUND, ART. 05/10 price | €31,50 |
COMPASS PINION ROUND, ART. 05/05 price | €80,70 |
KNIFE HOLDER OVAL, ART. 05/11 price | €49,80 |
COMPASS PINION OVAL, ART. 05/06 price | €92,40 |
KNIFE HOLDER ESQUARE, ART. 05/12 price | €51,45 |
COMPASS PINION ESQUARE, ART. 05/07 price | €99,75 |
KNIFE HOLDER RECTANGULAR, ART. 05/14 price | €51,45 |
COMPASS PINION RECTANGULAR, ART. 05/08 price | €99,75 |
KNIFE HOLDER TRIANGULAR, ART. 05/13 price | €51,45 |
COMPASS PINION TRIANGULAR, ART. 05/09 price | €99,75 |
KNIFE HOLDER GOCCIA, ART, 05/16 price | €51,45 |
COMPASS PINION GOCCIA, ART, 05/09G price | €99,75 |
