NEW OMPAR RA 2300 B2 – Two Heads Diamond Cutting Machine for Chains with Geometrical Sections
NEW OMPAR RA 2300 B2 – Two Heads Diamond Cutting Machine for Chains with Geometrical Sections
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

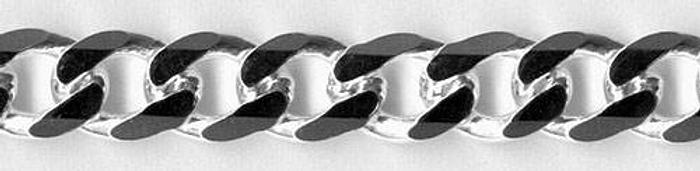

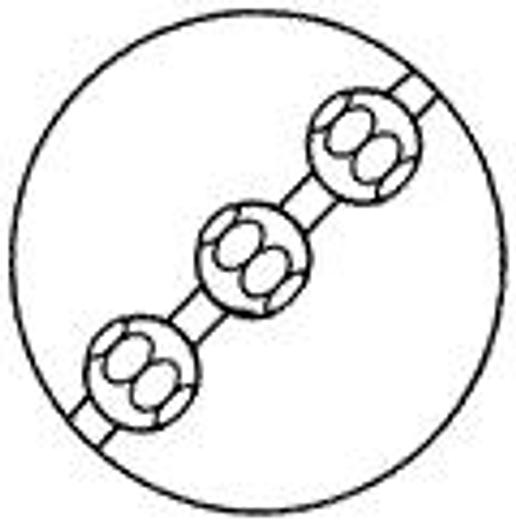

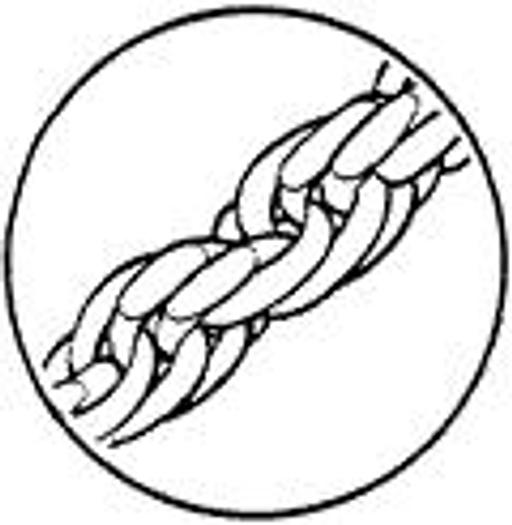

Equipped with two horizontal heads suitable to carry out cutting and forming on 4, 6, 8 sides on rope chains, ball-chain and hammered with geometrical shape chains; concave and convex bevelling and forming on chain with maximum wire 2,0 mm. The machine is fitted out with two very high precision spindles, two adjustable 4-tools cutters (120 mm diameter), with vacuum system for gold chips recovery, vice-discs (120 mm diameter) mounted on carriage with double adjustment, both for centering and cut depth with reading on centesimal gauges. Complete with steel disc holder flanges, vacuum unit, electric plant, two optical scopes for chain set-up, base, service spanners & spare belts. CE 98/37 certification.
230-400V / 50-60Hz / 3 phase

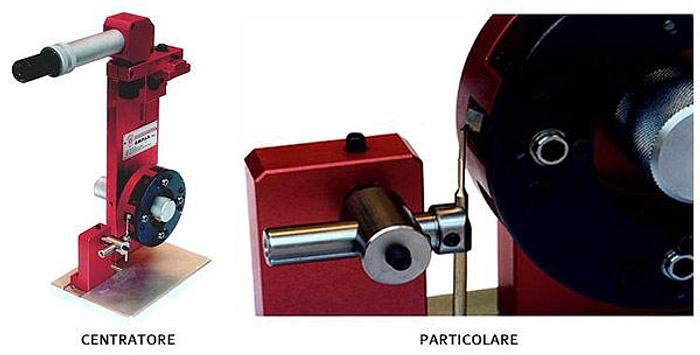

Sample Photo – Accessories
Availability:
Ex-Factory, Italy
Check the latest exchange rate
Specifications
Condition | New |
Gross Dimension | 130 x 95 x 190(h) cm |
Gross Weight | 490 Kg |
Net Weight | 310 Kg |
