Description

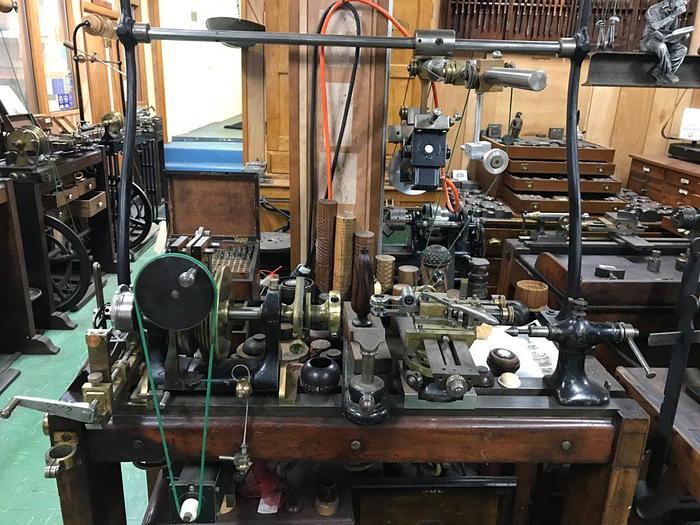

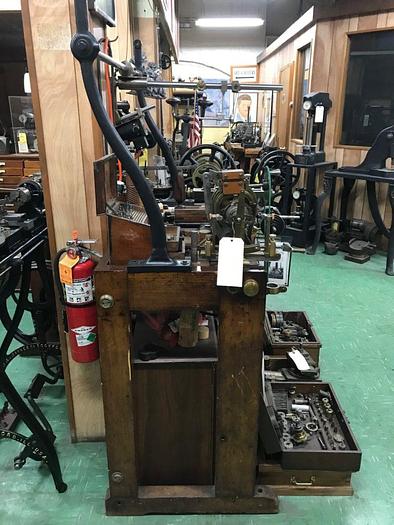

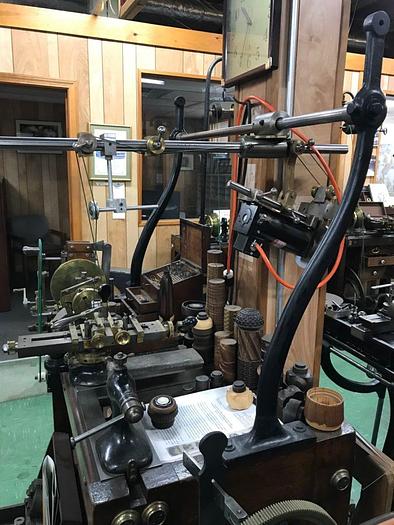

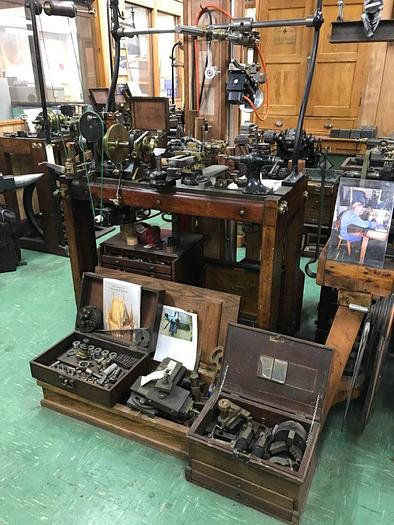

This Holtzapffel ornamental turning lathe was built in 1881 and first sold in 1885, making it one of the later machines built by the Holtzapffel firm. H2362 has been extensively modified by its previous owners to function as a rose engine, though it can be easily dismounted to serve its original ornamental turning functions. This is a lathe for someone who wants to use it, not just look at it. The lathe is in excellent working condition, though it shows its years.
Double mahogany frame with cast-iron bed
Original six-step pulley with index plate and index arm
Two sets (brass and steel) pivot risers for rocking headstock (rose engine) (The lathe is capable of both rocking and pumping action.)
Various rose-engine rubbers
Pendulum apparatus for centering rocking headstock
Original OT cross-slide, plus highly desirable original cradle (Also newer riser cradle for rose-engine work)
Eccentric chuck
Dome chuck
Oval chuck (missing indexing nose)
Sprial surface chuck
Eccentric cutting frame (original)
Horizontal cutting frame (not original)
Universal cutting frame (not original)
Drilling frame (not original, accepts small Holtz drills)
Spiral apparatus (missing 24-tooth gear)
Spiral "donut" gears
Reciprocating arm
Fluting stops
Curvilinear gear (but no curvilinear patterns)
Four plastic rocking rosettes, six plastic rocking/pumping rosettes, one brass D12 rocking rosette from a Holtz rose cutting frame
Original tailstock
Rocking tailstock (mounts to headstock)
Two short plainturning tool rests
Threading hobs and follower
Original goniostat
Heavy metal-cutting crossslide

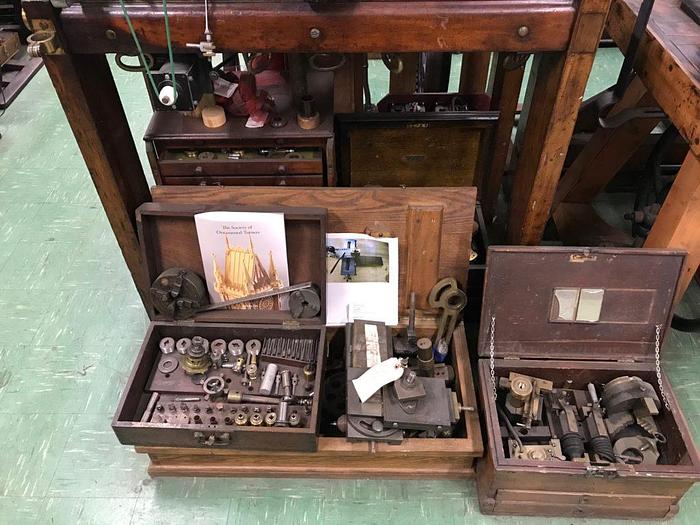

Beautifully constructed mahogany chest of drawers for accessories
Lidded mahogany chest for small accessories
Numerous original faceplates, cup chuck and other holding gear (original two-jaw chuck is inoperable)
Three-jaw chuck on H2362 faceplate
1" x 8 tpi mandrel converter
1" collet chuck (fits Holtz mandrel)
A nice collection of previous owner's test and practice pieces
Complete pedigree and other documentation
