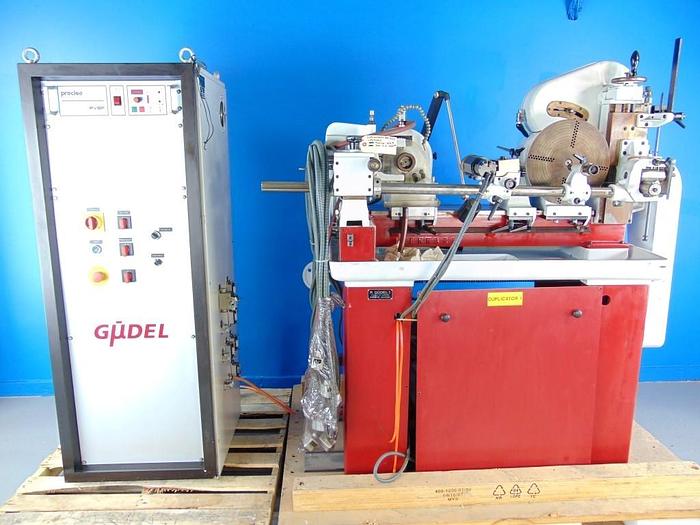

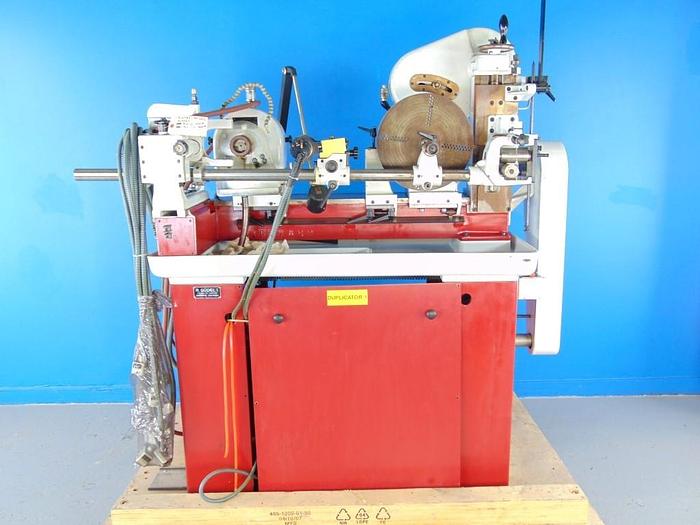

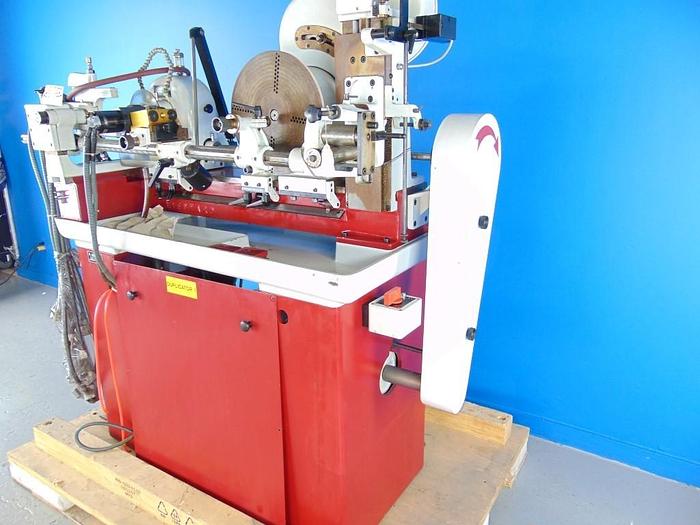

3016-330 GUDEL 3D DUPLICATING REDUCING ENLARGING ENGRAVING MACHINE-COINS, MEDALLIONS
3016-330 GUDEL 3D DUPLICATING REDUCING ENLARGING ENGRAVING MACHINE-COINS, MEDALLIONS
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
220 volts - 3 phase - 50/60 Hz

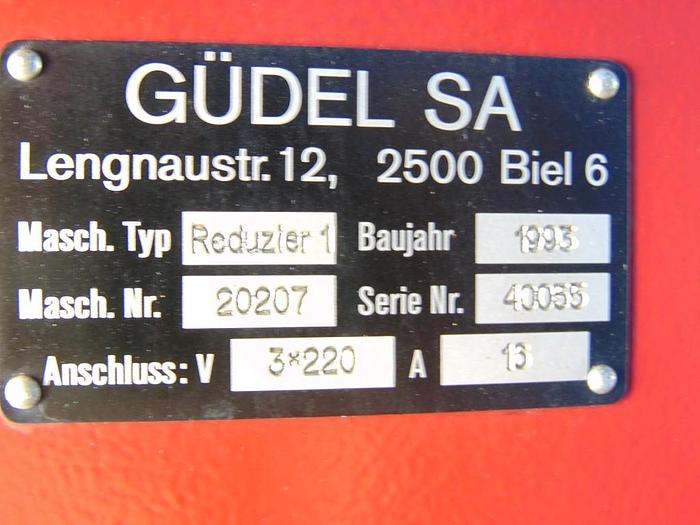

3D engraving, reproduction and copy milling System ~ Reducer 1
Copy milling made easy. For toolmaking, mouldmaking, the jewellery industry, mints and engraving works, the use of the engraving machine means a slice of independence.

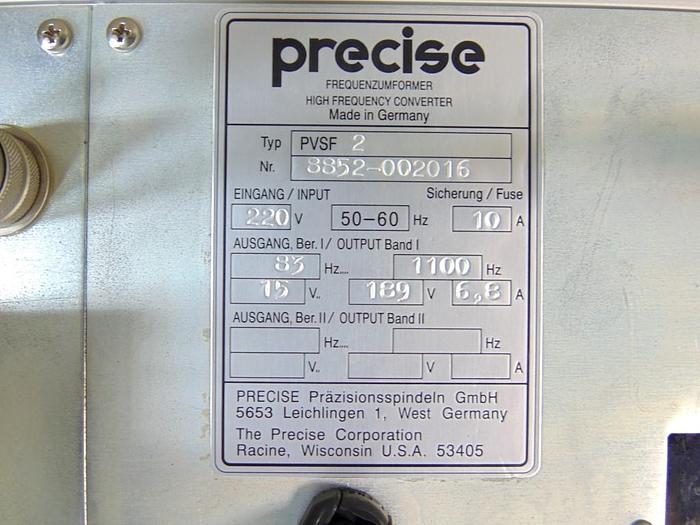

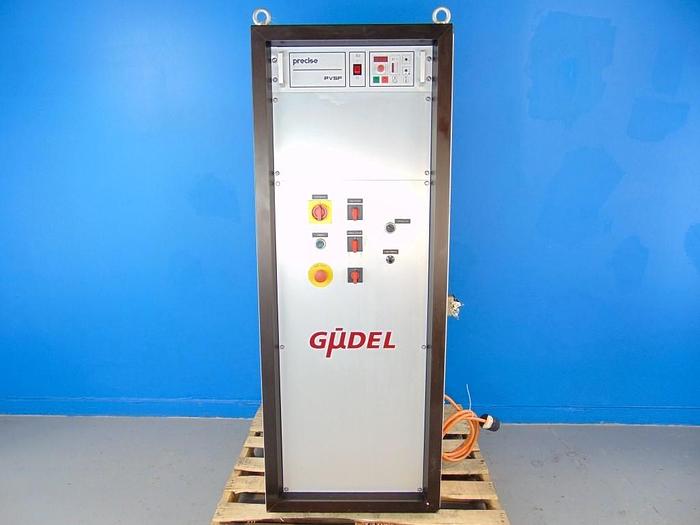

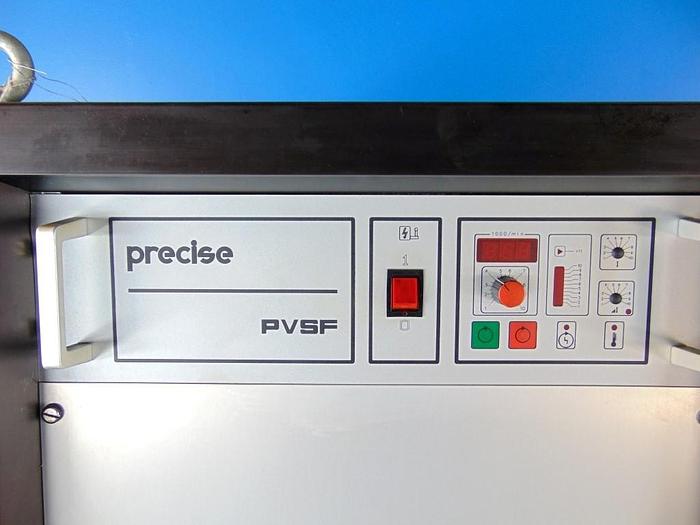

PRECISE HIGH PRECISION SPINDLE #PVSF-2
HUB/HOB MAKING - SEE SAMPLES PHOTOS
COIN AND MEDALLION MAKING WITH HIGH RELIEF CAPABILITY
METAL,S, PLASTICS, OTHER
Technical data:
Reduction proportion 1:1.41 to 1:100
Mirror transfer (Janus mould)
Profile flattening or heightening max. 0-100%
Automatic speed regulation of tool and model
Continuous feed
Precision/engraving spindle
Ø 40 x 140, 16.000 rpm, maintenance-free with Ø 6 mm chuck
Ø 6 mm engraver's milling cutter in hard metal
Basic machine dimensions 850 x 2000 x 1750
For over sea's shipment estimated Crate size ) 52" x 72" x 70 "
Domestic skid / cover would be two skids
Skid 1) 76" x 48" x 79" h 1800 LBS
Skid 2) 48" x 40 " x 74" h 315 h LBS
Equipped With:

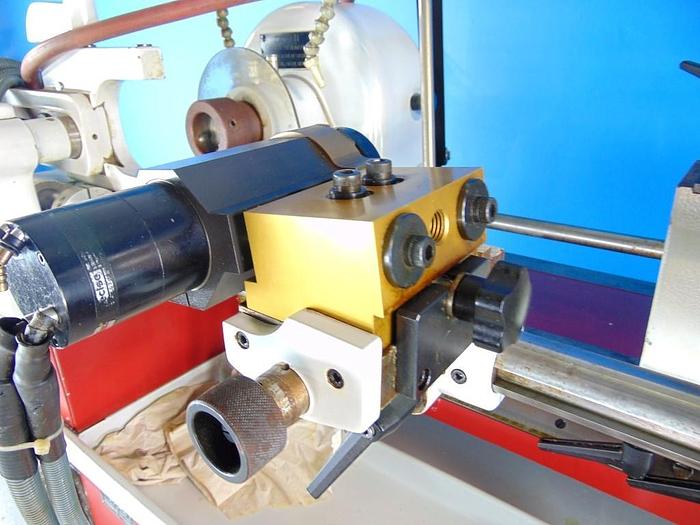

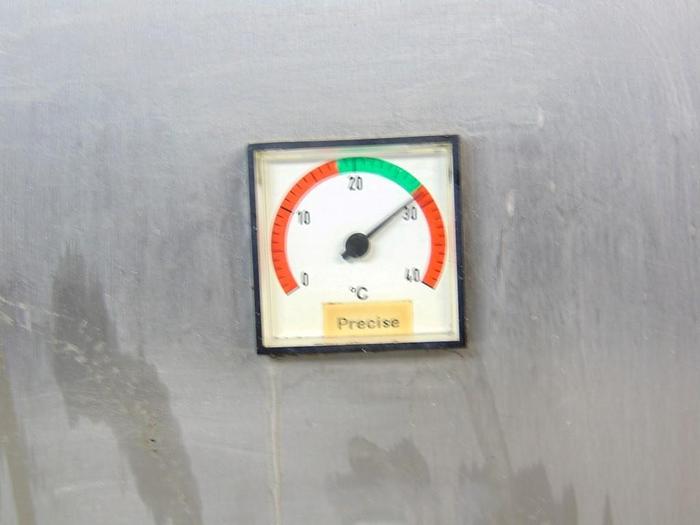

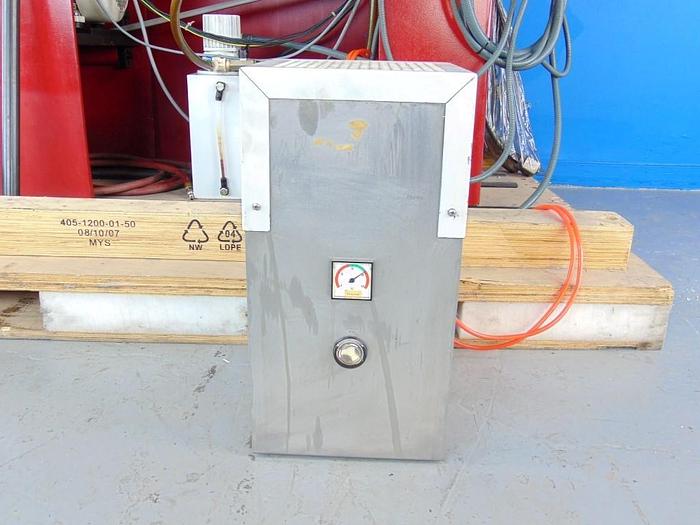

Precision/engraving spindle w/ Chiller

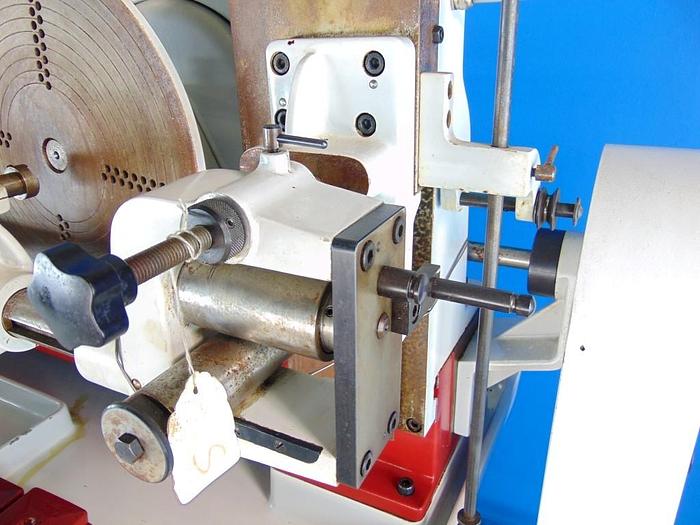

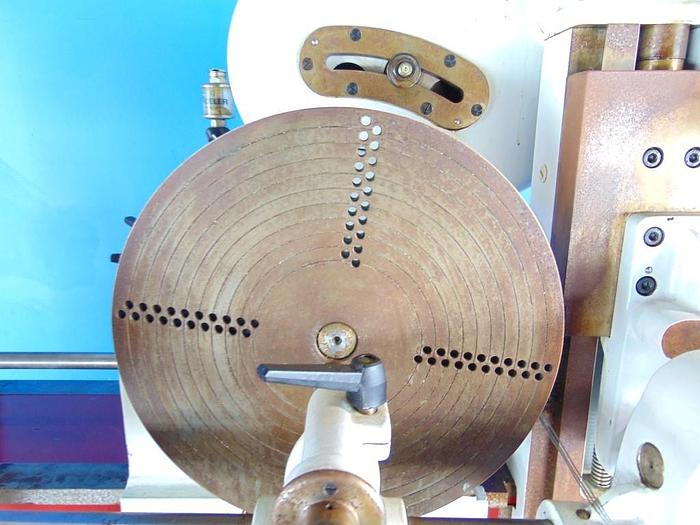

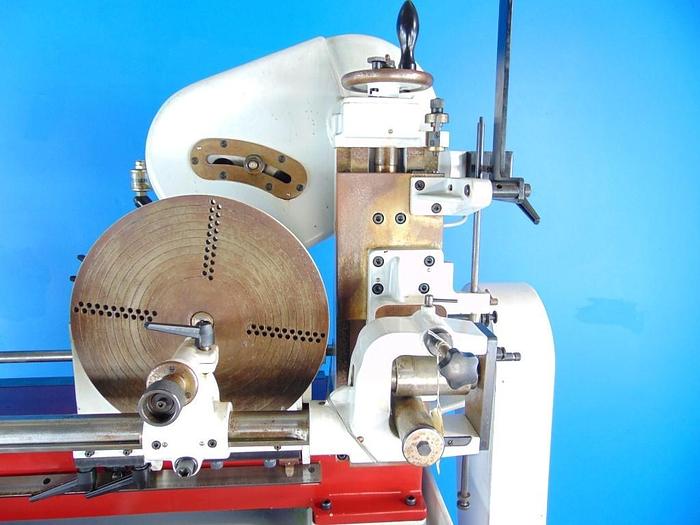

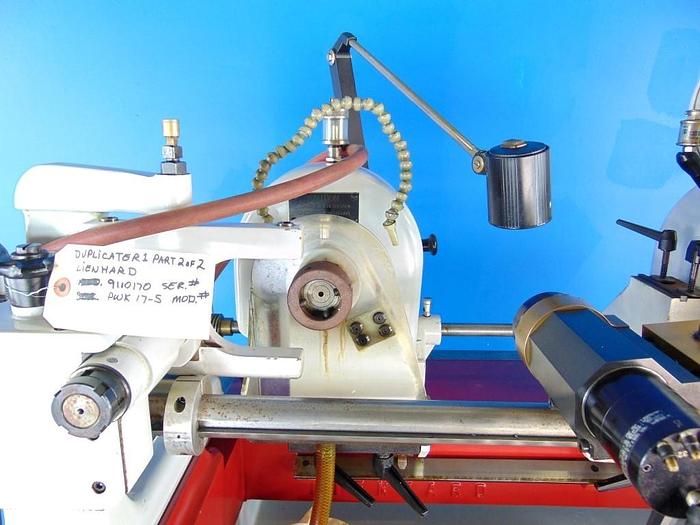

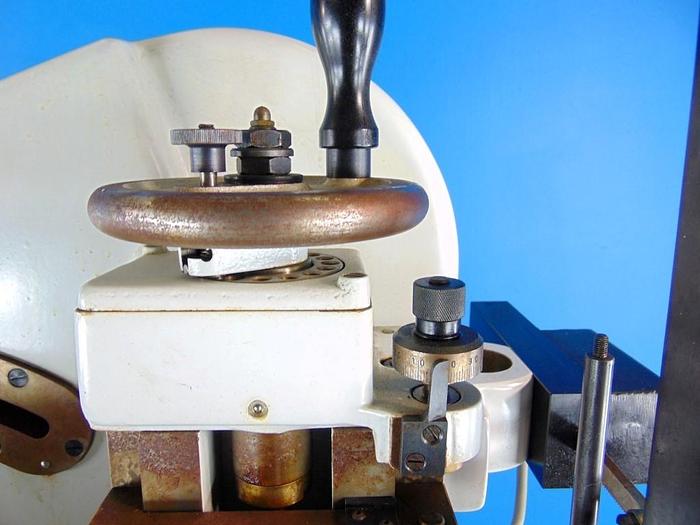

Precisely-controlled feeler arm through the use of double rollers
Support plate weights

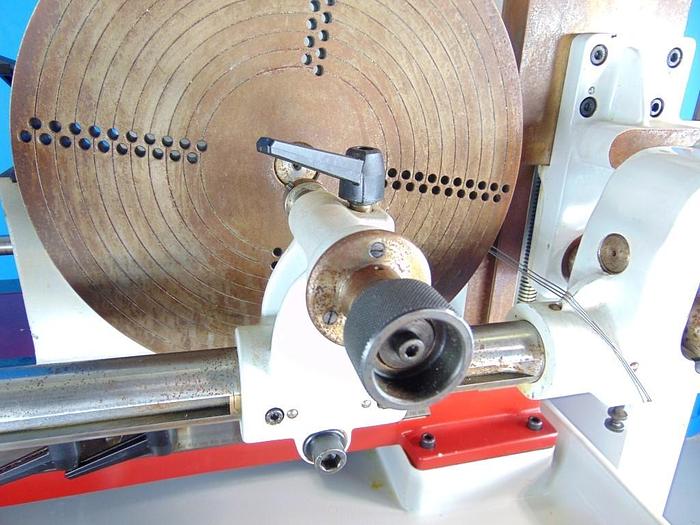

2 1/2" work chuck~ with 11/2" inside diameter to hold work piece

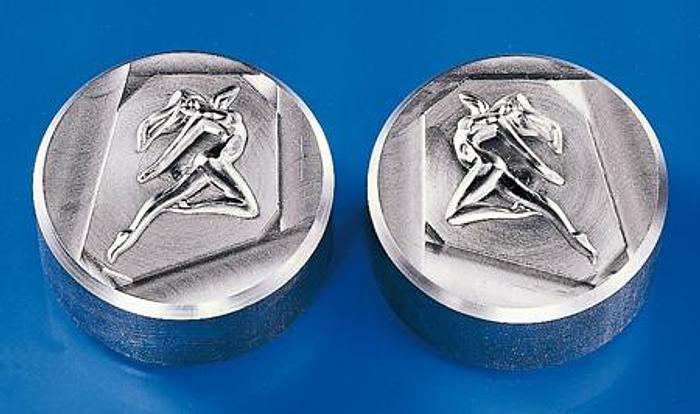

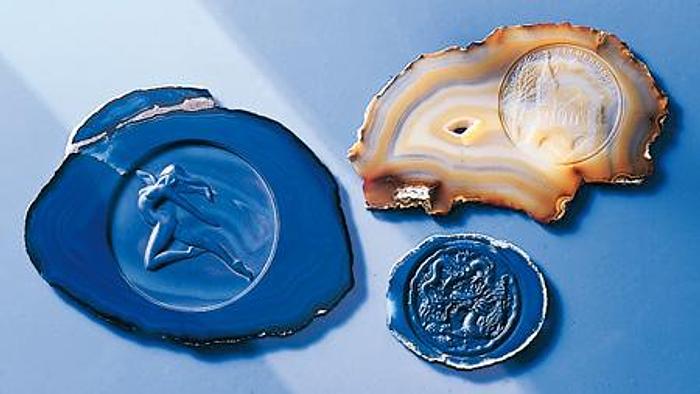

SAMPLES:
Specifications
Condition | Used |
Stock Number | 3016-330 |
Estimated weight | 2571 LBS |
