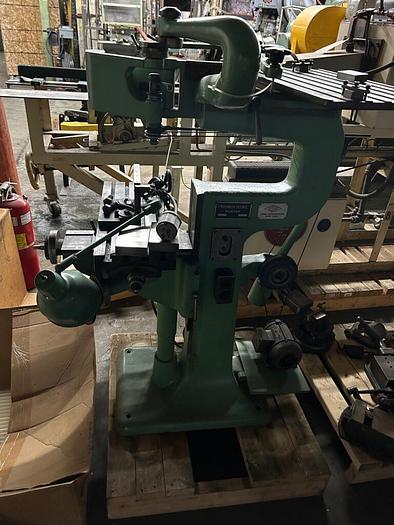

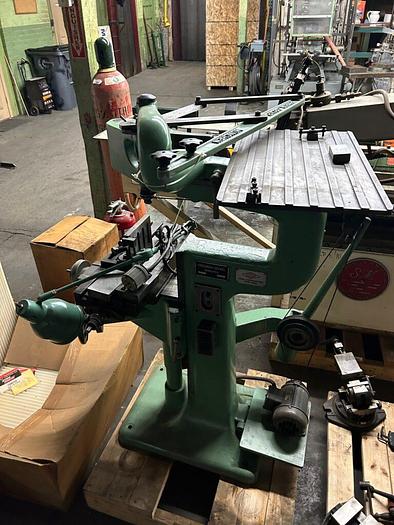

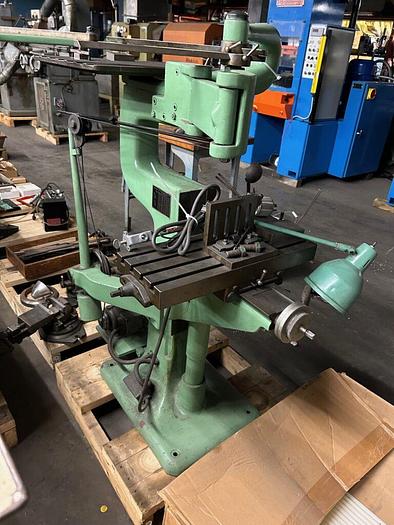

3429-330 Dekel Type G1L 2-Dimensional Pantograph / Engraver, Floor Model

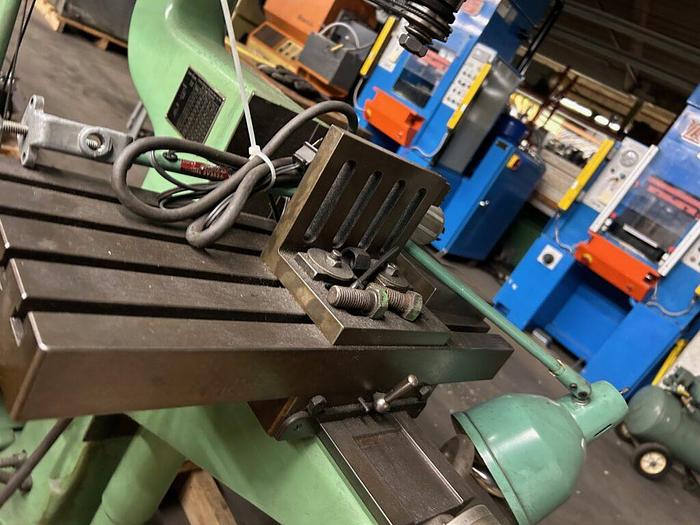

Working table 500 x 200 mm Gr. distance table to spindle 300 mm Transversal movement of the table 160 mm Longitudinal movement of the table 300 mm Stencil table 550 x 324 mm Rotatable by 360 Distance from pantograph arm to table 20 mm Large bore of the collet 6,0 mm Adjustability of spindle vertical fine/coarse 1 / 3 mm spindle speed 1900 - 15000 rpm. Small / large transmission ratio 1:1 / 1:50 Drive power 0,2 kW Dimensions 1235 x 1075 x 1240 mm Weight approx. 250 kg
