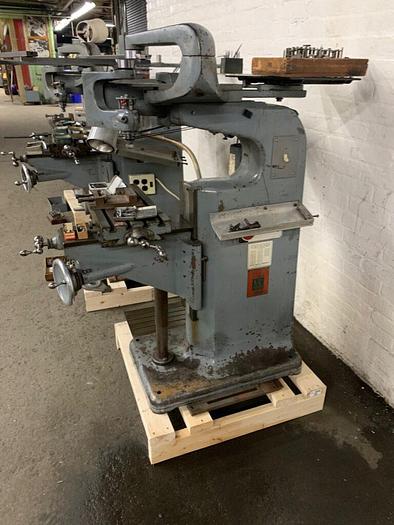

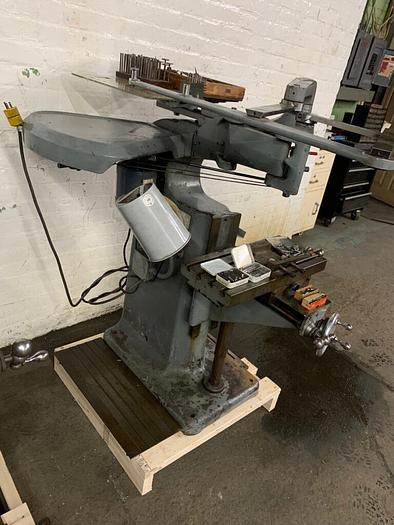

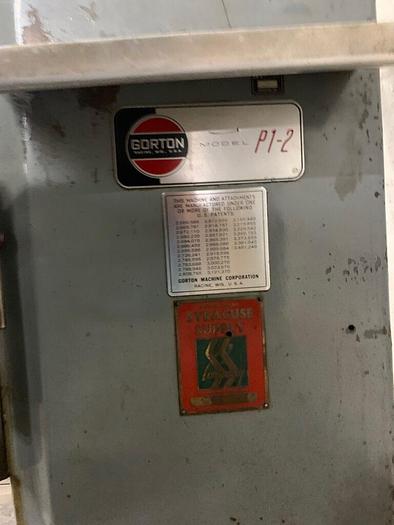

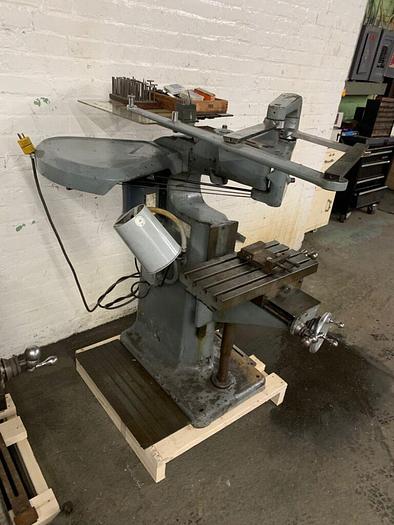

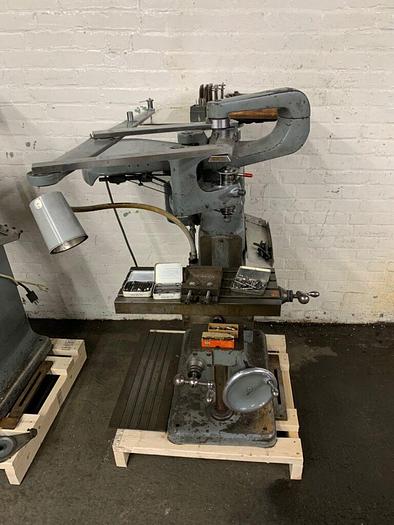

5949-330 Gorton 2-Dimensional Pantograph / Engraver Model P1-2, with Tooling
5949-330 Gorton 2-Dimensional Pantograph / Engraver Model P1-2, with Tooling
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
115V/1PH/60HZ
Equipped With:
3" vise
Cast iron base
work light

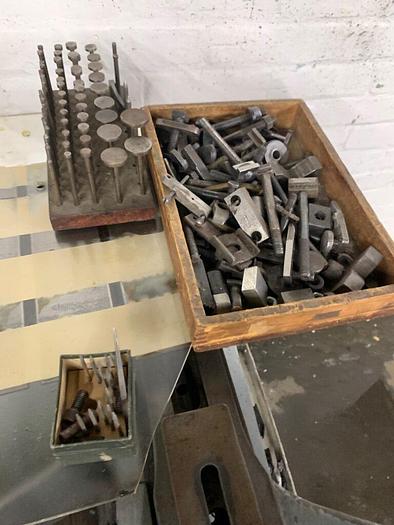

Clamps / workpiece hold downs

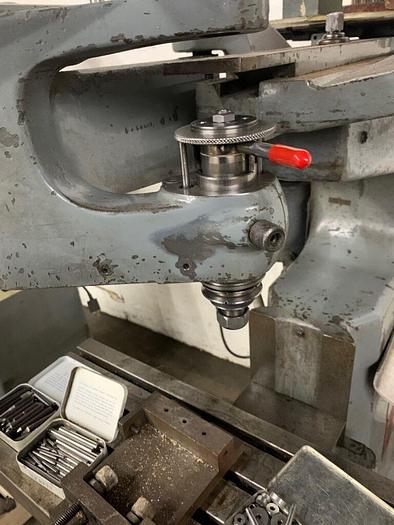

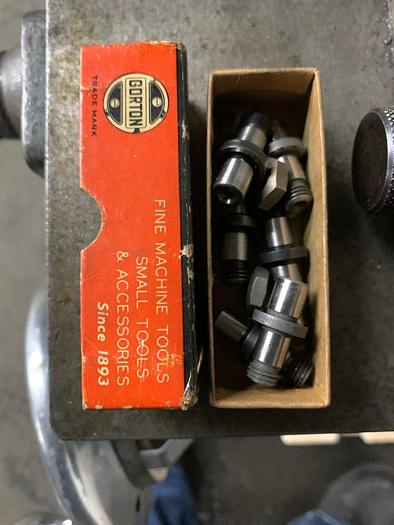

Collets /tooling as photographed
Recently taken from service from a local tool and die shop offered in excellent condition!
Specifications
| Condition | Used |
| Stock Number | 5949-330 |

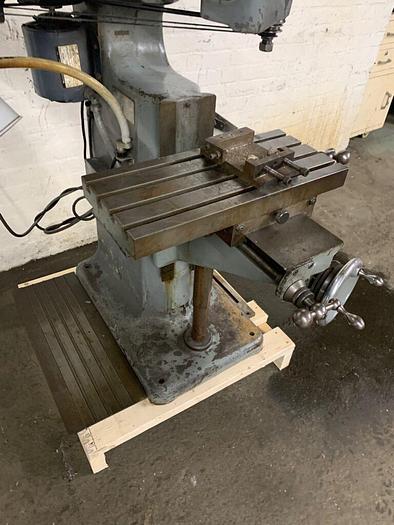

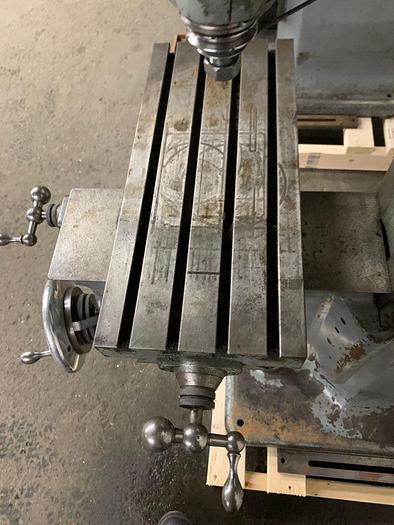

| Table working surface | 8" x 18" |
| Table dimensions, overall | 8-7/8" x 24" |
| Longitudinal feed capacity | 10" |
| Cross feed capacity | 8.75" |
| Vertical spindle feed | .31" |
| Vertical knee feed | 11.125" |
| Copy table cross movement | 5" |
| Slider head cross movement | 7.25" |
| Throat opening above column ways | 8" |
| Swing above column ways, maximum | 21" |
| Spindle nose to table, maximum | 11.625" |
| Spindle nose to table, minimum | 0" |
| (8) Spindle speeds, range | 4700 to 18,000 RPM |
| Motor | 1/4 HP |
| Overall dimensions | 35" x 42" x 48" high |
| Estimated weight | 640 lbs. |
