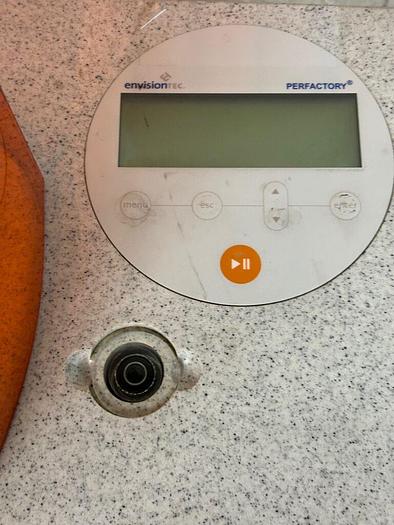

EnvisionTEC Perfactory 4 Mini XL 3D Printer – New 2007

Scroll Down To See Video! VOLTAGE 110V 1PH 50/60 CYCLE Process Vat photopolymerization (VPP) About section Perfactory® Perfactory® 4 Mini XL with ERM EnvisionTEC’s Perfactory 4 Mini XL with ERM is a low cost, easy maintenance and user friendly 3D rapid prototype manufacturing system. Using state-of-the-art Direct Light Projection technology from Texas Instruments®, the Perfactory 4 Mini XL produces the finest detail in the shortest period of time. It creates 3D models that range from the conceptual to the fully functional. Machine Properties * Perfactory® 4 Mini XL with ERM Lens System Lens f = 2.36” (60 mm) Lens f = 2.95” (75 mm) Build Envelope (Factory Adjustable at Time of Order) 4.5” x 2.8” x 8.66” (115 x 72 x 220 mm) 3.3” x 2.1” x 8.66” (84 x 52.5 x 220 mm) Projector Resolution 1920 x 1200 Pixels Native Pixel Size 0.0023” (60 µm) 0.0017” (44 µm) Pixel Size With ERM 0.0012” (30 µm) 0.0009” (22 µm) Dynamic Voxel Resolution in Z (User Adjustable and Material Dependent)** 0.0006” (15 µm) to 0.006 (150 µm) Data Handling STL Warranty 1 Year Included * Specifications are subject to change without notice. ** A voxel is a volumetric pixel. Materials Available Ideal for ABStuff, ABflex General purpose similar to ABS plastic ABS Flex (Requires factory fitted UV Option to use these materials) General purpose similar to ABS plastic with flexible characteristics EC500, EC3000 Casting HTM Series High temperature molding, architectural models, plating LS600, EC1000, WIC100G, WIC300, E-Shell® 200 General purpose Photosilver High temperature applications with fine detail PIC 100, EPIC Casting R5, R5 Gray, R11 General purpose, master models RCP30, RC31, RC70, RC90 High temperature applications System Properties » Build speed in constant through the build up to 1” (25 mm) at 0.0039” (100 µm) voxel thickness » Economic material use with no vat » Very few moving parts and minimal consumable components make the system user serviceable » Changeover between materials is quick and easy Footprint (L x W x H): 29” x 19” x 53” (73 x 48 x 135 cm) Weight: 188 lbs (85 kg) Electrical Requirements: 100-120V, 5.4 Amps, 220-240V, 2.4 Amps Patents Pending.
