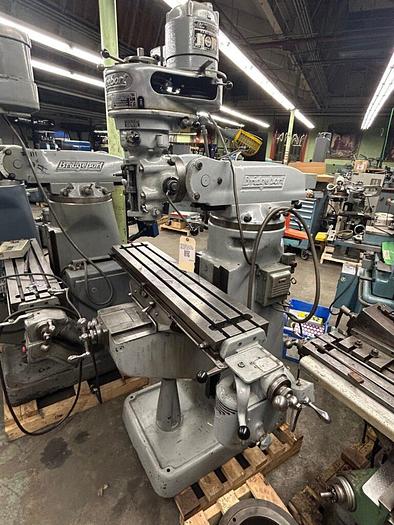

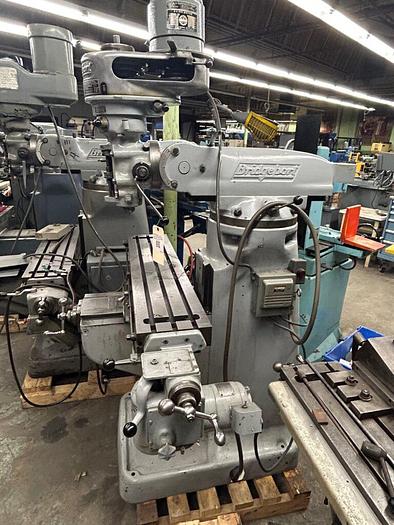

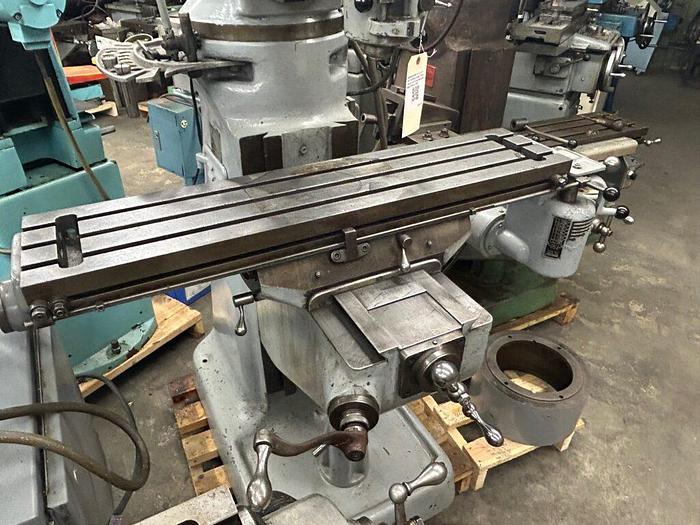

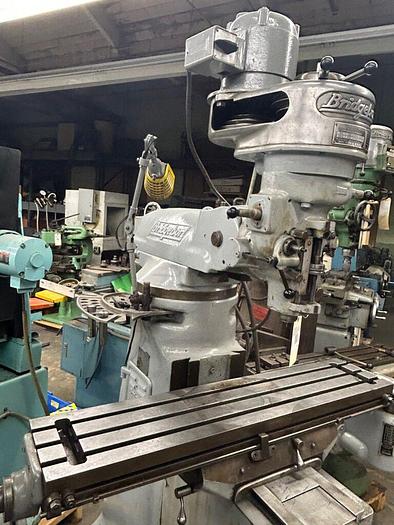

Bridgeport 9″ x 32″ 1 HP, 8-Speed Ram Type J-Head Vertical Milling Machine
Bridgeport 9″ x 32″ 1 HP, 8-Speed Ram Type J-Head Vertical Milling Machine
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
220V/3PH/60HZ Spindle Type R8 Equipped With: 7 Assorted - R8 Collets Work light Power table feed
Specifications
Condition | Used |
Stock Number | 5918-470 |
Table size | 9" x 32" |
Longitudinal table travel | 20" |
Cross table travel | 12" |
Vertical travel of knee | 16" |
Spindle speeds | 80 - 2720 RPM (8) |
Motor | 1 HP |
Quill travel | 5" |
Vertical capacity | 0 - 18-1/2" |
Throat capacity | 6-1/4" - 18-3/4" |
Maximum workpiece weight | 300 lbs. |
Overall dimensions | 76" x 63" x 77" high |
Estimated weight | 2130 lbs |
