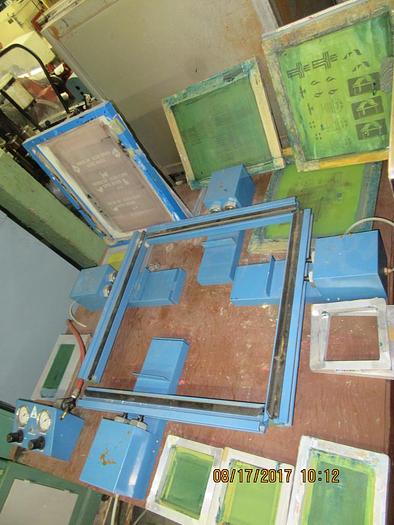

9253-700 Accu-Screen Pneumatically Operated Silk Screen Machine
9253-700 Accu-Screen Pneumatically Operated Silk Screen Machine
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
4 - Pneumatic holders to hold work piece down over material to
complete the screen printing process
Equipped With:
38-miscellaneous screens ~ as seen & photographed
Accu-Stretch Screen Stretching System
Printing at higher, uniform tensions provides faster production speeds, improved registration, longer screen and squeegee life, more consistent ink deposits and lower ink usage. The patented Accu-Stretch provides these benefits while eliminating complicated stretching systems, training and expensive tools. Self-equalizing stretch clamps provide uniform tension while minimizing fabric waste by enabling you to stretch directly from the fabric bolt. The modular design enables Accu-Stretch to be expanded to virtually any size and width of fabric and frame materials.
*The available sizes are the measurement of the inner area of the stretch supports, so you will want to choose a size that is slightly larger than the largest frame you will be using.
Product Features
Infinite screen tension adjustment throughout the entire printing area
Substantially increased screen mesh tensions
Accommodates all types of fabric: polyester, nylon, stainless steel and metalized polyester
Total tension control
Unique brace bar provides maximum prebowing of the frame
Increased production through elevated precise tension levels
Save fabric - stretch directly from bolt
Reliable and accurate pneumatic design superior to any other method
Operates on very low air pressure
Maintenance free design throughout
No assembly or mounting required
Complete frame size adjustability
Specifications
Condition | Used |
Stock Number | 9253-700 |
Maximum screen capacity | 19-1/2" x 24" |
Overall dimensions | 48" x 48" x 40" high |
Estimated weight | 150 lbs. |
Totally automatic | easy to operate, no tools or training required |
Stretch all frame materials | wood, aluminum, steel, etc. |
