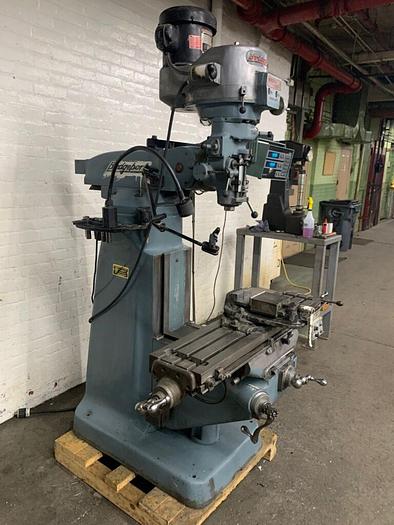

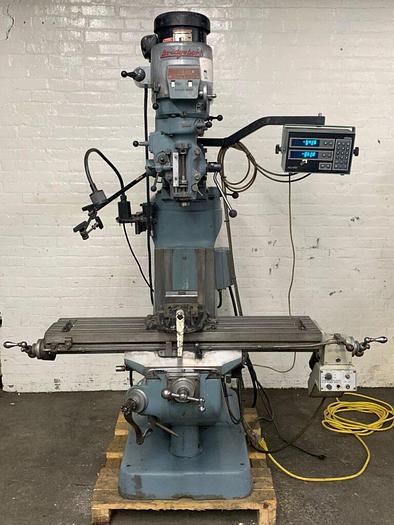

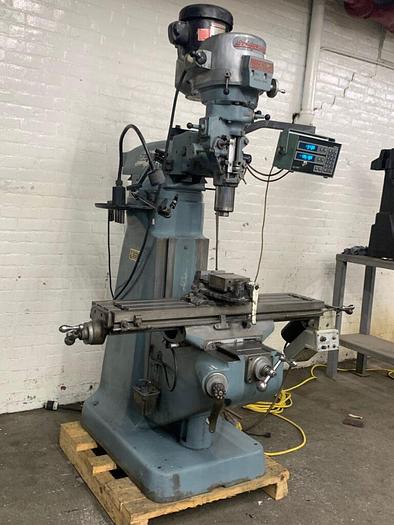

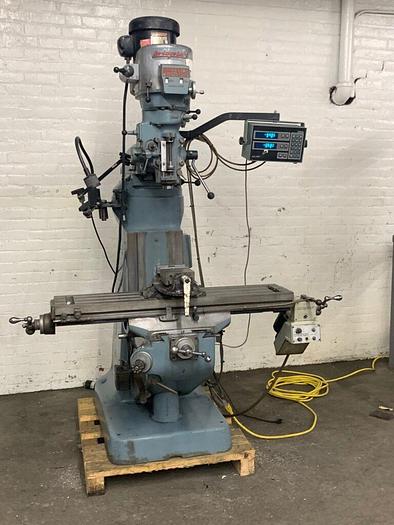

Bridgeport Series 1, 2HP Vertical Knee Mill with 6″ Vise & Acu-Rite 2-Axis DRO
Bridgeport Series 1, 2HP Vertical Knee Mill with 6″ Vise & Acu-Rite 2-Axis DRO
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

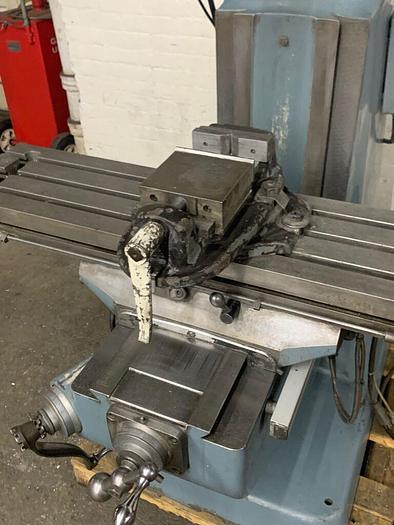

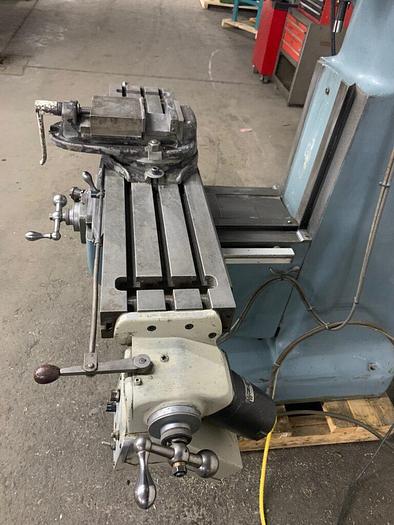

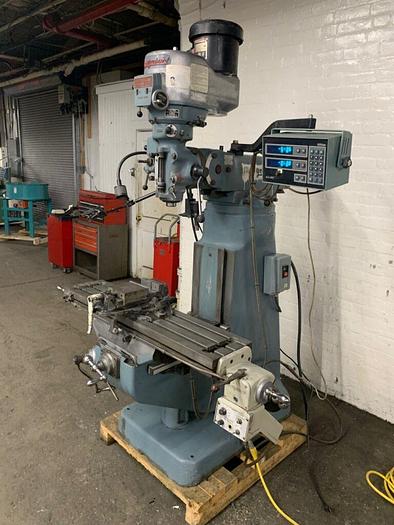

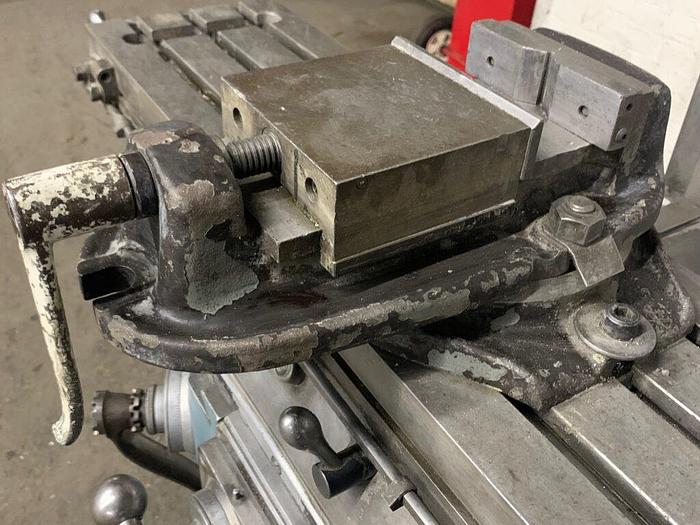

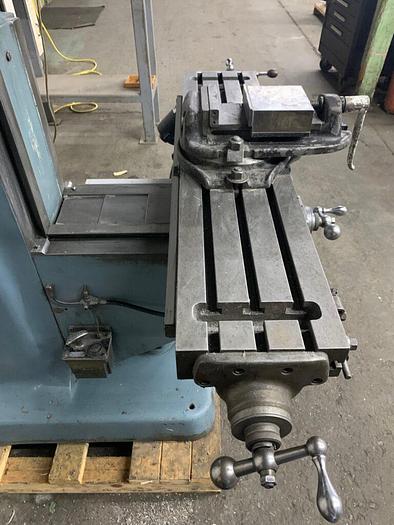

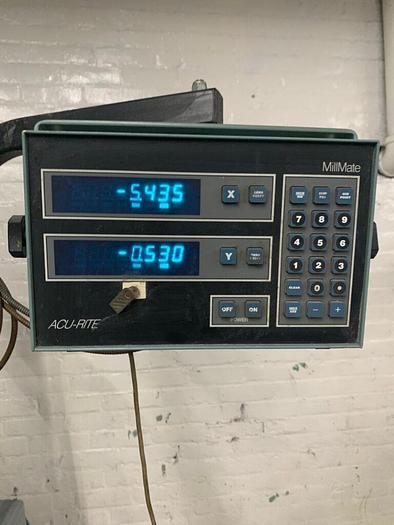

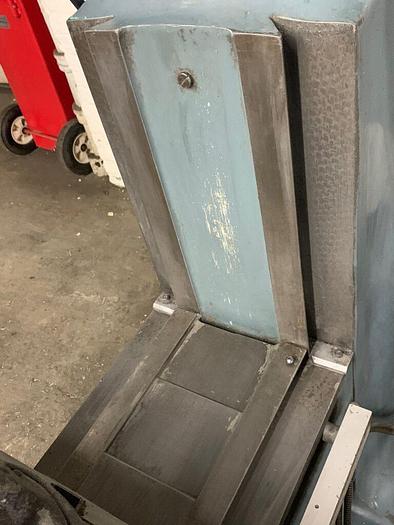

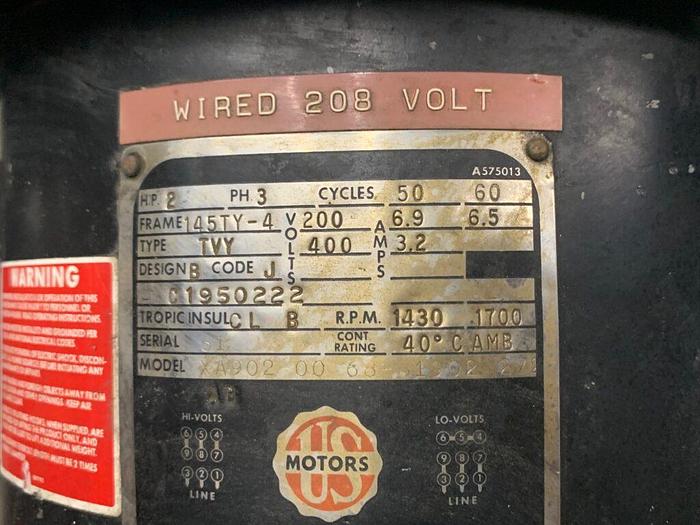

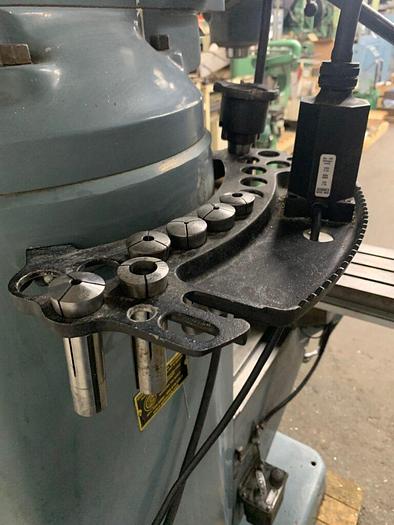

230V/3PH/60HZ Equipped With: Original flake marks on the bed ways Acu-Rite 2-Axis DRO Work light 6" Milling vise 6 Assorted R8 collets 1 Indexable End Mill
Specifications
| Year | 1978 |
| Condition | Used |
| Serial Number | 12BR189052 |
| Stock Number | 5937-470 |
| Motor | 2 HP |
| Table size | 9" x 42" |
| Longitudinal table travel | 30" |
| Cross travel | 12" |
| Knee vertical travel | 16" |
| Quill travel | 5" |
| Spindle speeds | 60-4200 RPM, variable |
| Vertical capacity | 0 - 18" |
| Throat size | 6-3/4" minimum to 18-3/4" maximum |
| Drill capacity | 3/4" manual/ 3/8" power feed |
| Spindle nose taper | R-8 |
| Overall dimensions | 76"(w) x 63"(d) x 78" high |
| Estimated weight | 2,130 lbs |
