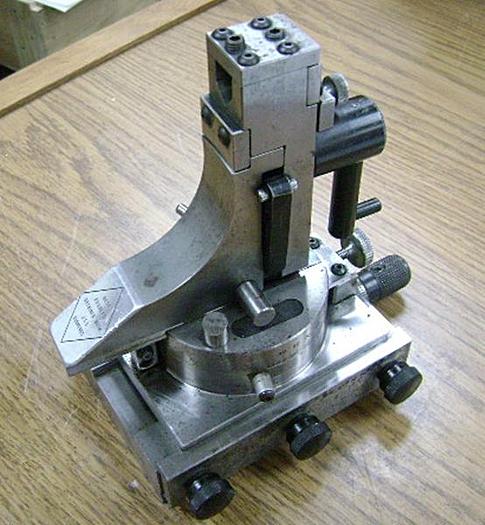

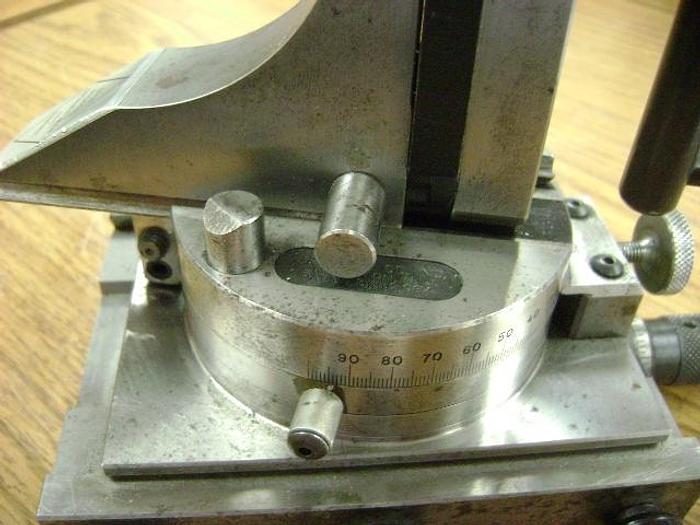

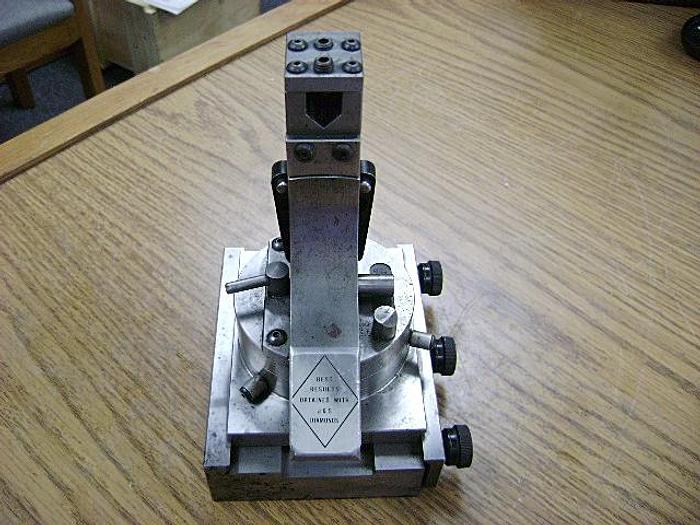

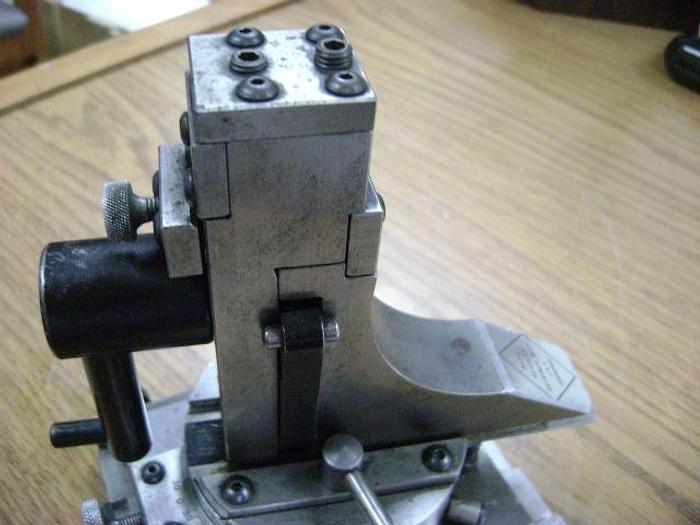

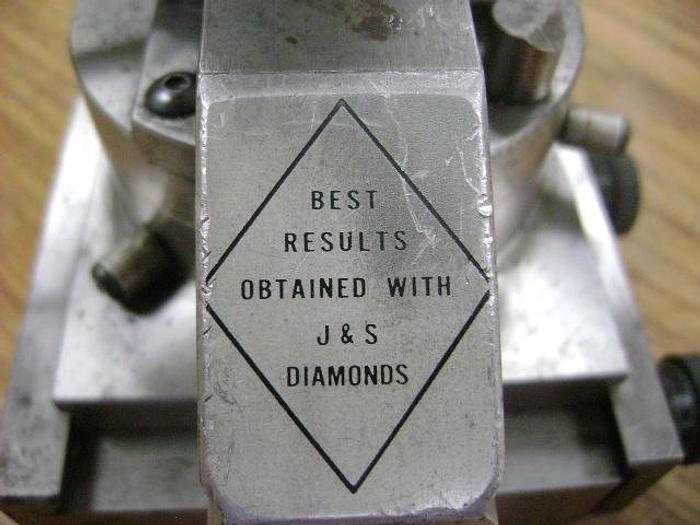

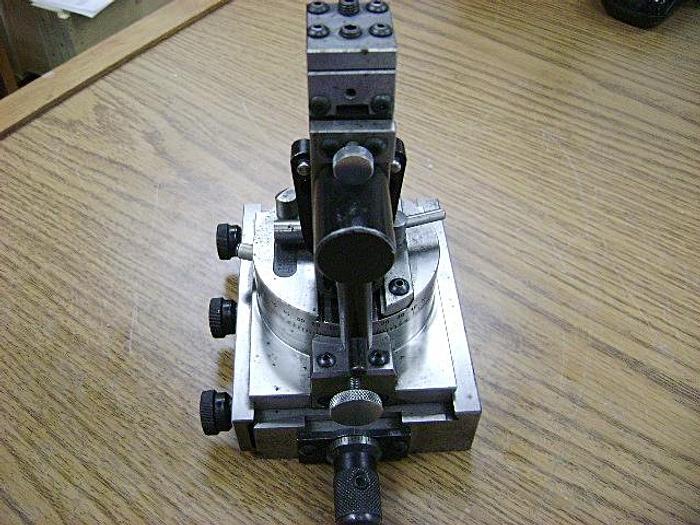

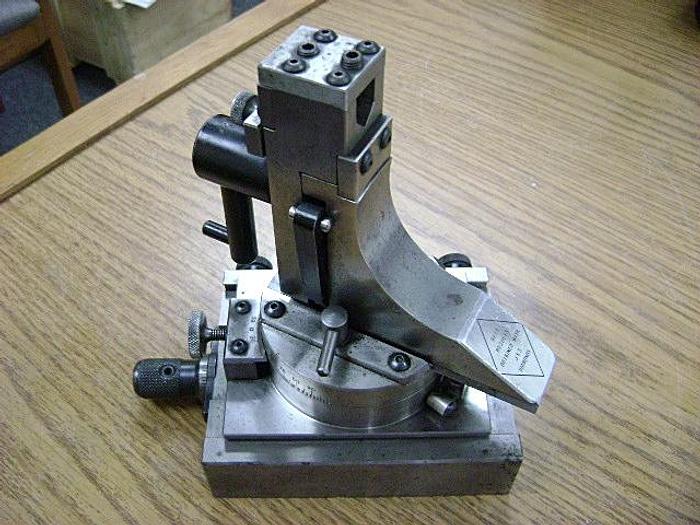

1491-700 J&S Fluidmotion Radii & Angle Wheel Dresser for Tool & Cutter, Universal & Surface Grinders, Model #RFG-50
1491-700 J&S Fluidmotion Radii & Angle Wheel Dresser for Tool & Cutter, Universal & Surface Grinders, Model #RFG-50
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Dresses two angles tangent to a radius in one continuous motion with ,0001" accuracy
Equipped With:
Removable "G" micrometer base
Sold less diamond tool
Specifications
| Condition | Used |
| Stock Number | 1491-700 |
| Concave radius, minimum/ maximum | 1/32" to 1-1/2" |
| Convex radius minimum/ maximum | 0" - 1-1/2" |
| Maximum wheel diameter | 7" |
| Length of angular travel | 1-1/4" |
| Diamond height above table | 5" |
| Base dimensions | 3-3/16" x 4" |
| Overall dimensions | 6-1/4" x 4-1/4" x 6-3/4" high |
| Estimated weight | 11 lbs. |
