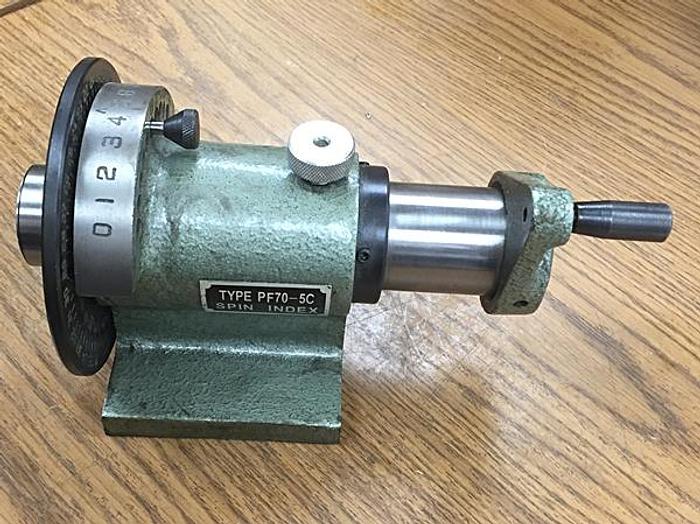

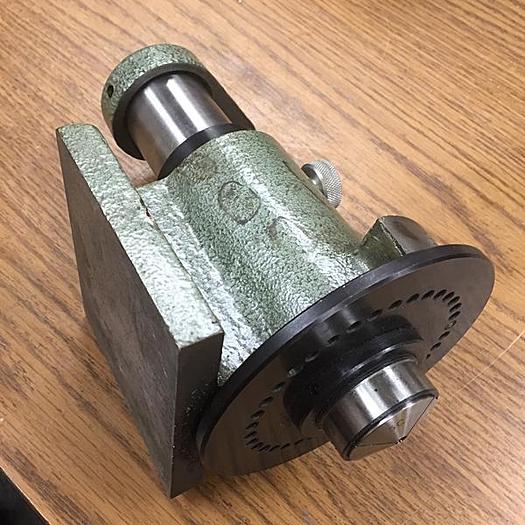

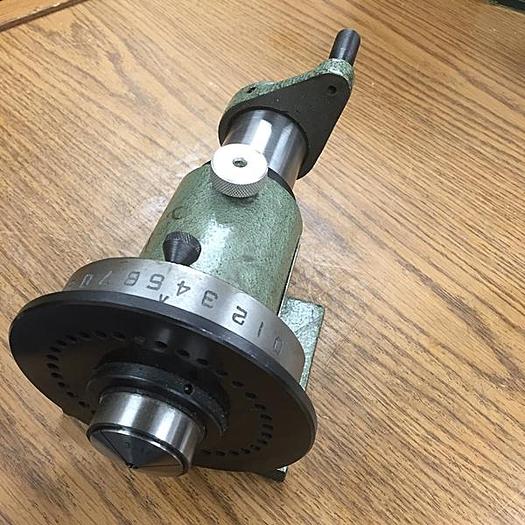

2344-700 5C Indexing Spin Jig Fixture, Type #PF-70
2344-700 5C Indexing Spin Jig Fixture, Type #PF-70
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Accepts 5C collets to 1-1/8"

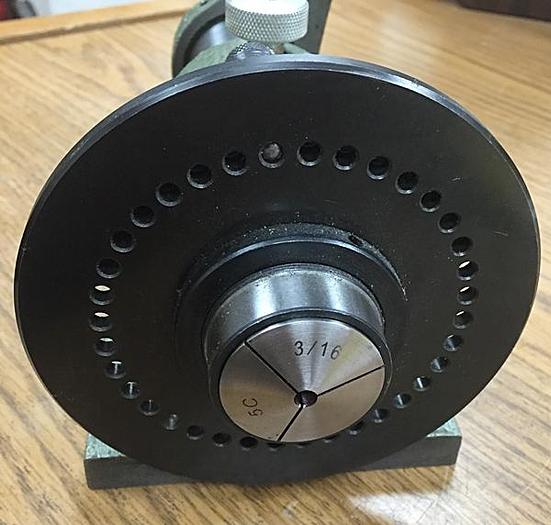

36 - hole index plate in 10 degree increments

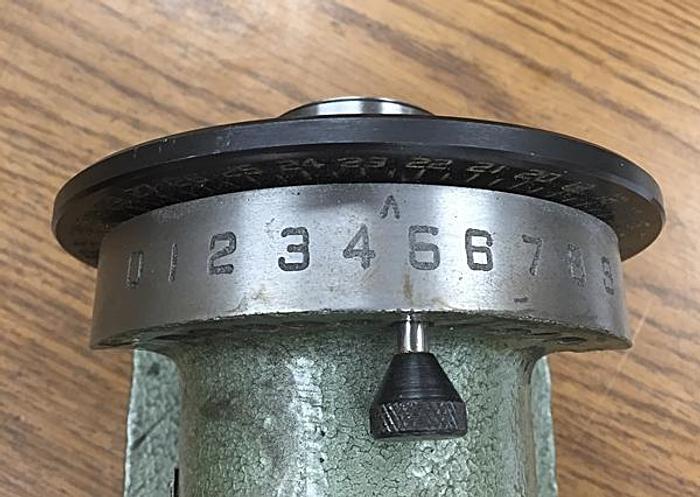

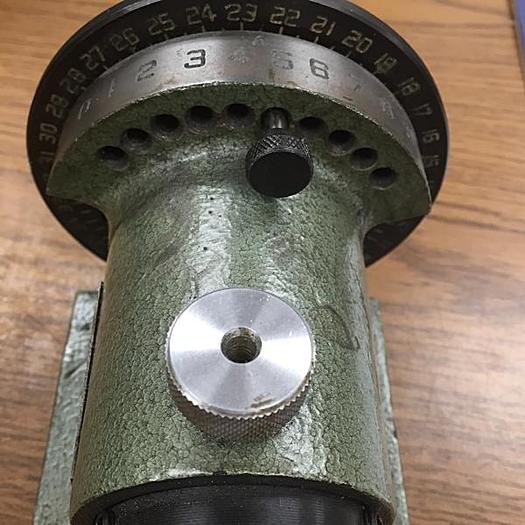

Vernier on back plate calibrated every 1 degree
Collet locks in position for accuracy under load

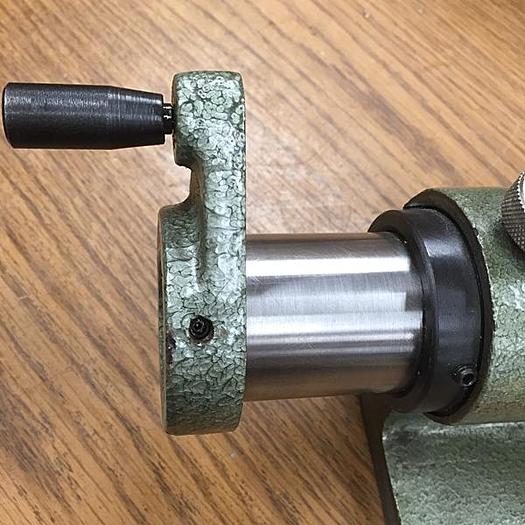

2-5/16" spindle travel for flute grinding
Equipped With:
1 - 3/16" 5C collet
For use on grinders, milling machines & layout work
Specifications
| Condition | Used |
| Stock Number | 2344-700 |
| Overall dimensions | 9-1/2" x 5" x 5-1/2" high |
| Estimated weight | 15 lbs. |
