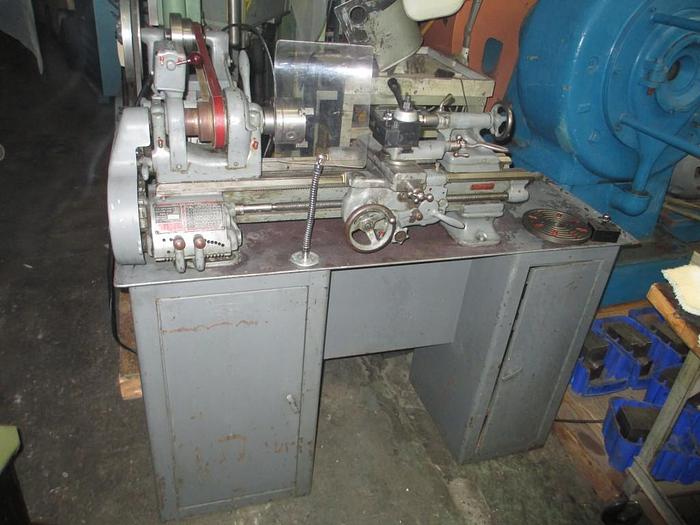

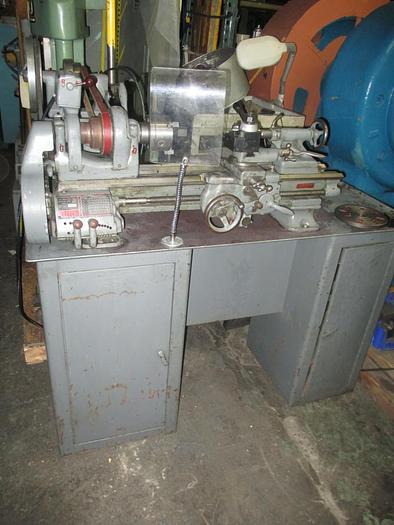

8860-440 South Bend 9″ x 16″ Precision Belt Driven Lathe
8860-440 South Bend 9″ x 16″ Precision Belt Driven Lathe
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
115 V / 1 Ph / 60 Hz
Equipped With:
3 Jaw Chuck
8" Face Plate
Aloris Tool Post With
4 Tool Holders
Cabinet Stand
Owner's Manual
Specifications
| Condition | Used |
| Stock Number | 8860-440 |
| Swing Over Bed & Saddle | 9-1/4" |
| Swing Over Cross Slide | 5" |
| Tailstock / Headstock Centers | #2MT |
| Compound Rest, Cross Slide Travel | 5-58" |
| Tailstock Spindle Travel | 2-1/8" |
| Spindle Speeds | 50-1270 RPM (12) |
| Hole Through Spindle | 3/4" |
| Max. Collet Capacity | 1/2" |
| Spindle Nose | 1-1/2" - 8" |

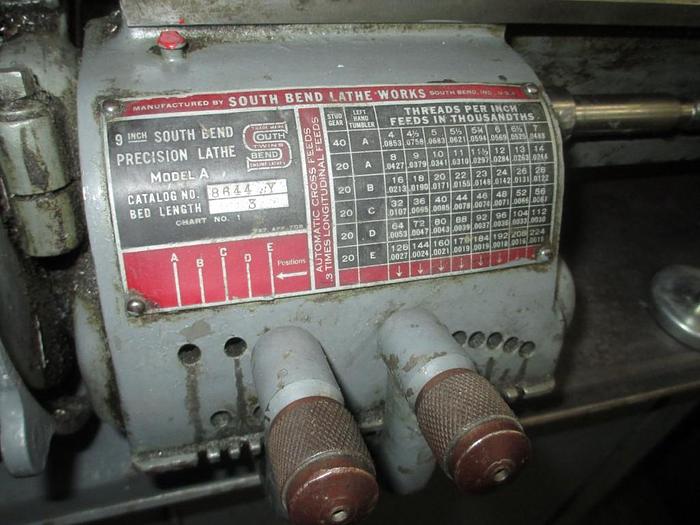

| Threading | 4 to 224 TPI (48 Pitches) |
| Longitudinal Feeds | .0015" to .0853" Per Revolution (48) |
| Cross Feeds | .004" to .0255" Per Revolution (48) |
| Motor | 1/2 HP |
| Overall Dimensions | 48" x 26" x 52" H |
| Weight | 750 Lbs (approx) |
