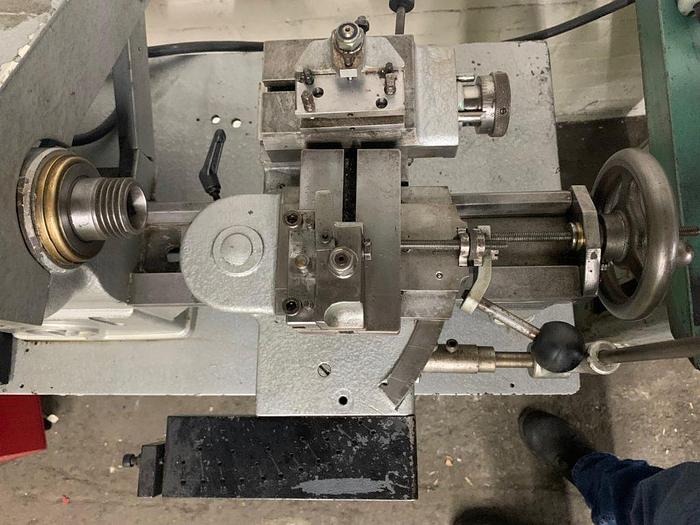

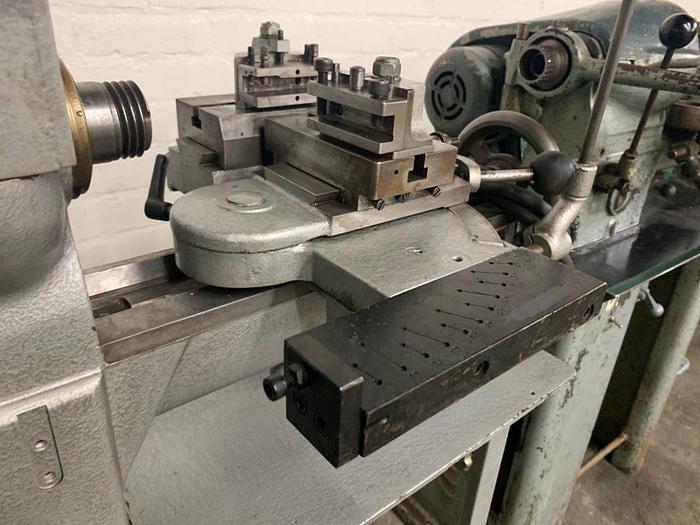

5999-440 Benzinger Inside Turning Horizontal Ring Lathe with Precision Radius Attachment & Lever Operated Cross Slide
5999-440 Benzinger Inside Turning Horizontal Ring Lathe with Precision Radius Attachment & Lever Operated Cross Slide
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
220V/3PH/60HZ
Radius adjustable from 30 - 50mm ( 1/8" - 2")
Ring sizes and widths of rings are set of separate dials
No measuring required
By exchanging the from radius slide, the R3D allows the machining of the inside of wedding rings cylindrically
Equipped With:
Collet closer
Radius attachment
Lever Operated Cross Slide
Benzinger stand
Variable speed drive
Original Flake marks on the ways
Two tool holders
Specifications
Condition | Used |
Stock Number | 5999-440 |
Overall dimensions | 40" x 21" x 50" high |
Estimated weight | 210 kg. ( 462 lbs.) |
