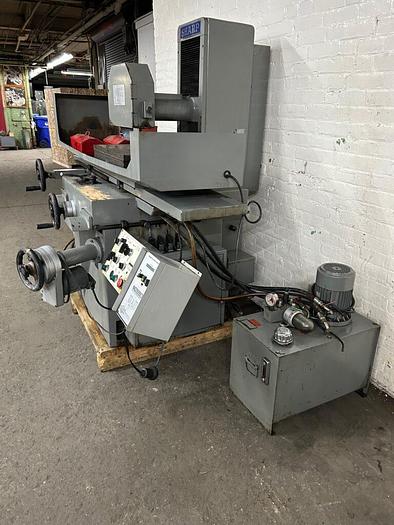

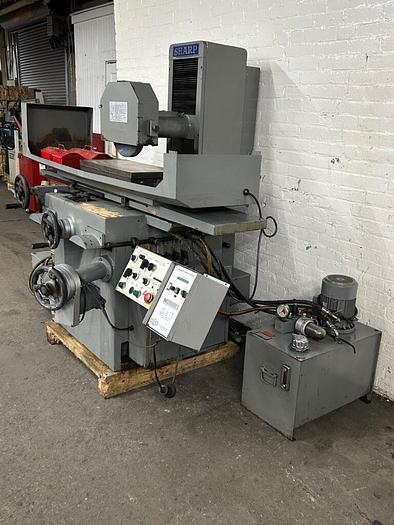

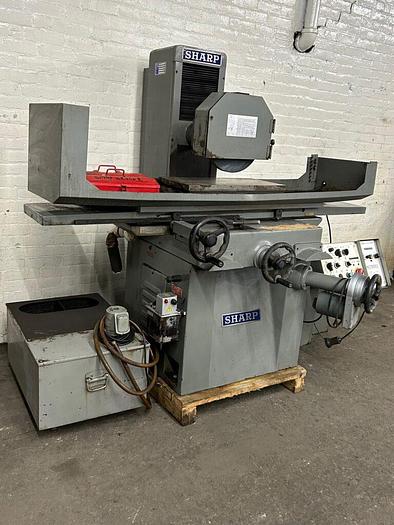

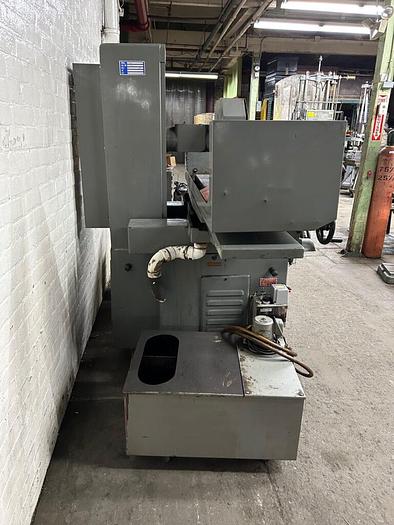

5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
5291-420 Sharp Grinding Machine Surface Grinder Model SH-1224 with Servo Driven (Z) Downfeed
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
220 Volt / 3 Phase / 60Hz
Automatic Cross Feed

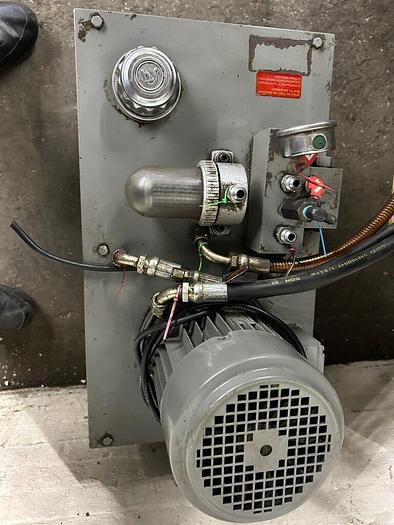

Automatic Lubrication System
Operation Type Automatic
Equipped With:

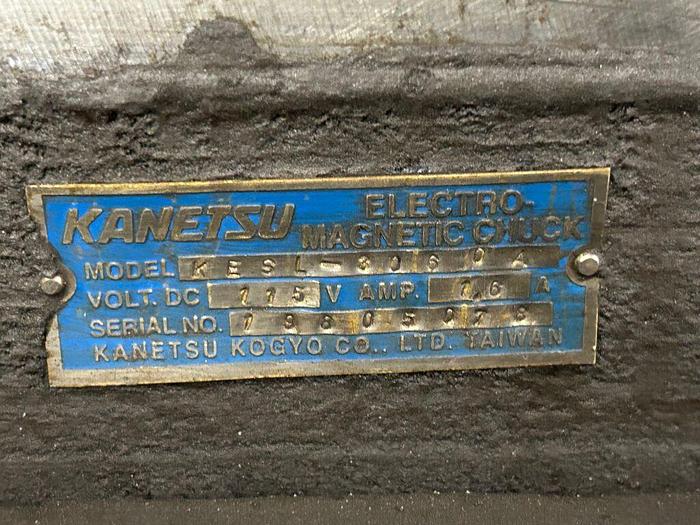

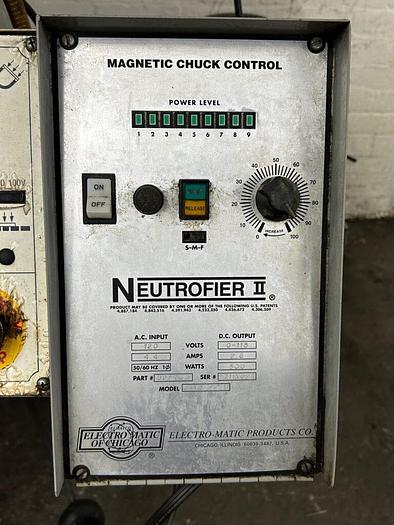

Kanetsu Magnetic Chuck And Neutrofier 11 control

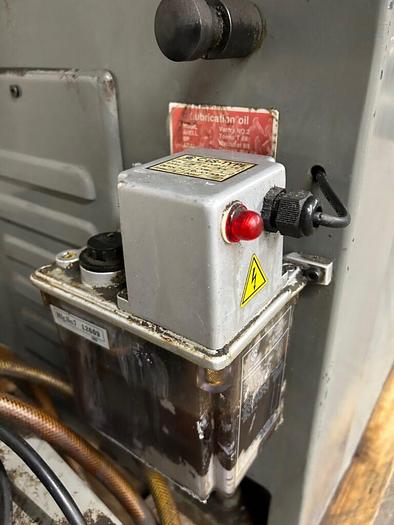

Automatic Lubrication System

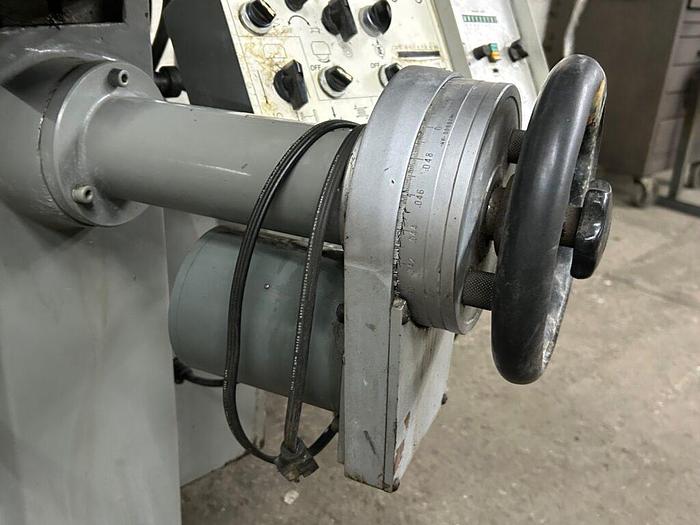

Servo driven downfeed system (Z)
Specifications
| Condition | Used |
| Stock Number | 5291-420 |
| Overall Length | 24 in |
| Magnetic Chuck Size | 10 in x 20 in |
| Grinding Wheel Dia. | 14 in |
| Overall Width | 12 in |
| Max. Grinding Length | 20 15/32 in |
| Wheel Width | 1" |
| Max. Grinding Width | 8 1/8 in |
| Table Dimensions | 11.6 in x 23.6 in |
| Grinding Wheel Width | 1 in |
| Longitudinal Table Speed | 196 to 984 in/min |
| Crossfeed Handwheel per Revolution | 0.200" |
| Crossfeed Handwheel per Graduation | 0.0005" |
| Downfeed Handwheel per Graduation | 0.0002" |
| Longitudinal Table Travel | 18-3/4" |
| Spindle to Table | 19-5/16" |
| Crossfeed Table Travel | 6-3/4" |
| Wheel Bore | 5" |
| Downfeed Handwheel per Revolution | 0.050" |
| Spindle RPM | 10,000 |
| Cross Handwheel Feed per Revolution | 0.2000 in |
| Spindle Center to Table Distance | 19 5/16 in |
| Intermittent Feed | 0.0040 to 0.4000 in/min |
| Longitudinal Travel | 18 3/4 in |
| Hydraulic Feed | 6.6 to 82 fpm |
| Horsepower | 3 |
| Crossfeed Handwheel Graduation | 0.0005 in |
| Coolant Fed | Non-Coolant Fed |
| Spindle Speed | 10,000 RPM |
| Vertical Handwheel Graduation | 0.0002 in |
| Grinding Wheel Bore | 5 in |
| Machine Weight | 4,700 lb |
