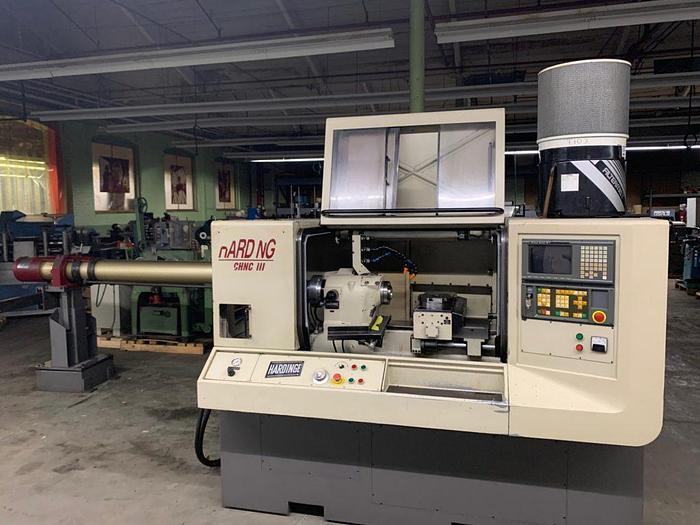

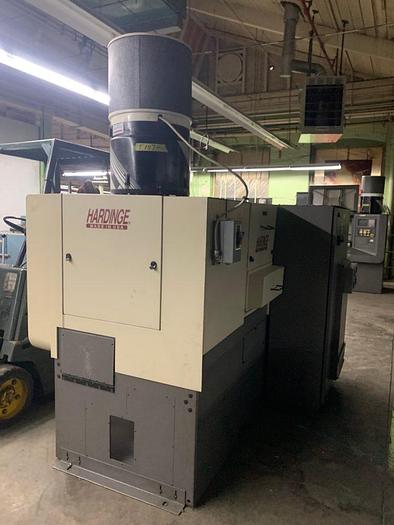

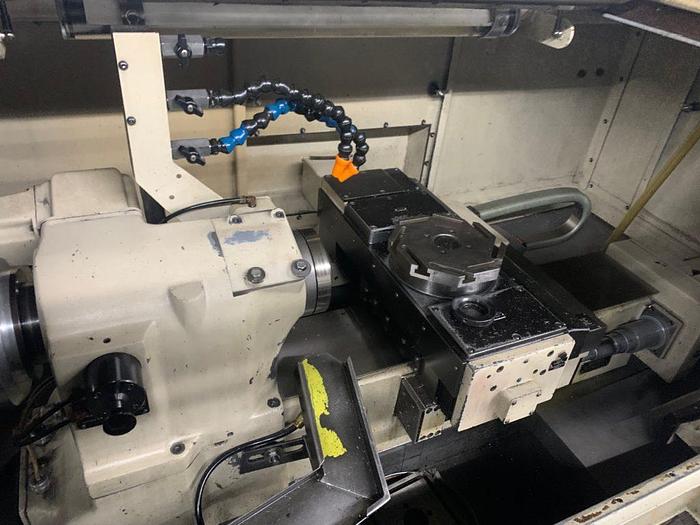

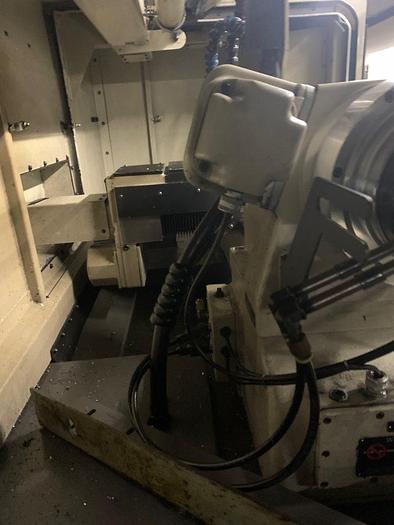

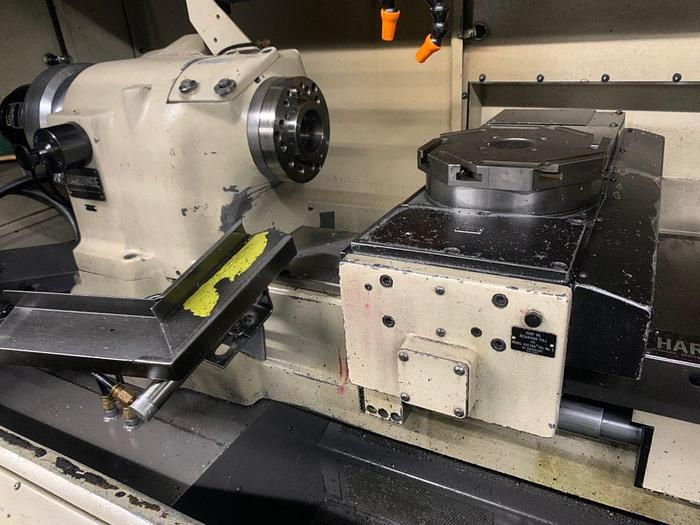

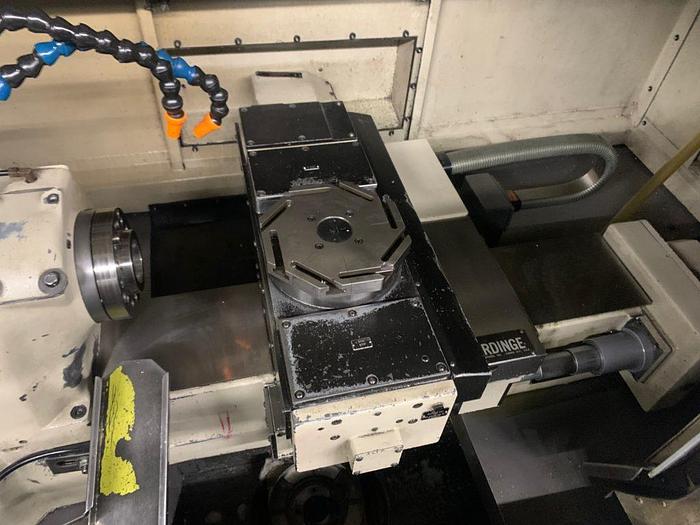

Hardinge CHNC-III CNC LATHE, Fanuc 18T, Hardinge Bar Feed
Hardinge CHNC-III CNC LATHE, Fanuc 18T, Hardinge Bar Feed
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description

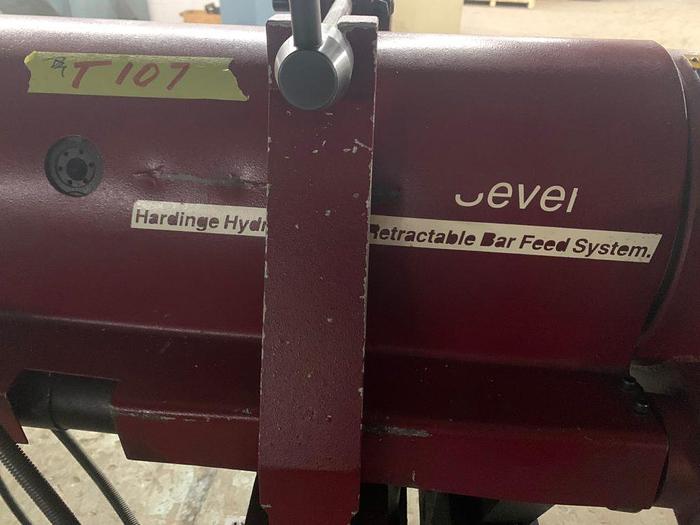

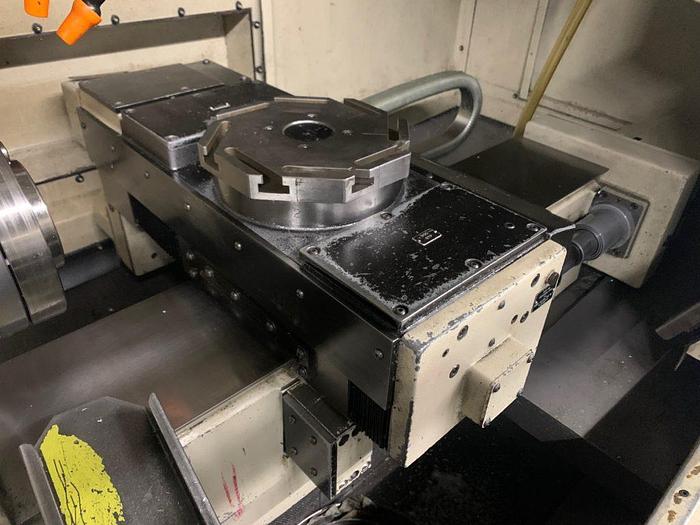

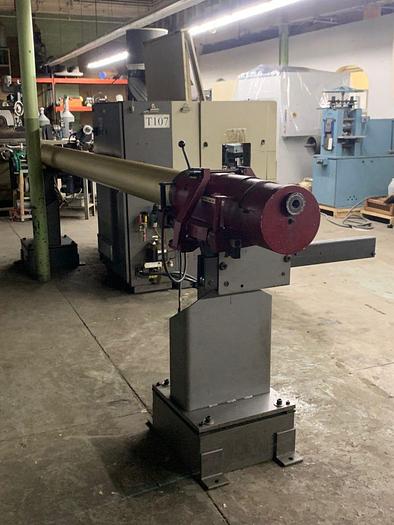

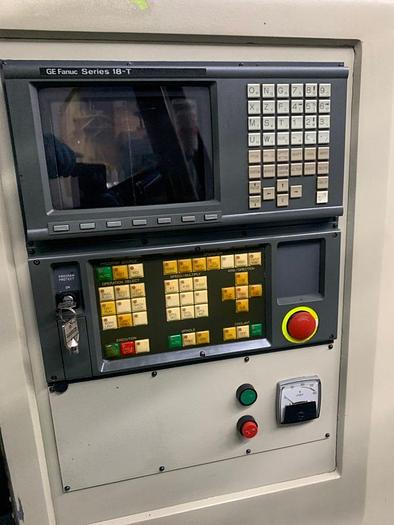

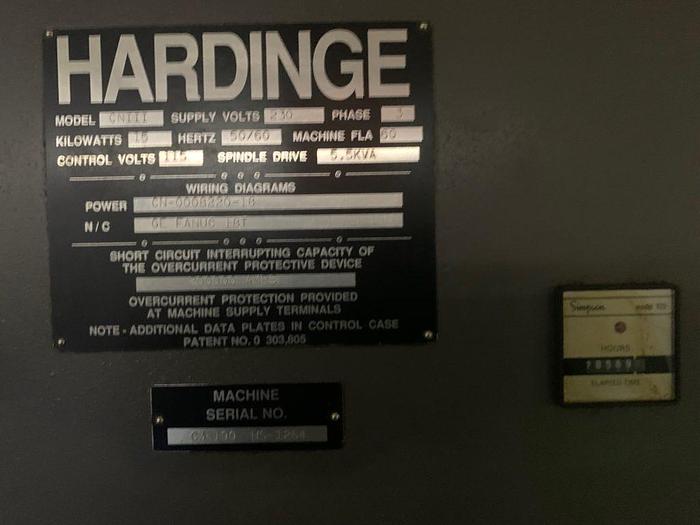

Scroll Down To See Video! S/N C3-190-HS-1264 AC DIGITAL DRIVE SYSTEM: (15 MINUTE RATINGS USED FOR POWER AND TORQUE SPECIFICATIONS) (BASE SPEED TORQUE RATINGS 1250 RPM) TOP PLATE AND TOOLING: RECOMMENDED AMBIENT OPERATING: COOLANT TANK: Equipped With: FANUC 18T CONTROL HARDINGE HARMATIC HYDRAULIC BAR FEED PARTS CHUTE COLLETS COOLANT TANK PARTS REMOVAL SYSTEM
Specifications
| Condition | Used |
| Stock Number | 5300-440 |
| Voltage | 230V, 3PH, 60 CYC |

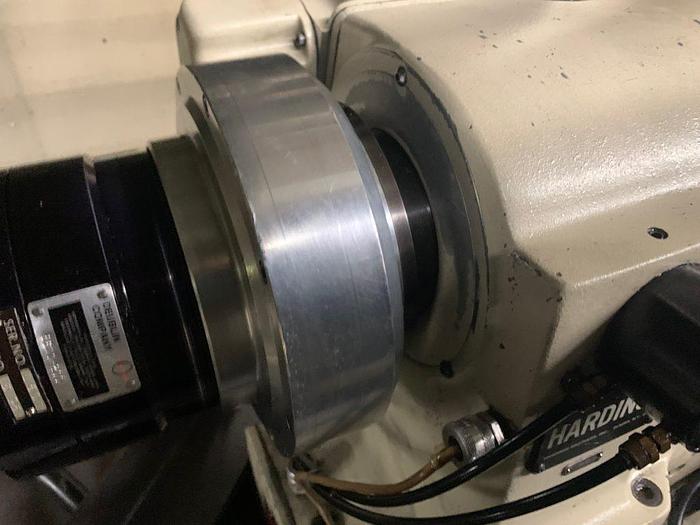

| SPINDLE CONFIGURATION (ANSI) | A2-5", 16C |
| ROUND COLLET (THRU CAPACITY) | 1.625" |
| HANG WEIGHT W/WORKINGHOLDING DEVICE | 75 LBS. (MAX.) |
| COLLET CLOSER STROKE | 1/2" |
| TURNING DIAMETER | 8" (MAX.) |
| THREADING DIAMETER | 8" (MAX.) |
| FIXTURE DIAMETER | 9" (MAX.) |
| STANDARD | 10 HP |
| TORQUE RATING | 42 FT. LB. |
| SPEED RANGE (1 RPM STEPS) | 50 TO 5000 |
| NUMBER OF TOOL POSITIONS (STANDARD) | 8 |
| AVAILABLE | 4 |
| X-AXIS TRAVEL | 4.5" MAX. |
| Z-AXIS TRAVEL | 12.0" MAX. |
| X-AXIS TRAVERSE RATE | 400 IPM (MAX.) |
| Z-AXIS TRAVERSE RATE | 400 IPM (MAX.) |
| DISTANCE FROM SPINDLE TO TOP PLATE FACE | 12.5" (MAX) |
| INDEXING TIME (STATION 1 TO 8) | 2 SECONDS |
| STATION TO STATION (UNLOCK, INDEX, RELOCK) | 1 SECOND |
| TURRET INDEXING REPEATABILITY | .000010" |
| AXIS REPEATABILITY (OVERALL) | .000050" |
| SWING DIAMETER OVER BED/WAY COVER (MAX) | 14" |
| WORKPIECE DIAMETER X LENGTH (MAX.) | 2.75" |
| COMPRESSED AIR REQUIREMENT | 70 TO 90 PSI |
| TEMPERATURE | 32 TO 104 DEG. F / 0 TO 40 DEG. C |
| CAPACITY | 30 US GALLONS |
| COOLANT FLOW RATE | 6 TO 8 GPM |
| APPROX. WEIGHT | 6,000 LBS. |
| SPINDLE CENTERLINE HEIGHT | 47.375" |
| MACHINE DIMENSIONS | 92.75" x 70" x 64.5" High (90" with guard door raised) |
