Complete Fire Assay Laboratory by Cupellation
Complete Fire Assay Laboratory by Cupellation
Contact us for price
Location:Pawtucket, RI
orCall 1-800-619-GOLD
Description
Introduction to Assaying
The assaying process is a necessary step to determine the quantity of precious metals present in an alloy. Cupellation is one operation of the assay process in which a sample of gold, wrapped in lead foil, is melted in a special crucible known as a cupel: this cupel has the capacity of absorbing the non-precious metals contained in the gold alloy. The weight of the gold alloy sample is usually about 250/1000. Although this is the most ancient method to determine the purity of an alloy, assaying by means of cupellation gives greater precision than more modern methods (fluorescent or x-ray spectrophotometry) and is considerably less expensive.

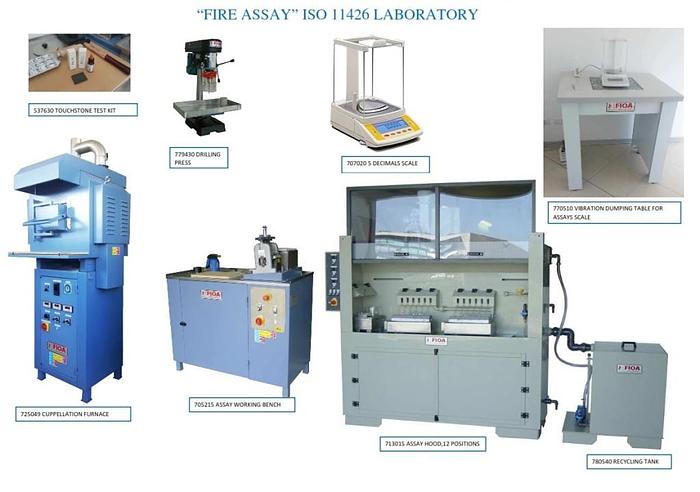

Consisting of:

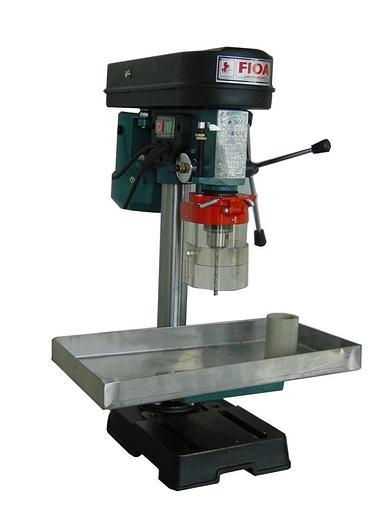

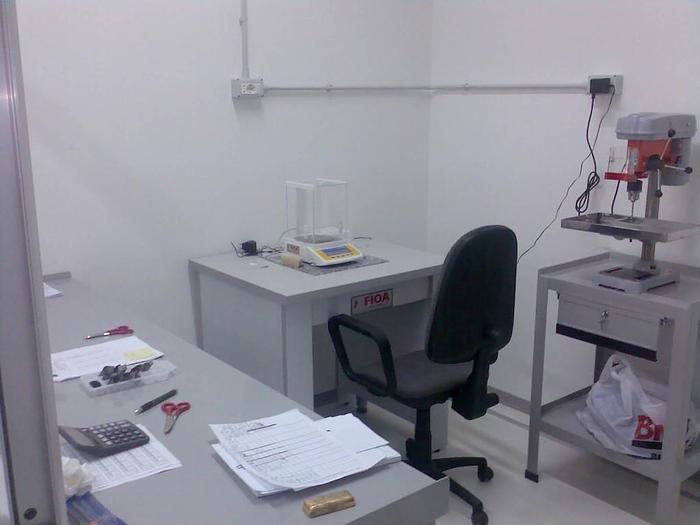

COLUMN DRILLING PRESS TYPE KI FOR ASSAY SAMPLE DETACHING
ON/OFF SWITCH, PULLEY SYSTEM COVER, SCREW.
SLIDE ROD SCREW, SLIDE ROD.
PILLAR LOCKING HANDLE,TABLE LOCKING NUT.
CHUCK,COLLAR,SAFETY GUARD, LIFT HANDLE.
DRILL LIFT, DEPTH STOP.
S/STEEL BOX TO RECOVERY THE ASSAY DETACHMENT DURING THE DRILLING OPERATION
MAINS VOLTAGE V 230
MAINS FREQUENCY HZ 50
NO LOAD SPEED MIN- 600 – 2,500
CHUCK CAPACITY mm 13
PRICED FOR €340,00 Euros

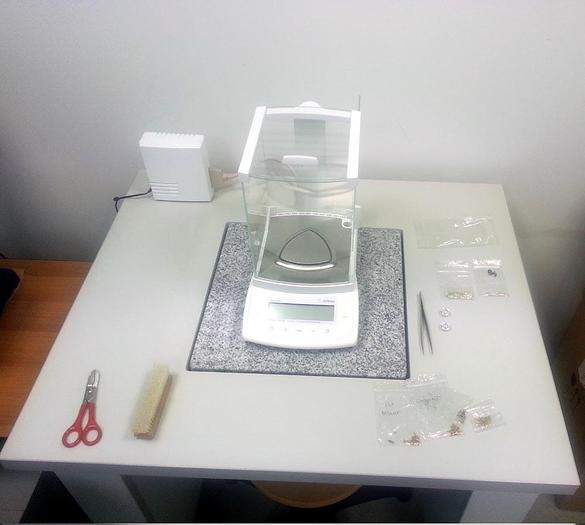

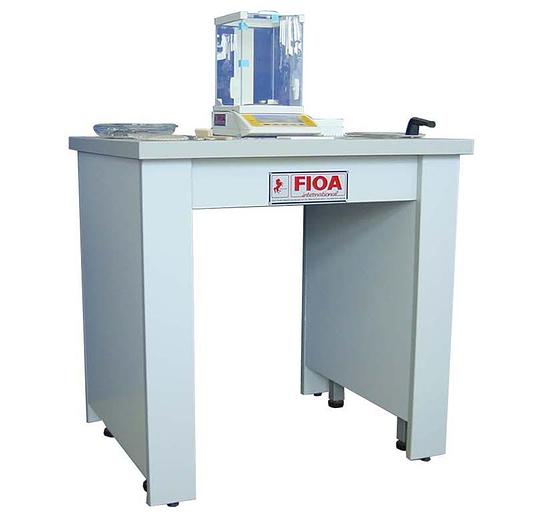

VIBRATION DUMPING TABLE FOR ELECTRONIC SCALES
COMPLETE WITH MARBLE PLANE STANDING OVER SPECIAL
RUBBER SMALL BLOCKS.
PRICED FOR €920,00 Euros

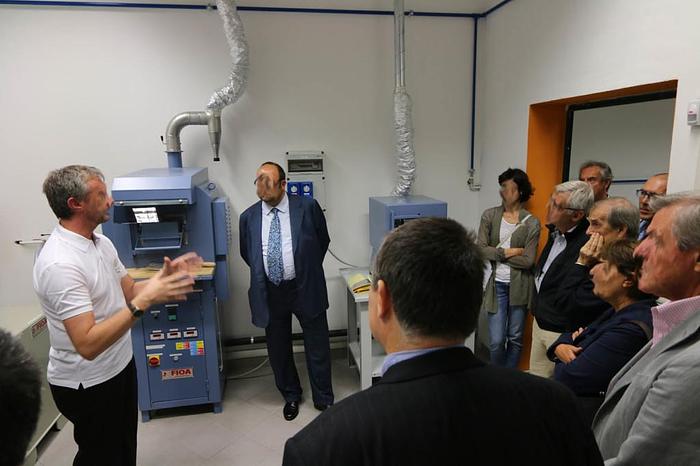

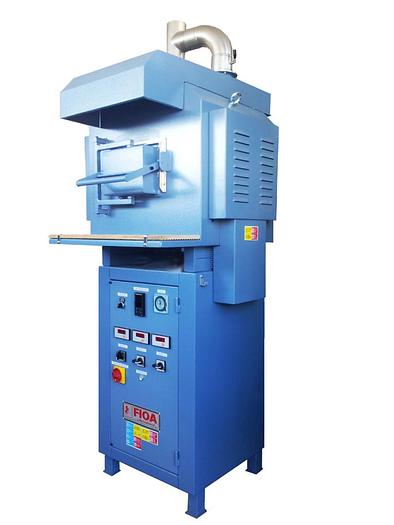

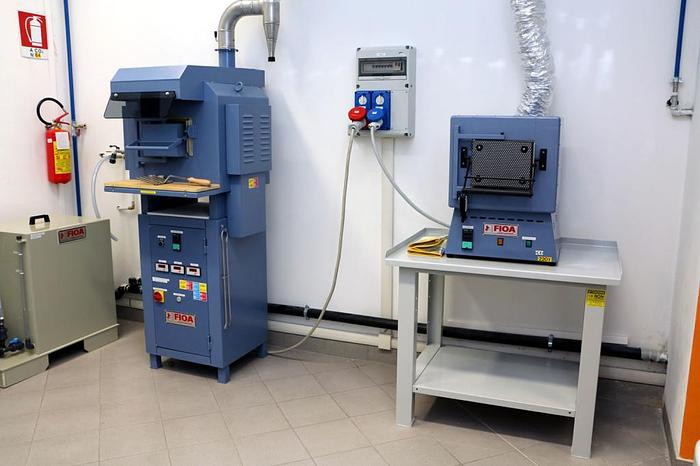

ELECTRICAL CUPPELLATION FURNACE
TECHNICAL FEATURES:
3 COMMUTATORS EACH ONE TO CONTROL 2 SILITE RODS POWER SUPPLY.
3 AMPEROMETERS EACH ONE TO CONTROL 2 SILITE RODS POWER CONSUMPTION.
1 CARBORUNDUM MUFFLE, INTERNAL SIZE 170x225x105h mm
6 SILITE RODS.
1 AUTOMATIC SYSTEM TO MAINTAIN THE T°DURING THE NIGHT.
FUMES DISCHARGE PLACED IN THE REAR SIDE OF THE FURNACE.
IRON FUMES EXIT PIPE COMPLETE WITH MANUAL DISCHARGE SYSTEM TO REMOVE THE LEAD RESIDUALS PRODUCED IN THE PROCESS
FUMES SUCTION HOOD PLACED IN THE FRONT AND REAR SIDE OF THE FURNACE.
FURNACE BASAMENT 1000h mm WHICH CONTAINS ALL THE ELECTRICAL COMPONENTS. DIGITAL THERMOREGULATOR WITH N°2 SET POINTS
WEEKLY PROGRAMMABLE TIMER.
1 REFRACTORY PLATE 16×22,5x10h mm (APPROX 6×9″)
LONG THONGS FOR CUPELS.
PRICED FOR €12.650,00 Euros

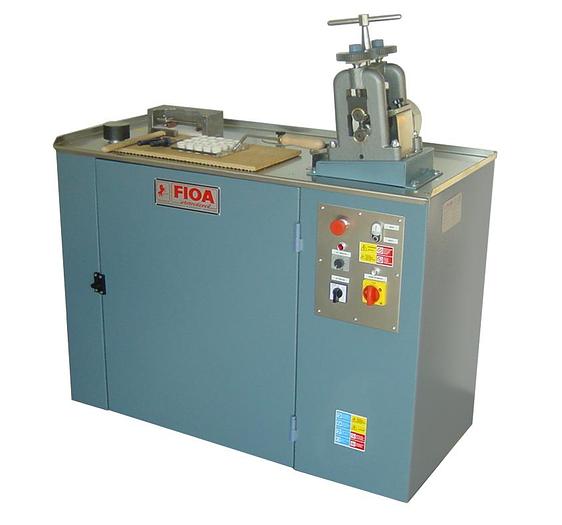

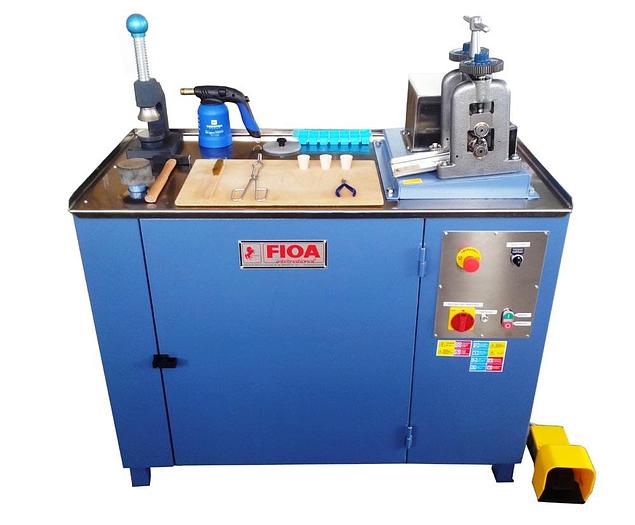

WORKING BENCH FOR ASSAYS COMPLETE WITH MOTORISED ROLLING MILL AND ANNEALING PLATE
MOTORIZED ROLLING MILL FOR PLATE.
DEVICE TO PUSH THE SAMPLE THROUGH THE ROLLS.
S/STEEL PLANE FOR HAMMERING THE SAMPLE.
REFRACTORY PLATE FOR ANNEALING THE SAMPLE.
GAS TORCH FOR ANNEALING THE SAMPLE.
USED CUPELS DISCHARGING HOLE.
MAIN SWITCH BOARD.
SAFETY BUTTON TO STOP THE ROLLING MILL.
PEDAL TO RUN THE ROLLING MILL
PRICED FOR €5.700,00 Euros

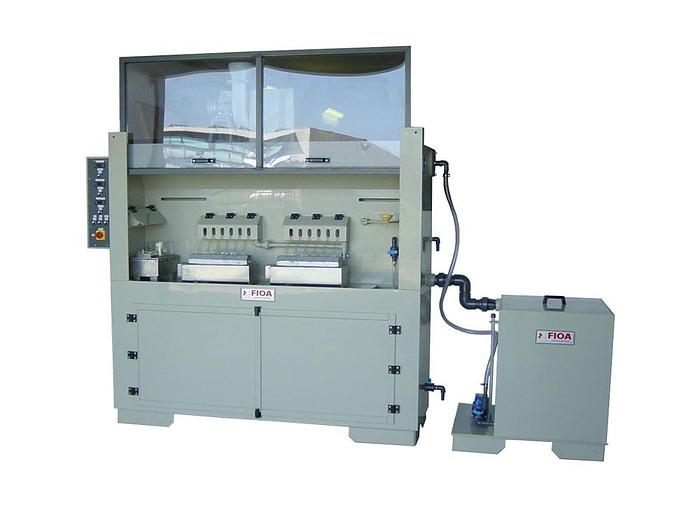

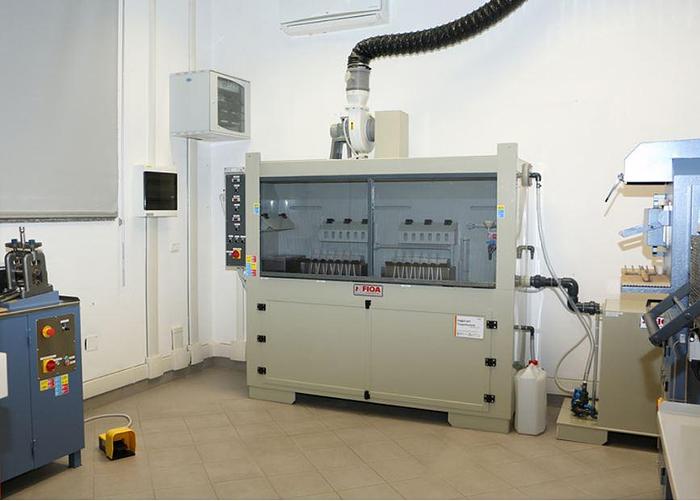

12 POSITIONS CHEMICAL PARTING HOOD FOR PRECIOUS METALS ASSAY COMPLETE WITH FUMES WASHING SYSTEM
2 SIX POSITION HEATERS 1,3 Kw EACH FOR KJELDAL FLASKS.
2 SUCTION BOXES WITH 6 HOLES EACH ABOVE THE KJEDHAL FLASKS HEATERS.
WASHING SYSTEM FOR ACID FUMES POSITIONED IN THE REAR PANNEL OF THE HOOD WITH ACID PROOF SPRAYERS
12 KJELDHAL FLASKS 100 cc EACH.
2 NARROW NECK BEAKERS 500 cc EACH.
1 FUNNEL FOR ACID LOADING.
1 PINCER FOR KJELDHAL FLASKS.
1 MANUAL TIMER.
SUCTION FAN WITH BUTTERFLY VALVE FOR FUMES.
WORKING PLANE 1500x500mm WITH BASIN.
BASIN DISCHARGE SYSTEM COMPLETE WITH BY-PASS VALVES FOR EXTERNAL DISCHARGE INTO RECOVERY TANK OR DIRECTLY IN THE EMERGENCY TANK OF THE HOOD.
EMERGENCY TANK TO RECOVERY EXHAUSTED SOLUTION (AgNO3) PLACED UNDER THE BASIN.
BASEMENT WITH DRAWERS AND FRONT PANNEL
MAIN SWITCHBOARD TO CONTROL ALL FUNCTIONS.
PRICED FOR €9.700,00 Euros
RECYCLING TANK FOR WASHING FUMES COMING FROM THE ASSAY HOOD
TANK MADE OF PP WITH 10 mm THICKNESS.
INTERNAL REINFORCEMENT.
1 MAGNETIC PUMP.
1 LEVEL
EXTRACTABLE COVER COMPLETE WITH HANDLE.
PRICED FOR €1.500,00 Euros

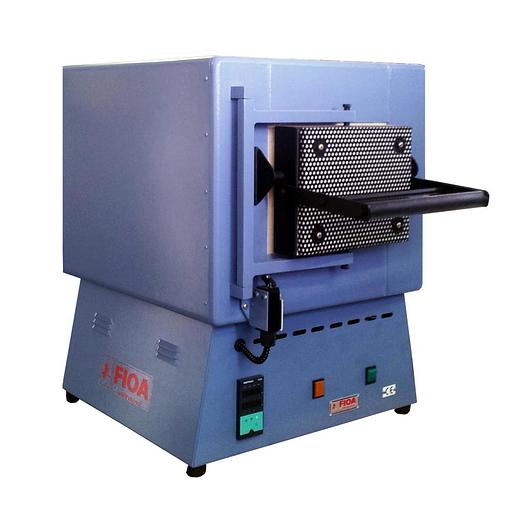

SMALL ELECTRICAL FURNACE FOR ANNEALING GOLD SAMPLE IN 33×33 CRUCIBLE
HETING BY MEANS OF HIGH QUALITY KANTHAL ELEMENTS.
THERMOCOUPLE AND THERMOREGULATOR.
PRICED FOR €2.400,00 Euros
FUMES WASHING TOWER Ø 600 mm. FOR WASHING ACID EMISSIONS FROM PRECIOUS METALS CHEMICAL PROCESSES
1 BASAMENT USED AS RECYCLING TANK.
1 FUMES WASHING SECTION FILLED OF SPECIAL RINGS.
1 MAIN SWITCHBOARD
PRICED FOR €6.700,00 Euros
Total Lab Price € 39.910,00
Plus Packing, Crating and Loading Container
Listed price subject to manufacturers price increases without notice.
Specifications
Condition | Used |
NUMBER OF DRILLING SPEEDS | 5 |
PILLAR HEIGHT mm 580ABSORBED POWER | 350 Watt |
OVERALL DIMENSIONS | 700x1500x2800h mm. |
DIMENSIONS | 900x750x900h mm |
WORKING T | 1250 C |
TOTAL ABSORBED POWER | 0.8 Kw. APPROX. |
1 HEATER FOR NARROW NECK BEAKERS | 1,5 Kw |
ACID-PROOF LIGHTNING | 100 Watt. |
VARIOUS CONNECTIONS LIKE | BALL VALVE,ELBOWS, COUPLINGS, NIPLES, TEE ETC. |
ABSORBED POWER | 0,25 Kw |
MAX. TEMPERATURE | 1100°C. |
MUFFLE DIMENSIONS | 210x320x145h mm |
POWER SUPPLY | 220 V – SINGLEPHASE |
1 RECYCLING PUMP | 0,25 Kw.2750/3350 rpm |
1 SUCTION FAN | 0,55 Kw – 2700 rpm. |
