Silver Refining by Electrolysis Process

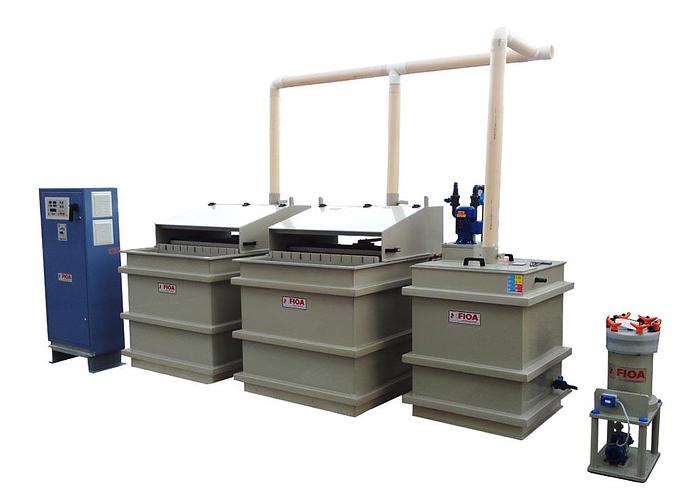

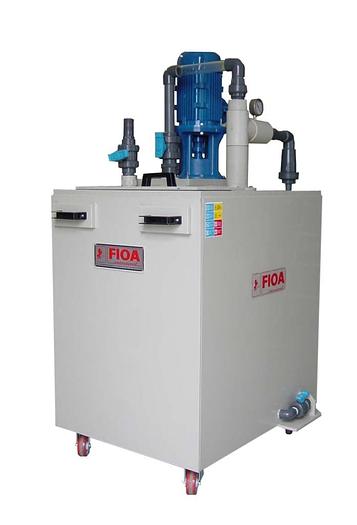

ELECTROLYTIC SILVER REFINING TANK TYPE FIOA MADE OF P.P., COMPLETE WITH SPECIAL IMMERSED SCRAPING COMBS SYSTEM. Complete System Consisting of: 5 anodic bars made of titanium with central slot   for baskets insertion. 5 high conductivity titanium baskets that also   prevent ag anodes falling. 5 pp bags to cover the titnium baskets in order   to contain the silver sludge produced during the   electrolysis.(the sludges may contain au,pt,pd) 6 cathodic plates welded to relevant cathode bar. Total cathodic area = 1 sqm approx. 11 contacts for anodic & cathodic bars. 2 flat copper bars to connect anodic / cathodic   contacts. 1 motorised immersed scraping combs system   positioned between anodes and athodes. Combs gear motor = 0,12 hp. Protection cover with outlet for the suction of  fumes. RECYCLING TANK MADE OF PP FOR SILVER REFINING SOLUTION AND COMPLETE WITH IMMERSED PROPELLER PUMP volume = 500 lts. approx double reinforcements on the tank recycling pump type 7/10 with immersed impeller 1000h mm. inlet and outlet of the solution are placed in the middle of rear wall in order to allow the positioning of this tank either on left or right side of the silver refining tanks. main switchboard STABILIZED POWER CURRENT RECTIFIER 1500 AMP air cooling system WHEELED VACUUM FILTERING UNIT MADE OF PP USED TO FILTER SOLUTIONS COMING FROM PRECIOUS METALS REFINING PROCESS OR FROM OTHER SOURCE TYPE BP630 COMPLETE WITH MAGNETIC PROPELLER PUMP. buchner filter internal ø 616 mm, height 200mm, preconfigured for paper filter ø 600mm. extractable meraklon cloth bag. cover for buchner filter complete with clamps and inlet solution tube 16 s/steel clamps. funnel under the buchner filter transparent level check with top decompressionvalve. p.p. flange rotating wheels safety valve for vacuum magnetic propeller pump complete with by-pass STANDARD HOT AIR DRYING AND WASHING CENTRIFUGE MADE OF S/STEEL AISI 316 autocentering stainless steel basket ø 350 mm. 1 acid proof filter bag for the basket 1 s/steel cover with funnel for introducing washing water. 1 s/steel cover with heating complete withblowing fan for drying. 1 heating resistance 1 main switchboard with all controls 1 motor 1,0 hp HIGH POWER WATER JET VACUUM PUMP TYPE “FIOA INT.”FOR CHEMICAL PLANTS AND REFINING PLANTS THAT WORKS UNDER VACUUM. THERMOSTATIC STOVE DRYER T5510 FOR DRYING GOLD AND SILVER GRAINS, CRISTALS AND JEWELLERY ITEMS WITH N°10 EXTRCTABLE PLANES 50x50cm AND N°6 EXTRACTABLE PYREX CONTAINERS. UNIT FOR WASHING ACID FUMES PRODUCED DURING REFINING AND HOLLOWING PROCESSES TYPE FIOA/1T 1000 2 POSITIONS HAND-WASH BASIN MADE OF P.P.8 mm WITH FORCED FILTRATION SYSTEM. Pricing Starting at 84.000,00 Euros Ex-Factory, Italy
