Gold Potassium Cyanide (GPC) Production Plant

Gold Potassium Cyanide (GPC) Production Plant

Contact us for price

Location:Pawtucket, RI

orCall 1-800-619-GOLD

Description

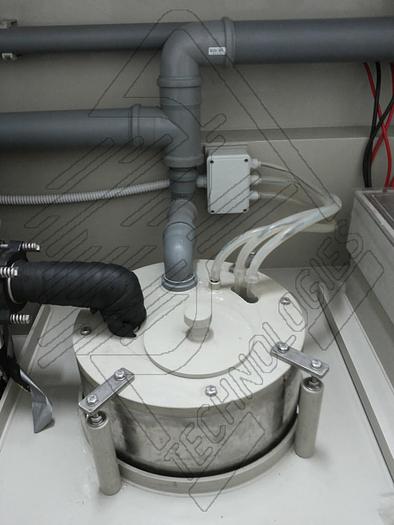

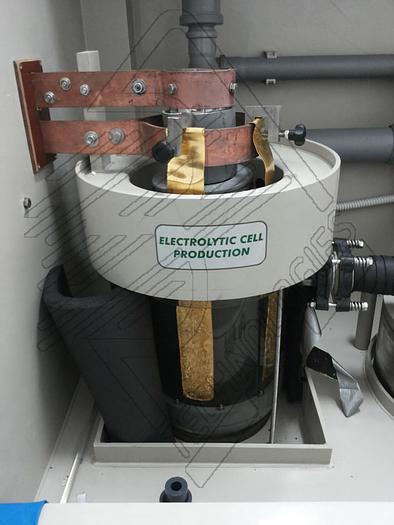

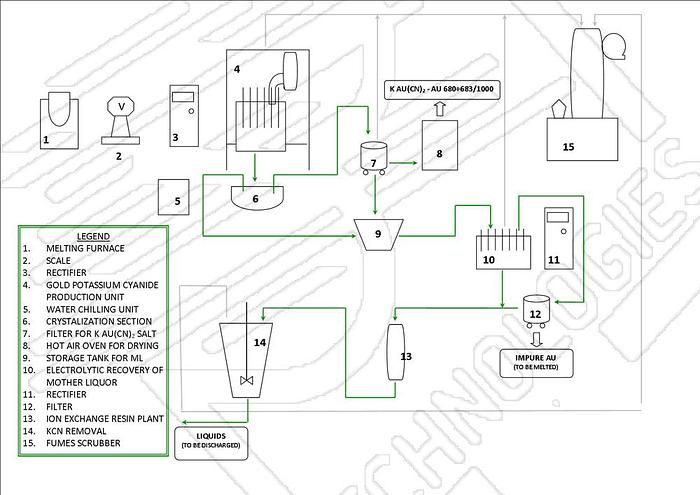

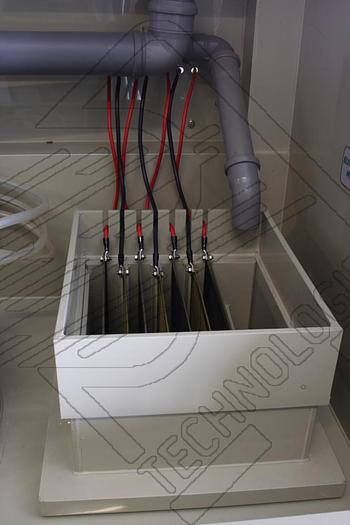

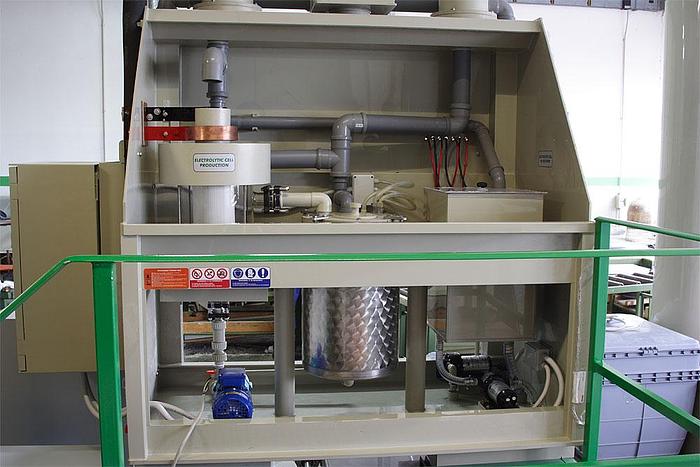

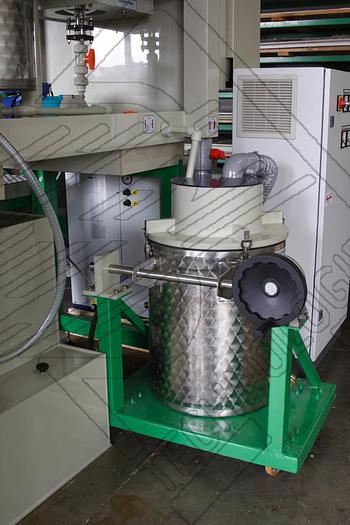

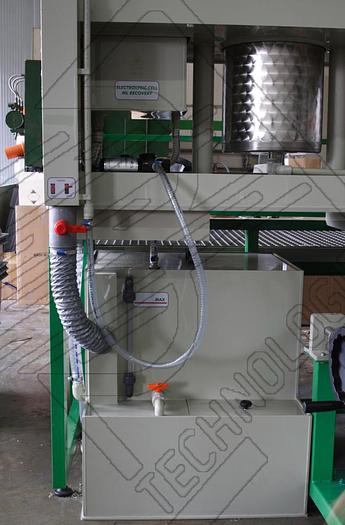

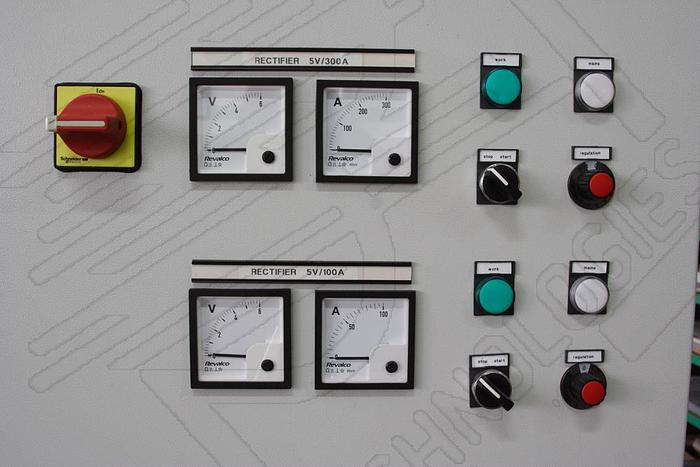

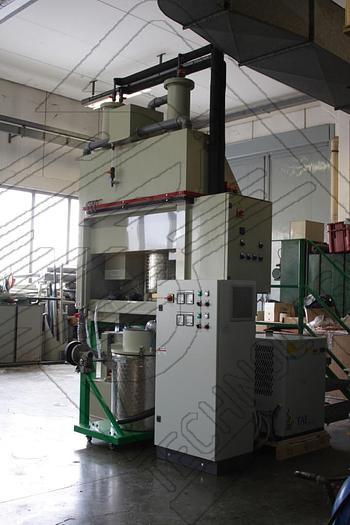

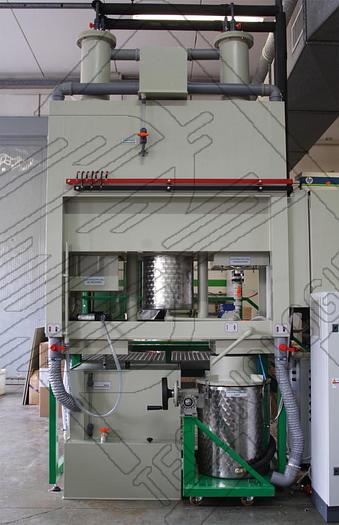

Our plants are designed for the production of high quality Gold potassium cyanide (GPC) 68% K[Au(CN)2]. We realize plants of different capacity, according to customers’ request, from 3 kg to 10 kg per batch (the duration of a production cycle is about 8 hours). The plant is formed by a polypropylene structure, which houses: An electrolytic cell for gold dissolving and preparation of the gold potassium cyanide solution, connected to a rectifier A crystallization unit for the transformation of the gold potassium cyanide solution into salt, connected to a chiller unit An electrolytic cell used for the recovery of gold from the mother liquors, connected to a rectifier. It is advisable to install a suitable fume scrubber and an effluent treatment system in order to remove the KCN from the exhausted liquids. Ex-Factory, Italy

Specifications

ConditionUsed
